Product Code:
LA510D4
PUMP DRILL POWERED H/DUTY 40-50LPM
PUMPS 28PSI AT GROUND LEVEL, 3000RPM
MAX SPEED LOAD, UP TO 2M LIFT HEIGHT
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

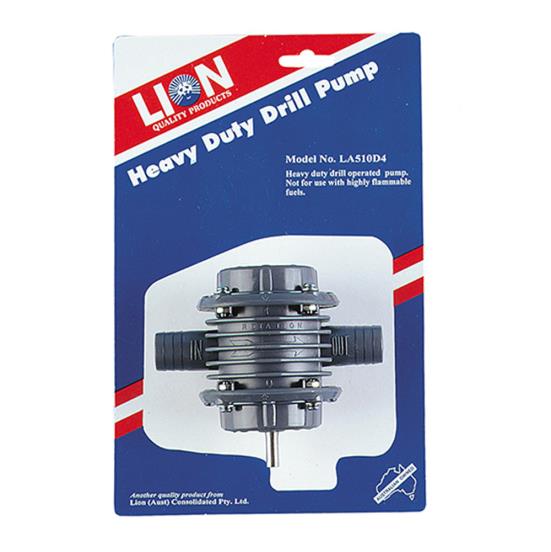

HEAVY DUTY DRILL PUMP
DESCRIPTION
- HEAVY DUTY DRILL POWERED PUMP
- 40-50 L.P.M. NOT TO BE USED WITH HIGHLY FLAMMABLE LIQUIDS
- DELIVERY PRESSURE 28 PSI AT GROUND LEVEL
- 3000 RPM MAX. SPEED LOAD
- SELF PRIMING & PUMPING UP TO 2 METRES VERTICAL
- MAX. PUMPING 15 METRES VERTICAL
ON BOATS: PUMPING OUT BILGES, EMPTYING OIL FROM THE ENGINE, WASHING DOWN YOUR BOAT
ON CARS AND CARAVANS: DRAWING OFF WATER FROM TEH RADIATOR BEFORE ADDING ANTIFREEZE, TRANSFERRING WATER INTO STORAGE CONTAIN IN VAN
INSTRUCTIONS FOR USE: 2000 TO 3000 RPM MAXIMUM SPEED LOAD WITH A DRILL OF AT LEAST 350W RATING. IF YOU DO NOT HAVE A HORIZONTAL DRILL SUPPORT, YOU MAY USE A SMALL BOARD TO SUPPORT THE PUMP/DRILL UNIT. LINE UP THE DRILL AND THE PUMP AND FIX THE PUMP ON THE DRILL SIDE WITH THE SUPPLIED STRAP, TIGHTENING IT MODERATELY ONLY IN ORDER TO PERMIT SLIGHT ROCKING. PLACE THE HANDLE OF THE DRILL ON THE LEFT SO THAT THE TORQUE HOLDS IT ON THE BOARD. ENSURE THAT ANY COOLING OPENINGS ARE CLEAR.
NOTE: THE GREATER THE INLET OR DELIVERY HEIGHTS, THE MORE POWERFUL THE DRILL MUST BE - REQUIRES 3000 RPM DRILL
HOSE DIAMETER REQUIRED: 20MM (5/8") INTERNAL
INLET HOSE: CONNECT TO SIDE MARKED "IN" RIGID OR SEMI RIGID PIPE, MAXIMUM LENGTH 3 METRES (10 FEET)
SUPPLY HOSE: CONNECT TO SIDE MARKED "OUT". FLEXIBLE HOSE MAY BE USED. FIX THE FILTER ONTO THE END OF THE INLET HOSE, SECURING IT WITH A JUBILEE CLIP. INLET AND SUPPLY HOSES SHOULD BE SIMILARLY SECURED TO THE PUMP WITH CLIPS. FIX OR WEIGH THE FILTER BELOW THE SURFACE OF THE LIQUID TO BE PUMPED. SEVERE BENDS OR KINKS IN THE INLET AND SUPPLY PIPES SHOULD BE AVOIDED
SELF PRIMING: FOR PRIMING, ON START UP, THE PUMP SHOULD BE AS CLOSE AS POSSIBLE TO THE LIQUID. WHEN PUMPING, THE PUMP MAY BE RAISED (BUT NO MORE THAN 2 METRES ABOVE THE SURFACE OF THE LIQUID)

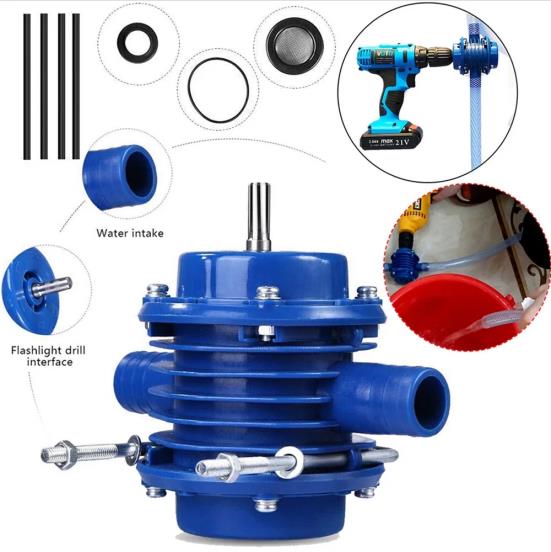

CONTENTS: PUMP, MOUNTING BRACKET WITH PLASTIC STRAP, FILTER, 4 BLADED ROTOR WITH REVERSED NYLON TIP PIECES. PUMP BODY IN CORROSION, HEAT AND WEAR RESISTANT RESIN PLASTIC. SPINDLE (6MM DIAMETER) AND INTERNAL DISCS IN STAINLESS STEEL

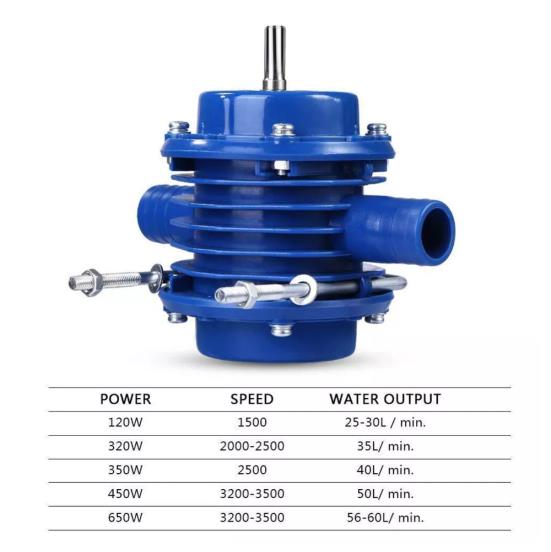

PERFORMANCE: DELIVERY RATE - WITHOUT THE INLET FILTER, DELIVERY AROUND 40-50 LITRES/MIN. WITH THE FILTER IN USE, DELIVERY RATE WILL BE SLIGHTLY REDUCED
DELIVERY PRESSURE: AROUND 2KG/CM (28PSI) AT GROUND LEVEL. (NOTE: THESE PERFORMANCE FIGURES WILL VARY ACCORDING TO THE POWER AND OPERATING SPEED OF THE DRILL)
MAXIMUM INLET HEAD: UP TO 2 METRES VERTICALLY ABOVE SURFACE OF LIQUID TO BE PUMPED
MAXIMUM PUMPING HEAD (OUTLET): UP TO 15 METRES VERTICALLY ABOVE PUMP, WHEN PUMPING WATER
MAINTENANCE: IF THE NYLON ROTOR BLADE TIPS BECOME WORN, THEY MAY BE REVERSED TO EXPOSE THE UNWORN SURFACE
THE PUMP MAY BE USED WITH THE FOLLOWING LIQUIDS: FRESH WATER, SEA WATER, ORGANIC SOLVENTS, MOTOR OIL, HEATING OIL. INSECTICIDES, LIQUID FERTILISERS
NEVER USE WITH CONCENTRATED ACIDS OR VOLATILE, FLAMMABLE LIQUIDS SUCH AS PETROL, NOR WITH LIQUIDS WHICH LEAVE RESIDUE OR SOLIDIFY ON DRYING
AFTER USE THE PUMP SHOULD BE CLEANED BY PUMPING THROUGH WATER WITH A LITTLE DETERGENT ADDED. THEN FOLLOW BY CLEAN WATER TO RINSE
|
