Product Code:
BS-4A
BANDSAW METAL ON STAND 45% CUT 1/2HP.
150 X 100MM (W X H) RECTANGULAR CAPACITY
BLADE SIZE:1645 X 12.7 X 0.65 P/N B200
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

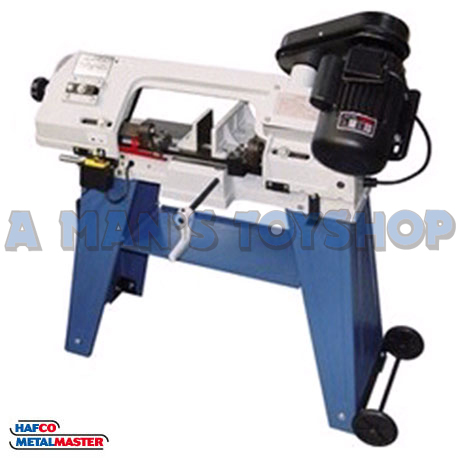

BS-4A METAL CUTTING BAND SAW (240V)
NOTE: RETRO FIT A HANDY OIL BOTTLE TO YOUR SAW WITH PART NO (P220)
1 LITRE BOTTLE HAS A FLEX FEED HOSE,MOUNTING BRACKETS & A ON/OFF TAP.
THE BS-4A IS AN ECONOMICALLY PRICED METAL CUTTING BAND SAW WITH A ROBUST FOUR-LEGGED STAND CROSS BRACED WITH A UNDER TRAY AND BUILT-IN MITRE CUTTING CAPABILITY. THE BALL BEARING GUIDED BLADE CAN BE DRIVEN AT A CHOICE OF THREE SPEEDS VIA A REDUCTION GEARBOX, DEPENDING ON THE TYPE OF MATERIAL BEING CUT AND THERE IS AN AUTOMATIC CUT-OFF, ADJUSTABLE FOR HEIGHT, FOR STOPPING THE MOTOR WHEN THE CUT IS COMPLETE.
ONE NOTABLE FEATURE ON THIS SAW ARE THE REAR MOUNTED WHEELS ON THE STAND ALLOWING IT TO BE PORTABLE, IDEAL FOR MAINTENANCE SHOPS, LIGHT STEEL FABRICATIONS, AND ENGINEERING WORKSHOPS. A WELL PRICED AND VERY EFFECTIVE MACHINE FOR CUTTING STEEL BARS, ANGLES, CHANNELS, TUBES AND SO ON.
FEATURES:
> 150 X 100MM (W X H) RECTANGULAR CAPACITY
> IDEAL FOR CUTTING TUBE, PIPE, SOLID STEEL, NON-FERROUS AND WOOD
> ADJUSTABLE SPRING TENSION SCREW REGULATING CUTTING FEED RATE
> FULLY-ADJUSTABLE BLADE ROLLER FOR ACCURATE AND STRAIGHT CUTTING
> ADJUSTABLE LENGTH STOP FOR REPETITION CUTTING
> 3-SPEED PULLEY DRIVE SYSTEM
> AUTOMATIC ELECTRIC CUT-OUT SWITCH
> VERTICAL CUTTING TABLE INCLUDED
> PORTABLE - ON WHEELS FOR SITE WORK
> CUTS TO 45º DEGREES IN MITRE VICE
> SEALED WORM AND PINION GEARBOX DRIVE
SPECIFICATIONS:
CUTTING HEAD BEAM: MANUAL
OPERATION TYPE: FIXED
ROUND 90º: 100MM
ROUND 45º: 72MM
ROUND 60º: ~
SQUARE 90º: 100MM
SQUARE 45º: 72MM
SQUARE 60º: ~
RECTANGLE (W X H) 90º: 150 X 100MM
RECTANGLE (W X H) 45º: 100 X 72MM
RECTANGLE (W X H) 60º: ~
CUTTING BEAM RETURN: MANUAL
VICE CLAMPING FIXTURE: MANUAL
BUNDLE CUTTING FIXTURE: ~
COOLANT SYSTEM: ~
TABLE WORKING HEIGHT: 620MM
BLADE STEPS / SPEEDS: 20-29-50 M/MIN
BLADE SIZE (LXWXT): 1645 X 12.7 X 0.65MM
MOTOR POWER: 0.375KW / 1/2HP
VOLTAGE: 240V
|
