Product Code:
YC70932

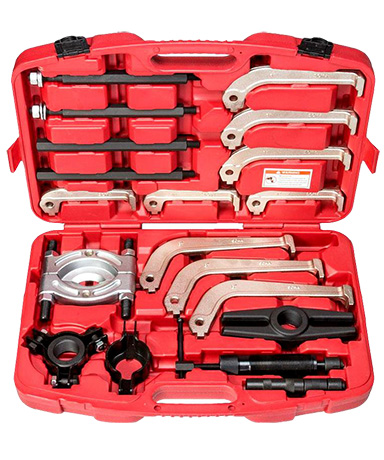

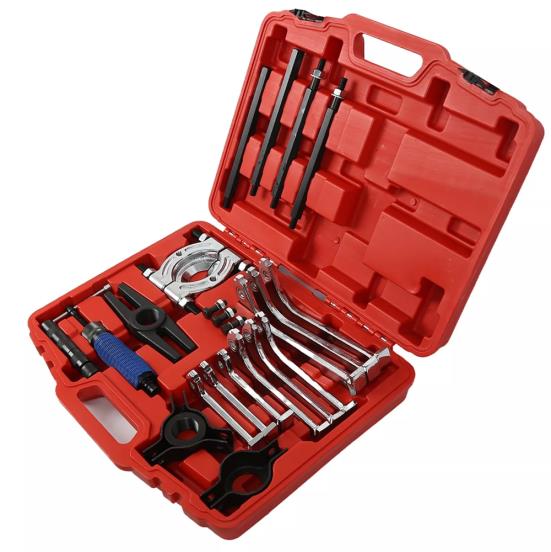

PULLER KIT 10 TON RAM 4-6-8"ARMS 2 & 3
JAW PULLER & BEARING SEPARATOR COMBO &
EXTENSION BARS WITH BEARING VICE KIT.
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
FAMOUS TOOLTEC BRAND LIFETIME WARRANTY
NOTE: THREAD MUST BE GREASED BEFOR USE
NOTE !!!!! THE 10 TON RAM IN THIS KIT WILL ONLY TRAVEL 12MM !!!! NO MORE OK
- THE PURPOSE OF THIS RAM IS ONLY TO CRACK THE TENSION OR PULL THE PULLEY FORWARD SO IT WILL
LOOSEN THE TENSION THAT'S HOLDING IT TO THE SHAFT. ONCE THE TENSION IS BROKEN YOU ARE BEST OFF REMOVING THE RAM OR RESET THE RAM BACK TO THE START AND PACK IT WITH APPROPRIATE PACKING. IF YOU HAVE TO REMOVE THE ITEM YOU ARE PULLING ALONG AN EXTENDED SHAFT WITH ONLY 3 OR 4 TON RESISTANT YOU ARE BEST OFF USING THE PULLER ACCESSORY - PART NUMBER YC7088 WHICH IS AN EXTENDED THREAD IDEAL FOR THIS PURPOSE. HOPE THE ABOVE INFORMATION IS HELPFUL.
INCLUDES 10 TON HYDRAULIC RAM. THIS THREE FUNCTION PULLER SET IS SUITABLE FOR MANY PULLING APPLICATIONS. THE TWIN HEAD, TRIPLE HEAD AND CROSS BEAM USED WITH THR THREE SETS OF FORGED PULLING LEGS AND THE EXTENSION RODS USED WITH THE BEARING SEPARATOR OFFER COMPLETE VERSATILITY FOR PULLING AND PUSH PULLING MAINTENANCE OPERATIONS.
- SPARE RAM USE PART NUMBER YC8000
- REPAIR KIT NO YC8000R WITH BRASS CUPS
- KIT CONSISTS OF ONE 10 TONNE RAM, THREE EXTENSIONS, 3 8" LEGS, 3 6" LEGS, 3 4" LEGS, 2 YOKES 2 AND 3 LEG, 1 BEARING
SEPERATOR 75mm TO 105mm, 1 BEAM, 2 RODS, 2 ENTENSIONS PAIRS, AND COMES COMPLETE WITH A ROBUST BLOW MOLD CARRY CASE.
- DO NOT TURN RAM SCREW IN MORE THAN 25mm FROM TOP OF RAM OR OUT MORE THAN 80mm FROM RAM TOP.
- 10 TONNE HYDRAULIC PULLER KIT
- USE YC7088 TO CONVERT TO A MANUAL PULLER
- USE YCL200 TO CONVERT TO A STRIKING STEEL RAM WITH 12MM TRAVEL HAMMER SIZE UP TO 12 LBS SLEDGE
- REPAIR KIT FOR HYDRAULIC RAM YC8000R THIS KIT HAS BRASS REPLACEMENT SEALS FOR THE SMALL AND LARGE SEALS
- THIS STOPS THE SCREW FROM SCREWING INTO THE SMALL SEAL WHEN IT IS SCREWED DOWN TO FAR
|
