Product Code:
WIUT1600

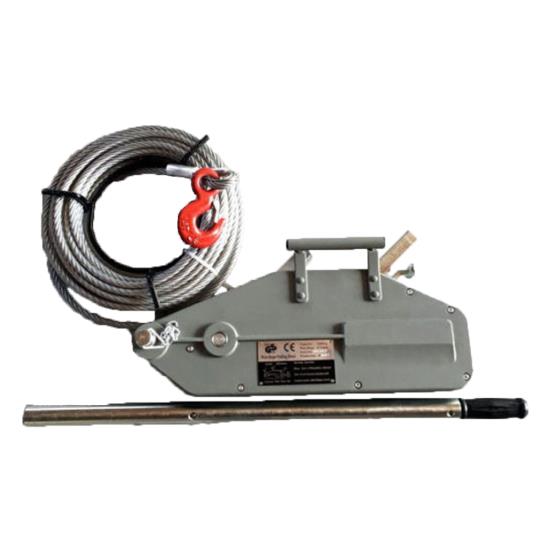

WIRE ROPE TIRFOR WINCH 1.6 TON 20 METRE
WIRE ROPE CAPACITY IS 1.6 TON HAS SHEAR
PIN ALL PARTS AVAILABLE - TITAN BRAND
|
|
|
|
|
|
|
 |
|
|
|
WINCH - TIRFOR
MECHANICALLY OPERTED WINCH ALSO KNOWN AS TIRFOR WINCHES OR WIRE ROPE WINCHES, THEY UTILISE WIRE ROPE OR CABLE FOR NUMDROUS PULLING AND LIFTING APPLICATIONS. PORTABLE, DURABLE AND STRONG. TIRFOR PULLING AND LIFTING WINCHES FEATURE MECHANICAL OVERLOAD PROTECTION. TIRFOR IS NOW A COMMONLY USED WORD BUT ACTUALLY REFER TO THE TRACTEL BRAND, "TIRFOR WINCH" IS ACTUALLY A PRODUCT LINE OF WINCH MANUFACTURED BY TRACTEL. THESE TIRFOR WINCHES ARE ALSO POPULAR IN THE POWER UTILITIES FOR LINE STRINGING (SECURING STRINGING MACHINERY TO CONCRETE ANCHOR BLOCKS/COUNTERWEIGHTS DURING CONDUCTOR STRINGING OPERATIONS).
ALTERNATE TRMINOLOGY - MECHANICAL CABLE WINCH, TIRFOR WINCH, WIRE ROPE WINCH.
RATED LIFTING CAPACITY - 1600KG
PULLING CAPACITY - 2500KG
ROPE ADVANCE PER FULL STROKE CYCLE - 60MM
EFFORT ON HANDLE AT RATED LIFTING CAPACITY; FORWARD OPERATION - 412KN
DIAMETER OF WIRE ROPE - 11MM
STANDARD WIRE ROPE LENGTH - 20M
FACTOR OF SAFETY OF WIRE ROPE - 5
NETT WEIGHT OF WIRE ROPE AND REEL - 12.0KG
NETT WEIGHT WITHOUT WIRE ROPE - 13KG
LIGHWEIGHT, SAFET AND EASY TO OPERATE.
COMPACT, HIGH STRENGTH ALUMINIUM ALLOY HOUSING WITH SMOOTH CONTOUR DESIGN, A LARGE FLAT BASE SURFACE FOR INCREASED STABILITY IN HJORIZONTAL AND VERTICAL WORKING POSITIONS.
AN OVERLOAD PORTECTION SYSTEM IS UILT-IN WITH A SHEARING PIN IN THE FORWARD LEVER WHICH WILL SHEAR WHEN APPROXIMATELY 25% OVERLOADED. THE BROKEN PINS CAN BE REPLACED WITHOUT REMOVING THE LOAD. SPARE PINS ARE LOCATED IN THE OPERATING LEVER FOR RVBH08 AND IN THE HANDLE FOR RVBH16 AND RVBH32.
FORWARD AND REVERSE LEVER PLACED IN TANDEM, PROVIDING A SLIM COMPACT DESIGN FOR STORAGE AND ENSURING MAXIUMUM POWER TRANSFER.
THE ROPE CLAMP SYSTEM IS EAQSILY DISENGAGED WITH A LEVER, ALLOWING SMOOTH INSTALLATION OF THE WIRE ROPE.
THE BIG HAUL CREEPER WINCH COMES COMPLETE WITH OPERATING LEVER AND 20M OF WIRE ROPE MOUNTED ON A REEL FOR ALL MODELS. THE WIRE ROPE IS FITTED WITH A SAFETY LATCH HOOK AT ONE END AND IS TAPERED AT THE OTHER END FOR EASY ACCESS INTO THE UNIT.
THE BIG HAUL CREEPER WINCH HAS A PARALLEL CLAMPING SYSTEM, WHICH HAS A LARGE SURFACE CONTACT AREA, PROVIDING AN EVENLY DISTRIBUTED GRIP AT A LOWER FORCE THAT RESULTS IN LESS ROPE WEAR. THE SYSTEM OFFERS A LONGER ROPE ADVANCE AND REQUIRES LESS HANDLE PULLING EFFORT, THUS INCREASING OPERTOR EFFICIENCY.
ALL MODELS ARE EQUIPPED WITH AN ANCHOR BOLT THAT OFFERS NUMVEROUS CONNECTION POSSIBILITIES WITH LOAD HOOKS, WIRE ROPE AND CHAIN.
|
