Product Code:
PP.WS185LCD
W1008193 TIG MIG MULTI PROCESS KIT
INC HELMET, WELDING GLOVES, MIG PLIERS
5KG .8MM SOLID WIRE-MIG TIG & STICK
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

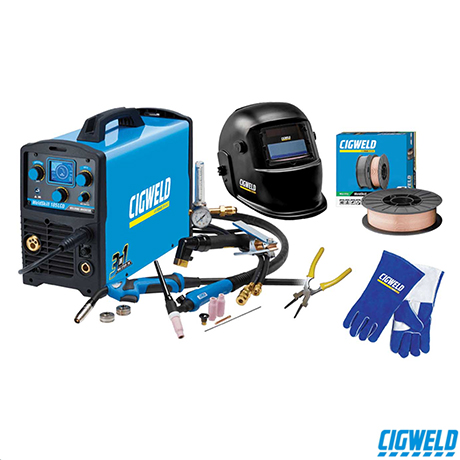

CIGWELD PP.WS185LCD - WELDSKILL 185LCD MULTI PROCESS MIG/TIG/STICK INVERTER WELDER POWER PACK
THE WELDSKILL 185LCD IS A COMPLETE 3IN1 OFFER THAT INCLUDES ALL THE ACCESSORIES REQUIRED TO GET YOU MIG, STICK AND TIG WELDING IMMEDIATELY (3M MIG TORCH, 4M TIG TORCH, 3M ELECTRODE HOLDER, EARTH CLAMP & LEAD, FITTED GAS HOSE & ARGON REGULATOR WITH GAS FLOW METER INCLUDED).
INCLUDES:
- WELDSKILL 185 LCD 3-IN-1 INVERTER - W1008193
- WELDSKILL BLACK ESSENTIAL AUTO-DARKENING WELDING HELMET - 454337
- LARGE HEAVY DUTY WELDING GLOVES - 646755
- TWECO WELDSKILL MIG PLIERS - WSPLIER
- WELDSKILL SOLID WIRE 0.8MM 5.0KG = 1 HANDISPOOL - WS5008
CIGWELD W1008193 WELDSKILL 185LCD MULTI PROCESS MIG/TIG/STICK WELDING INVERTER FEATURES:
- PLUG AND PLAY, SUITABLE FOR USE WITH ANY STANDARD 10AMP POWER POINT.
- 2.8 - FULL COLOUR LCD DISPLAY SCREEN WITH EASY NAVIGATION OF ALL FUNCTIONS.
- ADJUSTABLE BACKBURN CONTROL: ADJUST THE AMOUNT OF MIG WIRE THAT PROTRUDES FROM THE MIG TORCH AFTER THE COMPLETION OF MIG WELDING.
- ARC CONTROL (INDUCTANCE): THE ARC CONTROL OPERATES IN MIG (GMAW/FCAW) MODE ONLY AND IS USED TO ADJUST THE INTENSITY OF THE WELDING ARC
- SPOT WELD (MIG MODE): SPOT WELDING ALLOWS THE USER TO PRE-SET THE DURATION TIME OF THEIR WELDS UP TO 10 SECONDS (MIG MODE ONLY)
- DOWNSLOPE (TIG MODE): DOWN SLOPE ALLOWS THE USER TO PRE-SET THE TIME FOR THE WELD CURRENT TO RAMP DOWN (TIG MODE ONLY)
- HOT START IMPROVES THE ARC START CHARACTERISTICS OF STICK ELECTRODES
- ANTI STICK HELPS TO PREVENT THE STICK ELECTRODE FOR STICKING TO THE WORK SURFACE
SPECIFICATIONS:
- WELDER TYPE: MIG, STICK, LIFT TIG (INVERTER POWER SOURCE)
- NUMBER OF PHASES: SINGLE PHASE
- NOMINAL SUPPLY VOLTAGE: 240V +/-15%
- NOMINAL SUPPLY FREQUENCY: 50/60HZ
- NOMINAL DC OPEN CIRCUIT VOLTAGE (MIG WELD MODE): 69V (TRIGGER SWITCH DEPRESSED WHEN NOT WELDING)
- FACTORY FITTED SUPPLY PLUG RATING: 10AMPS
- OPEN CIRCUIT VOLTAGE (VRD ON) STICK WELD MODE: <35V
- EFFECTIVE INPUT CURRENT (L1EFF): 10AMPS
- MAXIMUM INPUT CURRENT (L1MAX): 33AMPS
- MINIMUM SINGLE PHASE GENERATOR: 10KVA AT 0.8PF
- PROTECTION CLASS: IP21S
- MIG (GMAW) WELDING OUTPUT (40ºC, 10MIN): 185A AT 10%, 23.3V
- STICK (MMAW) WELDING OUTPUT (40ºC, 10MIN): 160A AT 10%, 26.4V
- TIG (GTAW) WELDING OUTPUT (40ºC, 10MIN): 160A AT 20%, 16.4V
- STANDARDS:
- AS 60974.1-2020
- IEC 60974-1
- DIMENSIONS (L X W X H): 371MM X 205MM X 478MM
- WEIGHT: 13.9KG
|
