Product Code:
MB-V1.0
DIAGNOSE OBDII-16DLC FULL SYSTEM CHECK
LIVE DATE-BATTERY TEST-OIL RESET-PRINT
DATA-FULL SPEED UPGRADEVIA PC-ICARSOFT
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
DESCRIPTION

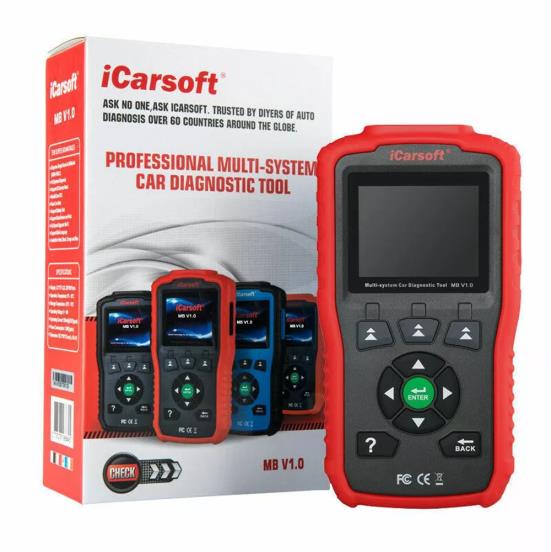

THE ICARSOFT MB V1.0 IS A MULTI SYSTEM SCAN TOOL FOR MERCEDES BENZ, SPRINTER AND SMART CARS.
OFFERING MULTI SYSTEM DIAGNOSTICS FOR ENGINE, ABS, SRS, TRANSMISSION AND MANY MORE ON YOUR MERCEDES BENZ, SPRINTER AND SMART VEHICLES WITH CANBUS, ISO9141, KWP2000, AND J1850 PROTOCOLS. IT ALSO ALLOWS TO PERFORM OIL SERVICE AND SAS RESET AND TEST BATTERY VOLTAGE.
SCAN TOOL MAIN FEATURES
- READS AND CLEARS TROUBLE CODES ON MOST OF THE SYSTEMS SUCH AS ENGINE, TRANSMISSION, ABS AND AIRBAG ETC.
- SUPPORT OBDII/EOBD TEN MODES OF OPERATION
- READ LIVE DATA
- OIL LIGHT/SERVICE RESET: SUPPORT SERVICE LAMP RESET.
- SAS: STEERING ANGLE SENSOR (SAS) CALIBRATION, CALIBRATES THE STEERING WHEEL TO STRAIGHT AHEAD, OR RECALIBRATE SAS WHILE STEERING PART REPLACEMENT.
- THE PRINT DATA FUNCTION ALLOWS YOU PRINTING OUT DIAGNOSTIC DATA RECORDED BY THE SCAN TOOL OR CUSTOMISED TEST REPORTS.
- BATTERY TEST ALLOWS YOU GETTING THE VOLTAGE OF BATTERY WITH OBD PORT BY THE SCAN TOOL WHEN THE ENGINE STARTS.
- DTC LIBRARY TO LOOKUP WHEN USER IS OPERATING THIS TOOL.
- UPGRADE VIA PC
- MULTI-LANGUAGE: ENGLISH, GERMAN, DUTCH, SPANISH, FRENCH
PACKAGE INCLUDES:
- MB V1.0 MAIN UNIT SCAN TOOL
- USER'S MANUAL
- MAIN OBD-II CABLE
- USB CABLE
- TF CARD
- NYLON CARRY CASE
SPECIFICATIONS:
DISPLAY: 2.8"TFT LCD, 320*240 PIXELS
OPERATION TEMPERATURE: 0°C ~ 50°C
STORAGE TEMPERATURE: -20°C ~ 70°C
OPERATING VOLTAGE: 9 ~ 18V
OPERATING CURRENT: 150MA@12V (TYPICAL)
POWER CONSUMPTION: 1.8W(TYPICAL)
DIMENSION: 187.5 X 101 X 32 MM (L X W X H)
|
