Product Code:
QBENP002
AIR/HYDRAULIC PIPE BENDER 1/2 -3" 16TON.
WITH AIR HYDRAULIC OR MANUAL.
16 TON JACK AIR PRESSURE 80 TO 120PSI.
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
16 TON, AIR HYDRAULIC & MANUAL PIPE BENDER SUITS 15 - 80MM PIPE
THIS AIR HYDRAULIC & MANUAL PIPE BENDER IS GREAT FOR BOTH BUSINESS AND HOME USE. IT HAS A CAPACITY OF 16 TON,
16 000KGS, AND COMES WITH MULTIPLE FORMER SIZES, IN MM, INCLUDING 15, 20, 25, 32, 40, 50,65 & 80MM
THE PIPE BENDER IS MADE OF CAST IRON AND COMES WITH 6 METRIC FORMERS, RANGING IN SIZE FROM 15MM TO 80MM.
THE BENDER CAN BE USED MANUALLY OR ATTACHED THROUGH A COMPRESSOR.
THIS UNIT IS ABLE TO BEND PIPES OF UP TO 3MM THICKNESS & A DIAMETER OF 50MM TO 90 DEGREES.
AIR HYDRAULIC PIPE BENDERS 16 TON SUPPLIED WITH 6 IMPERIAL FORMERS: ½" - 3" OR 8 METRIC FORMERS: 15MM-80MM
8 FORMERS.
BEND PIPES TO 80MM
SPECIFICATIONS:
FORMER SIZES: (1/2)15, (3/4)20, (1") 25, (1-1/4") 32, (1-1/2")40, (2")50, (2-1/2")65, (3")80MM
CAPACITY: 16 TON
DIMENSIONS: 640MM X 580MM X 250MM
WHAT IS INCLUDED IN SALE:

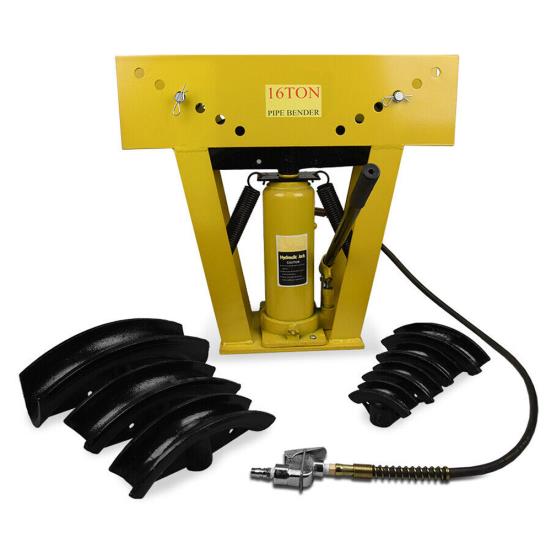

PIPE BENDER + 8 METRIC FORMERS
AIR PRESSURE 80 TO 120PSI
-69.5CM (LENGTH) X 61CM (WIDTH) X 29.5CM (HEIGHT)
***FOOT PUMP NOT INCLUDED***
|
