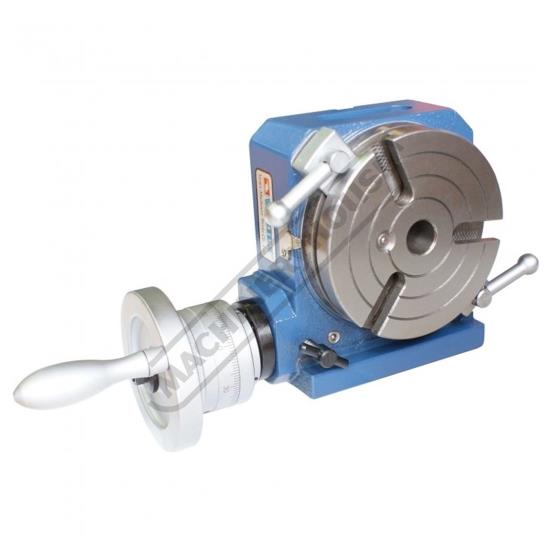

ROTARY TABLE 110MM DIA 80MM H 90 TO 1
Click on image for larger photo
Product Code: HV-4

VERTEX ROTARY TABLE HAS BEEN DESIGNED
TO BE USED WHERE A PRECISION WORK
POSITIONING DEVICE IS REQUIRED.
Border Image Border Image
Shop Price: $399.00
Web Price: $399.00  inc tax

Availability: In Stock
Quantity:
Weight: 8 KG
Border Image Border Image
ROTARY TABLE 110MM

SIZE
110MM

NUMBER OF T-SLOTS
3

T-SLOT SIZE
11MM

TAPER IN CENTRE
2MT

WEIGHT
7.5KG


DESCRIPTION
IT ALLOWS THE OPERATOR TO MILL OR DRILL COMPONENTS AT EXACT INTERVALS AROUND A FIXED AXIS. ADDITIONAL INDEXING PLATES CAN BE FITTED TO ALLOW THE VERTEX ROTARY TABLE TO BE USED AS A DIVIDING HEAD.
THE VERTEX ROTARY TABLE CAN BE USED IN BOTH THE HORIZONTAL OR VERTICAL PLANE.

FEATURES
-THE VERTEX ROTARY TABLE IS MANUFACTURED FROM HIGH-DENSITY MEEHANITE CAST IRON WITH GROUND SURFACE AREAS ON THE TABLE AND BODY TO ENSURE SMOOTH ROTATION

-CRITICAL WEAR PARTS ARE HAND FINISHED FOR ULTRA PRECISION

-ALL TABLES ARE TESTED FOR ACCURACY USING 'HEIDENHAIN' ELECTRONIC EQUIPMENT TO ENSURE CONTINUING QUALITY

-SPINDLE IS MOUNTED ON PRECISION TAPER ROLLER BEARINGS FOR SUPPORT UNDER HEAVY CUTTING LOADS

-WORM IS HARDENED AND PRECISION GROUND, WITH A RATIO OF 90-1

-TABLE IS GRADUATED TO A FULL 360º SO ONE TURN OF THE HANDLE MOVES THE TABLE 4º

-THE COLLAR ON THE HANDLE IS GRADUATED WITH A VERNIER SCALE, READINGS DOWN TO 10 SECONDS ARE POSSIBLE
