Product Code:
TRAIL8X5GSAC
TRAILER 8X5 GALV SINGLE AXLE WELDED TO
FLOOR 2.5MM CHECKERPLATE FLOOR-RATED
740KG- 5 LEAF SPRINGS
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

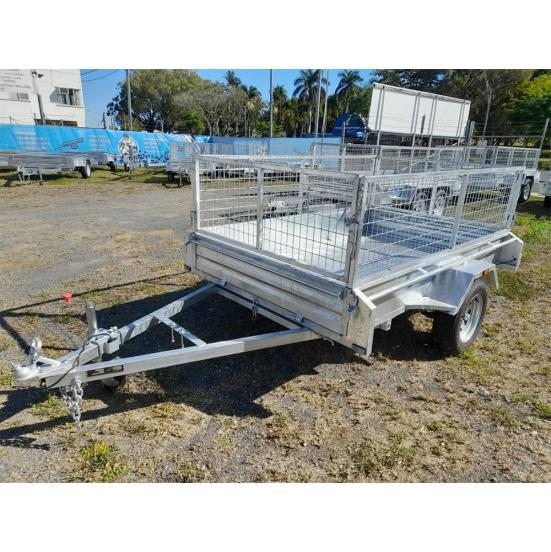

WELBILT BRAND GALVANISED TILT BODY BOX TRAILER
- SIZE 8 FT X 5 FT

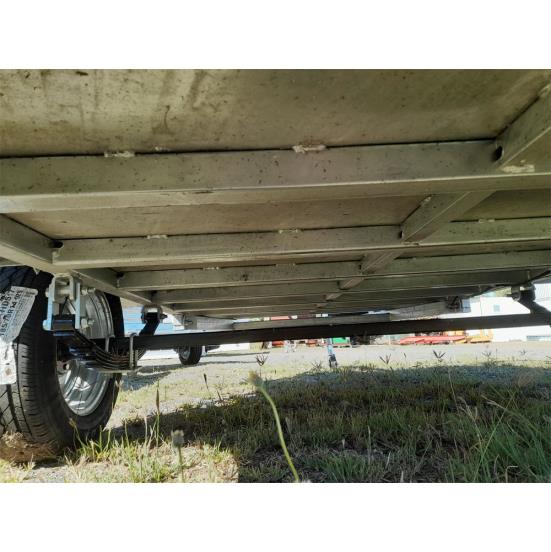

- CHECKER PLATE BODY - FLOOR FULLY WELDED TO CHASSIS
- SIDE PANELS - 300MM HIGH, 1.5MM FOLDING PLATE, DETACHABLE

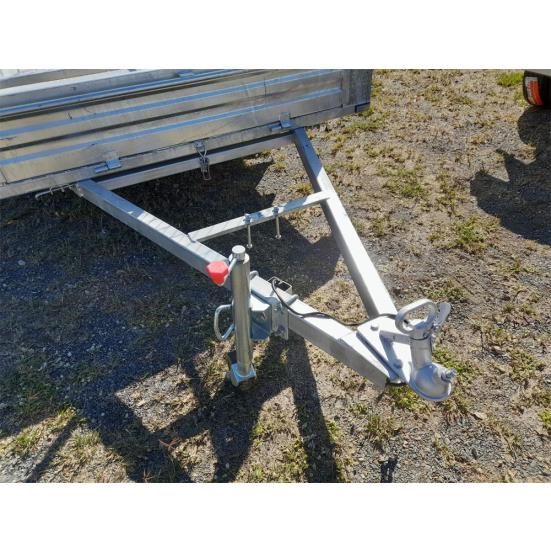

- LONG DRAW BAR - 1200MM LONG - 50 X 70 X 3MM WITH D SHACKLE 3/8"
- 50MM SQUARE TUBE, 2.5MM THICK
- CROSS BAR - 50MM SQUARE TUBE
- ROPE RAILS
- 750KG RATED SPRINGS & AXLES
- AXLE - 40 X 40 X 4MM SQUARE AXLE BEAM, HOLDEN BEARINGS

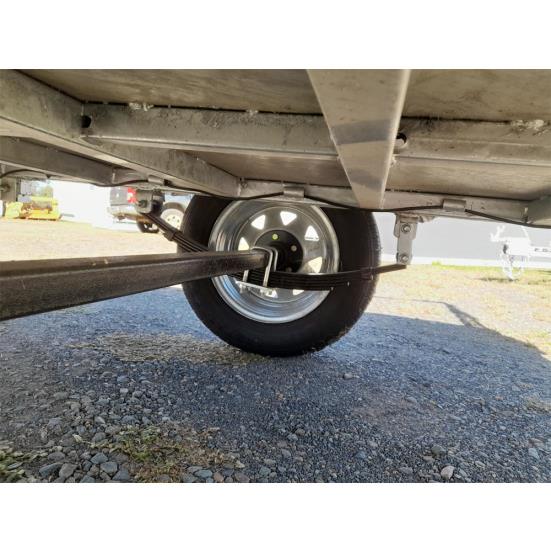

- SUSPENSION - 5 LEAF SPRING, 45 X 6MM, EYE TO SLIPPER
-
- COUPLING - 50MM BALL, NON-BRAKED, AUSTRALIAN STANDARD
- JOCKEY WHEEL - 6 INCH TOP WIND, LOAD 340KG (750LBS)
- TRAILER ELECTRIC PLUG - 7 PIN FLAT
- SWING UP JOCKEY WHEEL
- TILT BODY TRAILER
- HOT DIP GALVANISED BODY
- 1.5MM FOLDING FRONT & REAR TAILGATE FLAT PLATE, REMOVABLE
- MUDGUARDS - CHECKER PLATE WITH SMALL TRIANGLE STEP-UP PLATFORM AT FRONT AND REAR
ALSO AVAILABLE

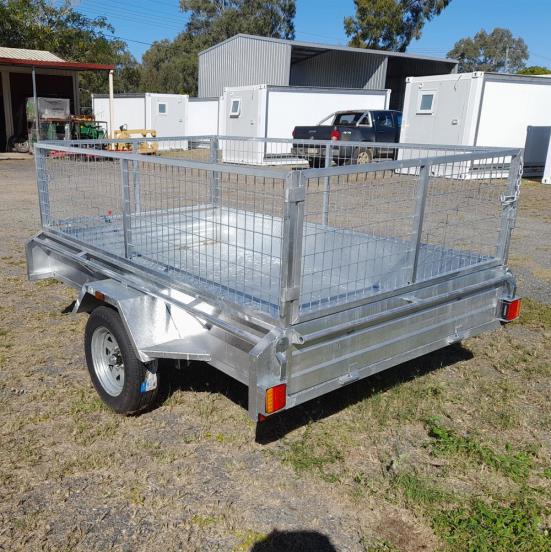

- CAGE FOR THIS UNIT SIZE - 600MM TALL, FRAME 30 X 30 X 1.5MM TUBE, 50 X 70 X 4MM MESH
- WHEEL - 185R14C TYRE WITH PAINTED RIM
-ATM 750KG
-TARE 270KG
-CARRYING 480KG
|
View Complete Range:
|
TRAILERS
TRAILERS > TRAILERS - SINGLE AXLE
|
|
|
