Product Code:
AHTK/8X12
AIR HOSE TUBING KIT 8MMID X 12MMOD CLEAR
TUBEING 5 METRE LONG ID X 8MM OD 12MM
8 PVC FITTINGS & 6 BRASS INLINE FITTINGS
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Hose Length: 5M / 16.4Ft; Outer Diameter: 12mm / 0.47 Inch; Inner Diameter: 8mm / 0.31 Inch.
Working Temperature: 0 - 60 Degree Celsius; Working Pressure: 0 - 1 MPa.

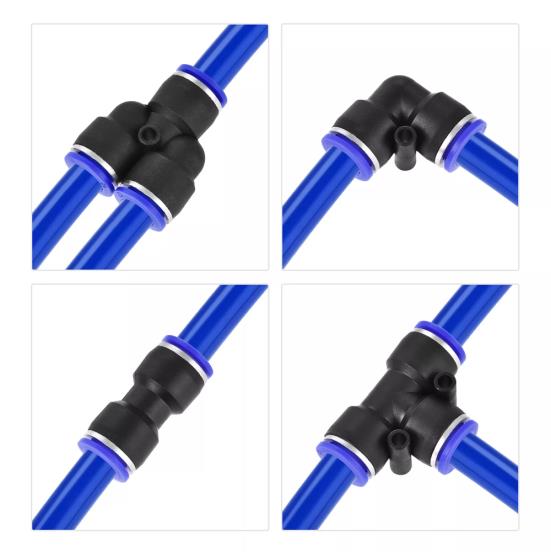

Includes 7 type of tube fittings, 2 pcs elbow connector, 2 pcs straight connector, 2 pcs Y connector, 2 pcs T connector, 2 pcs G1/8 male connector, 2 pcs G1/4 male connector, 2 pcs G3/8 male connector.
The air tube is high flexibility, space-saving and high pressure resistance.
Mainly used for air compression systems, vacuum systems, pneumatic systems.
Feature :
This PU hose is resistant to water and oil, wear-resistance, consistent tensile strength, it can maintain good softness and elasticity for a long time. Easy to stretch and cut.
Multiple Fittings: Different types of lightweight plastic and brass fittings, good sealing, corrosion and high-pressure resistance. To achieve better fastening, the fittings can be wrapped with sealant tape for installation.
Material: Pneumatic Hose Tubing made of polyurethane with a smooth inner wall, low coefficient of friction, smooth flow of air or fluid. It can resist some non-corrosive chemicals and oils, long service life.
Application: Compressed air and industrial fluids conveying, widely used in general working pressure liquid transportation such as pneumatic tools, garden water tubing, mechanical gas pipeline, laboratory automation equipment, general industrial water, gardening, hydraulic tube, oil and water tube, etc.
|
