Product Code:
TRAIL10X5GTAC
TRAILER 10 X5 GALV TANDEM AXLE
7 LEAF 60MM WIDE ROLLER ROCKER SPRINGS
3500KG LOAD CAP -ELECTRIC BRAKES WELBILT
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

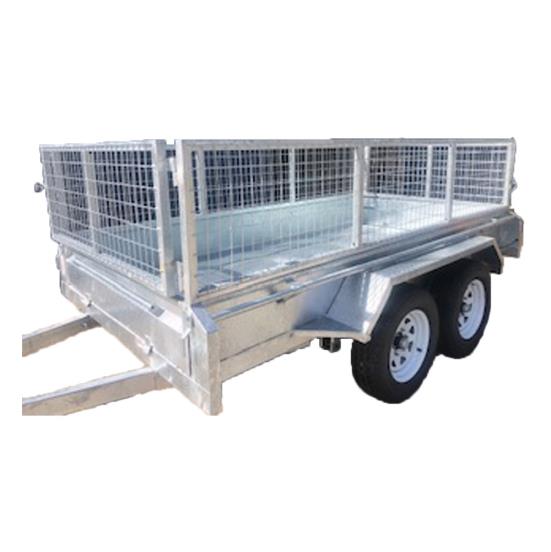

WELBILT TRAILER 10X5 GALVANISED TANDEM ELECTRIC BRAKE AXLES
DRAWBAR - 1600MM LONG, 100 X 50 X 5MM RHS
SAFETY CHAIN - 2 PIECES 13MM CHAINS AS4177-25 STAMPED
CHASSIS - 100 MM X 50MM SQUARE TUBE, 4MM THICK
CROSSBAR - 70MM X 50MM X 2MM SQUARE TUBE
FLOOR - 2.5MM CHECKERPLATE FULLY WELDED TO CHASSIS
SIDE PANELS - 300MM HIGH, 2.5MM FOLDING CHECKER PLATE, DETACHABLE DROP DOWN TAILGATES 1.5MM FLAT
FRONT/REAR GUARDS - 2.5MM FOLDING PLATE
MUDGUARDS (BOLTED) - CHECKERPLATE WITH SMALL TRIANGLE STEP-UP PATEFORM AT F/R
LATCH - CATCH FASTENER
FINISH - HOT DIP GALVANISING
AXLES - 50 X 50MM SQUARE AXLE BEAMS, FORD PARALLEL BEARINGS 2 X AXLE WITH ELECTRIC BRAKES (LM68149/10 - LM12749/10)
SUSPENSION - 7 LEAF SPRING, EA. 60MM WIDE X 8MM THICK LEAF , ROCKER ROLLER SUSPENSION.

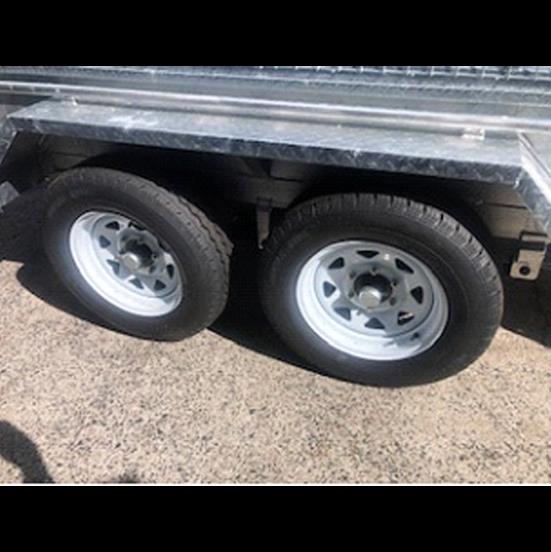

15 INCH LIGHT TRUCK TYRE 215/70R15 WITH PAINTED RIM (DOT & EMARK)
10 INCH TOP WIND JOCKEY WHEEL
COUPLING - 50MM BALL, ELECTRIC-BRAKED, AUSTRALIAN STANDARDS
LED TRAILER LIGHTS
ELECTRIC PLUG - 7 PIN

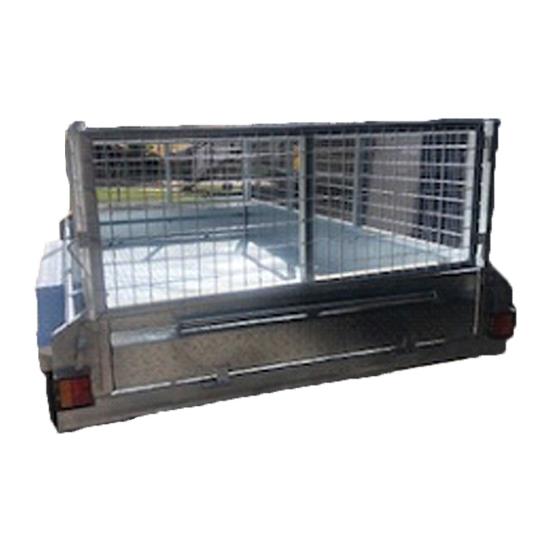

CAGE AVAILABLE !!!! SIZE - 600MM TALL, FRAME 30 X 30 X 1.5MM TUBE, 50 X 70 X 5MM GAL MESH TYPE
TARE . 780KG
MAX LOAD . 2720KG
GVM. 3500KG
WHEEL - 15" RIM
TYRE 215/70R15
|
