Product Code:
QBENP001
AIR PIPE BENDER 1/2TO 2" AIR & HYDRAULIC
SIZE 1/2, 3/4,1",1 1/4, 1 1/2, 2" FORMER

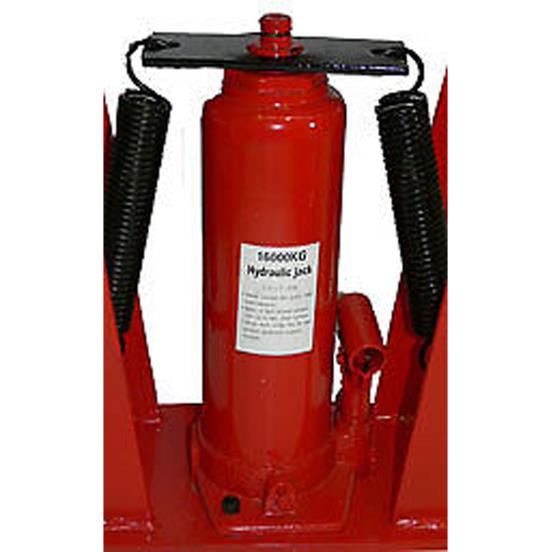

1200KG AIR JACK. 12 TON CAPACITY.
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
WORK HORSE NEW PIPE BENDER
12 TON, 12000KG AIR HYDRAULIC & MANUAL PIPE BENDER SUITS 15 - 50MM PIPE
THIS AIR HYDRAULIC & MANUAL PIPE BENDER IS GREAT FOR BOTH BUSINESS AND HOME USE. IT HAS A CAPACITY OF 12TON,
12000KGS, AND COMES WITH MULTIPLE FORMER SIZES, IN MM, INCLUDING 15, 20, 25, 32, 40, AND 50.
12,000KGS, 6 FORMERS 1/2, 3/4, 1, 1 1/4, 1 1/2 AND 2" WITH AIR PRESSURE 80 TO 120PSI
THE PIPE BENDER FORMERS IS MADE OF CAST IRON AND COMES WITH 6 METRIC FORMERS, RANGING IN SIZE FROM 15MM TO 50MM.
THE BENDER CAN BE USED MANUALLY OR ATTACHED THROUGH A COMPRESSOR TO OPPERATE THE AIR PUMP
THIS UNIT IS ABLE TO BEND PIPES OF UP TO 3MM THICKNESS & A DIAMETER OF 50MM TO 90 DEGREES.
CAN BE OPPERATED LAYING ON OR STANDING ON FLOOR AS IT HAS 4 LEGS 100MM LONG TO KEEP THE AIR PUMP ABOVE THE FLOOR WHILE BENDING.
SPECIFICATIONS:
FORMER SIZES: 15, 20, 25, 32, 40, 50MM
CAPACITY: 12 TON
DIMENSIONS: 640 X 580 X 250MM
AIR HYDRAULIC PIPE BENDERS 12 TON SUPPLIED WITH 6 IMPERIAL FORMERS: ½" - 2" OR 6 METRIC FORMERS: 15MM-50MM
WHAT IS INCLUDED IN SALE:
PIPE BENDER + 6 METRIC FORMERS
|
