SANDBLASTER AIR 75 LITRE TANK 60-125PSI

 New and improved website Freight Free

Enquiry
SANDBLASTER AIR 75 LITRE TANK 60-125PSI
Click on image for larger photo
Product Code: XH-SB20-1

AIR SAND BLASTER HEAVY DUTY TYPE 20 GAL-
LON CONTAINER SIZE TANK NEEDS 20 CFM
OF AIR 3/4" HOSE INLE. FOR PAINT & RUST.
Border Image Border Image
Shop Price: $299.00
Web Price: $290.03  inc tax

Availability: In Stock
Quantity:
Weight: 23 KG
Border Image Border Image
FAMOUS BRAND FARMTEC 20 GALLON AIR SAND BLASTER

SPECIFICATIONS:
TANK CAPACITY- 20 GALLON (75 LITRE)
RANGE OF BLASTING PRESSURE- 62-125PSI
MAXIMUM PRESSURE- 250PSI
HOSE SIZE- 1/2" INTERNAL 10FEET (3 METRE)
NOZZLE SIZE- 2.4/2.7/3.2/3.6MM

STANDARD ACCESSORIES:
8" REINFORCED HOSE
SAFETY FACE MASK

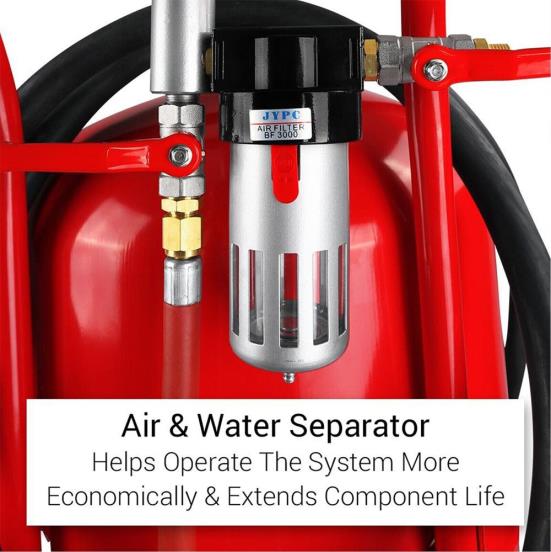

IN-LINE FILTER (MODEL SB-320 ONLY)
REGULATOR GAUGE (MODEL SB-320 ONLY)
SAFETY VALVE
NOZZLE SHUT OFF VALVE TYPE HANDPIECE. PART NO. 3008-2
NOZZLE PART NO: 29007 CERAMIC NOZZLES (4PCS) THESE NOZZLES ARE ONLY FOR THE HAND PIECE WITH A BALL VALVE ON/OFF OPERATION. THE LATER TYPE OF HANDPIECE IS PART NO. 3008-2 LEVER SHUT OFF TYPE HANDPIECE. THE NOZZLE TIPS TO SUIT THIS HANDPIECE IS 3008-3 TIP SET 2.4/2.7/3.2/3.6MM.

THERE CAN BE TWO TYPES OF HAND PIECES TO SUIT THIS MACHINE, BOTH WOULD DO THE SAME JOB. WHAT HANDPIECE YOU GET DEPENDS ON WHAT SUPPLIER WE HAVE PURCHASED THE MACHINE FROM. THERE DOESN'T SEEM TO BE ANY FAVOURTISM ON EITHER HANDPIECE.

NOTE: IF THE BRASS TAP HANDPIECE IS SUPPLIED - GUN PART NO. SP250GUN - A PACK OF 4 REPLACEMENT NOZZLES TO SUIT THIS HANDPIECE
ARE: PART NO. 592542 OR 10460 OR 29007. THESE 3 PART NUMBERS ARE THE SAME. THE REASON YOU GET 4 TIPS IS THAT IT DEPENDS ON THE SIZE OF THE COMPRESSOR YOU ARE USING. IF YOU ARE ONLY USING A SMALL 20 CFM COMPRESSOR YOU WILL ONLY NEED THE NOZZLES WITH 2 SMALL HOLES. IF YOU ARE USING A LARGE COMPRESSOR 50 OR 60 CFM YOU WILL NEED THE NOZZLES WITH THE LARGER HOLES.


NOTE: IF A COMPLETE HANDPIECE IS REQUIRED PART NO. 3008-2 IS A COMPLETE HANDPIECE REPLACEMENT. IT CONTAINS NOZZLES -
2.4/2.7/3.2/3.6MM.

NOZZLE TIP SIZE - 2.4, 2.7, 3.2 AND 3.6MM
AIR SUPPLY AND MEDIA CONSUMPTION WILL VARY DEPENDANT ON SIZE OF NOZZLE AND COMPRESSOR CAPACITY. GENERALLY 80 TO 90 PSI (DO NOT EXCEED 125 PSI)

-2MM NOZZLE 6 CFM @ 80 PSI
-2.5MM NOZZLE 12 CFM @ 80 PSI
-3MM NOZZLE 20 CFM @ 80 PSI
-3.5MM NOZZLE 25 CFM @ 80 PSI

IF REPLACEMENT PARTS ARE NEEDED FOR THIS BALL VALVE LEVER TYPE OPERATED HANDPIECE THE SPARE PARTS ARE:
SB250-5 NOZZLE HOLDER
FF06 BALL VALVE FLAT HANDLE TYPE 3/8" MALE THREADS 10MM BORE
21-07P-30806 MALE TAILPIECE SUIT 1/2" HOSE MALE THREAD
21-012703 MALE NIPPLE 3/8" BSP THREAD

880MM X 470MM X 490MM
