INLINE FUEL PUMP 12 VOLT PETROL & DIESEL
Click on image for larger photo
Product Code: EP-500-0

INLINE FUEL PUMP 12 VOLT PETROL & DIESEL
3.0 - 6 PSI- ROTARY VANE STYLE-FREE FLOW
WITH SOLENOID PUMP WITH PISTON ELEC COIL
Border Image Border Image
Shop Price: $49.00
Web Price: $47.53  inc tax

Availability: In Stock
Quantity:
Weight: 0.4 KG
Border Image Border Image
FEATURES AND BENEFITS:

NO DIAPHRAM, FREE FLOW THE SOLENOID PUMP USES A PISTON ACTUATED BY AN ELECTROMAGNETIC COIL TO GENERATE FUEL PRESSURE AND FLOW. BY USING ONLY SHORT PULSES OF ELECTRICITY, THE SOLENOID PUMP IS VERY ENERGY-EFFICIENT. IT IS ALSO LONG-LASTING, WITH NO INTERNAL RUBBER PARTS OR BELLOWS TO WEAR OUT.

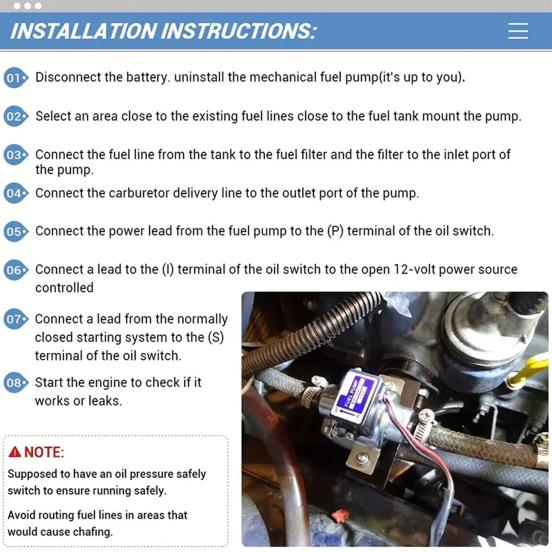

INSTALLATION INSTRUCTIONS:

1. DISCONNECT THE BATTERY. UNINSTALL THE MECHANICAL FUEL PUMP(IT'S UP TO YOU).
2. SELECT AN AREA CLOSE TO THE EXISTING FUEL LINES CLOSE TO THE FUEL TANK MOUNT THE PUMP.
3. CONNECT THE FUEL LINE FROM THE TANK TO THE FUEL FILTER AND THE FILTER TO THE INLET PORT OF THE PUMP.
4. CONNECT THE CARBURETOR DELIVERY LINE TO THE OUTLET PORT OF THE PUMP.
5. CONNECT THE POWER LEAD FROM THE FUEL PUMP TO THE (P) TERMINAL OF THE OIL SWITCH.
6. CONNECT A LEAD TO THE (I) TERMINAL OF THE OIL SWITCH TO THE OPEN 12-VOLT POWER SOURCE CONTROLLED BY THE IGNITION SWITCH
7. CONNECT A LEAD FROM THE NORMALLY CLOSED STARTING SYSTEM TO THE (S) TERMINAL OF THE OIL SWITCH.
8. START THE ENGINE TO CHECK IF IT WORKS OR LEAKS

NOTE: SUPPOSED TO HAVE AN OIL PRESSURE SAFELY SWITCH TO ENSURE RUNNING SAFELY.

AVOID ROUTING FUEL LINES IN AREAS THAT WOULD CAUSE CHAFING.
