Product Code:
P3-01C

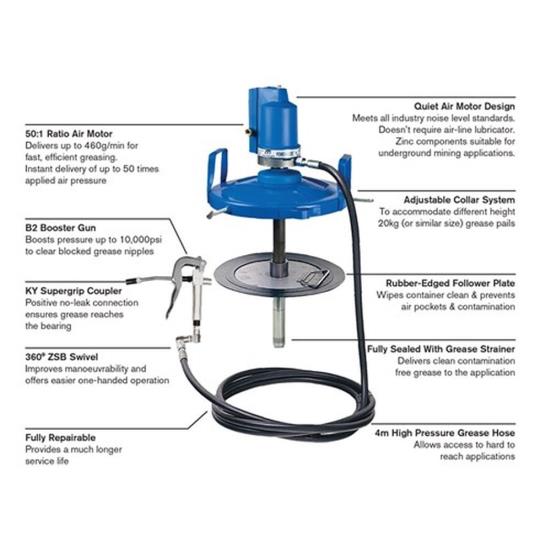

GREASE GUN AIR PUMP POWERLUBE 20KG PACK.
RUBBER EDGED FOLLOWER PLATE.
NO AIR LINE LUBRICATOR REQUIRED.
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
REPAIR KIT IS AVAILABLE POWERLUBE & MAXILUBE UNITS PART NO (P3-3K)
THE P3 POWERLUBE® IS THE ULTIMATE IN HIGH PRESSURE, AIR-POWERED GREASING. WITH MODELS AVAILABLE TO SUIT CONTAINERS FROM 12.5KG (28 LBS.) TO 22 KG (48 LBS.), IT IS FITTED WITH A 50:1 RATIO AIR MOTOR WHICH CAN RUN OFF MOST SMALL COMPRESSORS TO PROVIDE FAST, CONTINUOUS GREASING. THE P3 POWERLUBE IS ALSO SUITABLE FOR UNDERGROUND COAL MINE APPLICATIONS.
FEATURES:
- QUIET, NON-CORRODING AIR MOTOR
- 4 METRE (13 FEET) X 6 MM (¼") ID DELIVERY HOSE
- B2 BOOSTER GUN WITH 360º ZSB SWIVEL
- FULLY SERVICEABLE
- 10 YEAR WARRANTY AND PARTS GUARANTEE
- LOW AIR CONSUMPTION.
- 50:1 RATIO PUMP.
- FITS 20KG GREASE PAILS
- PORTABLE
- COUPLES TO COMPRESSOR
- PRESSURE UP TO 69 MPA (10,000 PSI)
SPECIFICATIONS:
- GREASE VISCOSITY: UP TO NLGI NO.2
- WETTED COMPONENTS: ZINC AND HARD CHROME PLATED CARBON STEEL, BRASS, AND NITRILE AND POLYURETHANE RUBBER
- OUTPUT: APPROXIMATELY 460 GRAMS/MINUTE (16 OZ/MINUTE)
- MAXIMUM AIR PRESSURE: 1 030 KPA (150 PSI, 10.3 BAR)
- MINIMUM AIR PRESSURE: 400 KPA (60 PSI, 4 BAR)
- MINIMUM COMPRESSOR SIZE: 0.08 M³/MIN (3 CFM)
- AIR INLET/FLUID OUTLET: ¼" NPT (FEMALE)
- PUMP RATIO: 50:1 (GREASE PRESSURE IS 50 TIMES AIR)
- B2 GUN PRESSURE: UP TO 69 000 KPA (10 0000 PSI, 690 BAR) (BOOST PRESSURE)
- HOSE THREAD: ¼" NPT (MALE) TA-7K FILTER & REGULATOR KIT
ACCESSORIES:
- TR5 TROLLEY
- PDF13 PUSH ON EXTENSION
- PDF21 PUSH ON EXTENSION
- TA-7K FILTER & REGULATOR KIT
- KZDXL STRAIGHT NEEDLEPOINT COUPLER
- KRV PRESSURE RELEASE VALVE
|
