FLOOR DRILL PRESS 12SPEED MT4 2HP H/DUTY

 New and improved website Freight Free

Enquiry

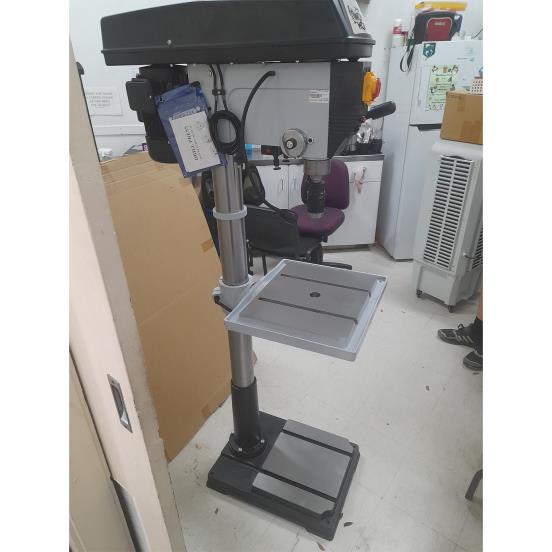

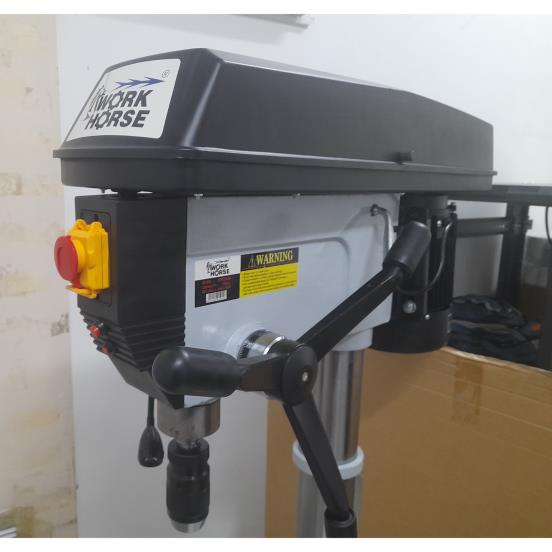

FLOOR DRILL PRESS 12SPEED MT4 2HP H/DUTY
Click on image for larger photo
Product Code: DPRED034

FLOOR DRILL PRESS 12 SPEED WITH MT4 2 HP
MOTOR. 12 SPEEDS 150 TO 2450RPM 20MM
KEYLESS CHUCK. HEIGHT1710MM-32MM MAX
Border Image Border Image
Shop Price: $1,299.00
Web Price: $1,299.00  inc tax

Availability: In Stock
Quantity:
Weight: 130 KG
Border Image Border Image
FAMOUS WORKHORSE BRAND

IT IS STRONGLY RECOMMENDED THAT WHEN YOU ARE CHOOSING THE IDEAL DRILL PRESS FOR YOUR WORK PLACE, IT IS ESSENTIAL NOT ONLY TO CONSIDER THE PRICE FACTOR, MAKE SURE YOU GIVE A COMPLETE THOUGHT ON THE KIND OF WORK AND EFFICIENCY THE DRILL IS OFFERING - INCLUDING THE POWER, SPEED, ADJUSTMENT, AND HEIGHT.

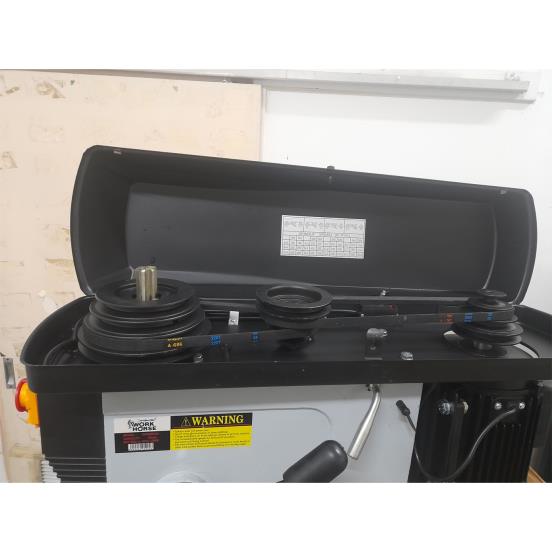

THIS UNIT HAS 12 DIFFERENT SPEEDS WHICH CAN BE CHANGED BY ADJUSTING THE BELT POSITION ON THE PULLEYS.

THE UNIT FEATURES A POWERFUL 1500 WATT ELECTRIC MOTOR, A SPINDLE SPEED OF 150/2450 RPM FOR A MAXIMUM DRILLING CHUCK CAPACITY OF 32MM.

MAX DRILLING DIAMETER: 32MM(1-1/4")
MOTOR POWER: 1500WATTS / 3/4HP
CHUCK CAPACITY: 5-20MM KEYLESS
SPINDLE TRAVEL: 120MM
SPEED: 12
SPEED 50HZ: 150-2450R.P.M.
SPINDLE TAPER: MT4
MAX. DISTANCE FROM SPINDLE AXIS
TO SURFACE OF COLUMN: 255MM
MAX. DISTANCE FROM SPINDLE END
TO SURFACE OF TABLE: 745MM
MAX. DISTANCE FROM SPINDLE END
TO SURFACE OF BASE: 1205MM
SWING: 510MM

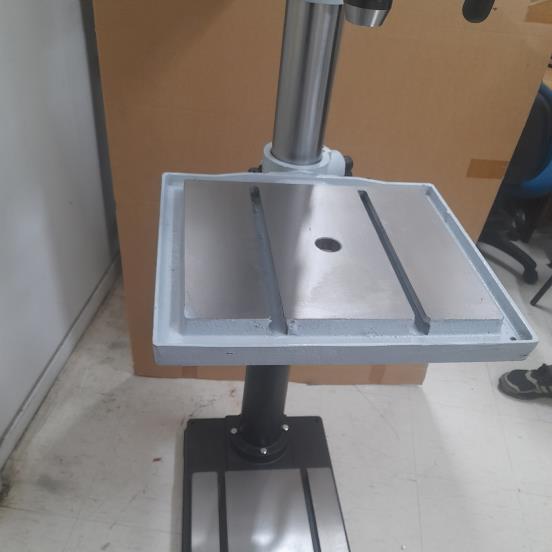

TABLE SIZE: 420 X 480MM
BASE SIZE: 575 X 425MM
COLUMN DIAMETER: 92MM
HEIGHT: 1710MM
