Product Code:
TRAIL14X7FLAT
TRAILER 14X7 FLAT TOP10"X4 BRAKES 3500KG
DUAL AXLE BRAKES FOLD UP 300MM SIDES NEW
215/70R15 TRUCK TYRES WITH SLIDE RAMPS
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

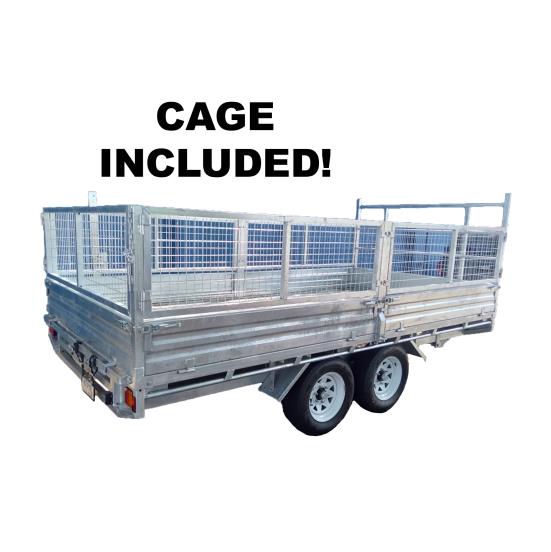

WELBILT TRAILER 14 X 7 FLAT TOP 10" X 4 BRAKES 3500KG ATM
WITH 600MM HIGH FOLD OUT CAGE FITTED TO TRAILER
6 STUD SPARE WHEEL HOLDER WITH SPARE TYRE !!!!!
100 X 50 X 5MM RHS DRAWBAR, 1600MM LONG WITH 2 X 13MM SAFETY CHAINS AS4177-25 STAMPED
100 X 50 X 4MM RHS CHASSIS FRAME, 70 X 50MM RHS CROSSBAR
2.5MM CHECKERPLATE FLOOR, 2.5MM CHECKERPLATE MUDGUARD (BOLTED)

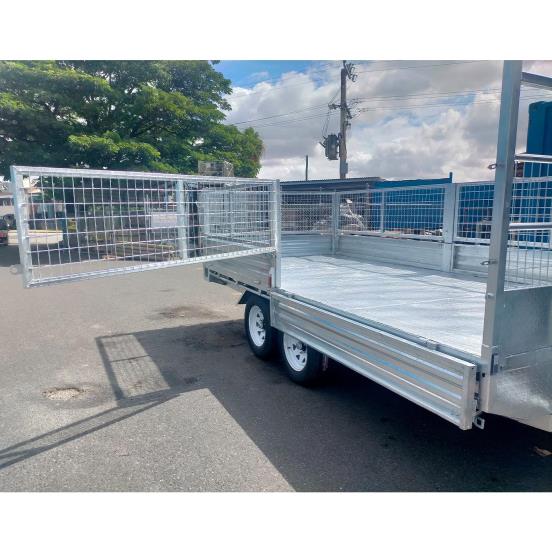

300MM HIGH SIDES, FOLD DOWN TYPE, REMOVABLE, 1.5MM FLAT PLATE STEEL WITH FOLDING DESIGN
1200MM HEADBOARD. TAILGATE WITH FOLDING FLAT PLATE, REMOVABLE
50 X 50MM SOLID SQUARE AXLES WITH FORD PARALLEL BEARINGS
10 INCH ELECTRIC BRAKE DRUM ON 4 WHEELS
7 LEAF SPRING, EACH 60 X 8MM, ROCKER ROLLER SUSPENSION
15 INCH LIGHT TRUCK TYRE, 215/70R15 WITH PAINTED RIM
10 INCH TOP WIND JOCKEY WHEEL
50MM BALL, AU STANDARD ELECTRIC BRAKE COUPLING

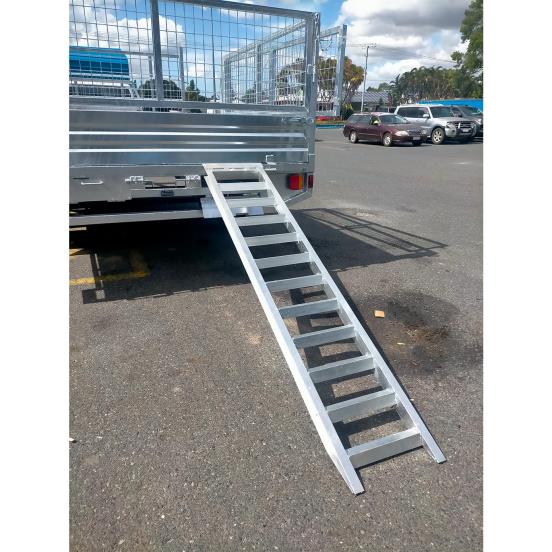

UNDERNEATH SLIDE RAMPS, 1800MM LONG, 70 X 50MM FRAME, 6MM STEEL MESH DECK
LED LIGHTING SETS WITH 7 CORE WIRE, 7 PIN PLUG AND 3 PAIRS SIDE MARKER
GVM. 3500KG
TARE. 950KG
CARRYING. 2550KG
TYRE, 215/70R15
|
