MITRE SAW 305MM SLIDE COMPOUND 240/54V
Click on image for larger photo
Product Code: DHS780T2A-XE

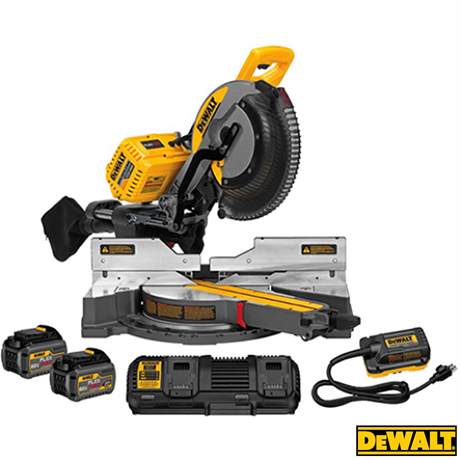

MITRE SAW 305MM SLIDE COMPOUND 240/54V
CORDED/CORDLESS 2X 54V FLEXVOLT BATTERY
XRC DUAL CHARGER AC POWER ADAPTOR
Border Image Border Image
Shop Price: $1,889.00
Web Price: $1,889.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: On Order
Quantity:
Weight: 28 KG
Border Image Border Image
DEWALT 54V XR FLEXVOLT 305MM COMPOUND SLIDE MITRE SAW WITH XPS KIT DHS780T2A-XE

XR FLEXVOLT IS A RANGE OF 54V POWER TOOLS THAT OFFER RUNTIME AND PERFORMANCE THAT HAS NEVER BEEN SEEN BEFORE - FOR THE FIRST TIME, PROFESSIONAL TRADESMEN CAN RELIABLY UNDERTAKE HEAVY-DUTY CONSTRUCTION APPLICATIONS WITHOUT THE NEED FOR MAINS POWER.

THIS INNOVATION MEANS THAT YOU CAN HAVE 54VOLTS POWER ACROSS A WHOLE RANGE OF TOOLS WITHOUT THE INCONVENIENCE OF A CABLE.

DEWALT XR FLEXVOLT IS THE ONLY BATTERY ON THE MARKET THAT CAN SWITCH FROM 54VOLTS TO 18VOLTS, MAKING IT BACKWARD-COMPATIBLE WITH YOUR EXISTING XR POWERTOOLS

FEATURES:
* OUTSTANDING CUTTING PERFORMANCE IN BOTH SMALL PROFILES AND LARGE CONSTRUCTION TIMBERS UP TO 110 X 303 MM
* XPS SHADOW LINE CUT INDICATOR PROVIDES FAST ACCURATE ALIGNMENT OF THE BLADE WHILE ILLUMINATING THE WORK PIECE FOR INCREASED PRODUCTIVITY NO ADJUSTMENT REQUIRED
* HEAVY DUTY DURABILITY WITH THE ABILITY TO FULLY ADJUST YOUR MACHINE TO MAINTAIN ACCURACY OVER THE LIFE OF THE TOOL.
* NEW QUICK RELEASE BEVEL STOP SETTING PROVIDES ACCURATE AND SIMPLE SETTING OF BEVEL ANGLES UP TO 49° LEFT AND RIGHT
* EASY TO USE MITRE AND BEVEL CONTROLS MAKING THE TOOL FAST AND SIMPLE TO CHANGE FROM ONE SET UP TO ANOTHER
* CAM ACTION MITRE LOCK FUNCTION MAKES MITRE SETTING FASTER AND EASIER ALLOWING THE USER TO QUICKLY ADJUST ANGLES BETWEEN 0° - 50° LEFT AND 0° - 60° RIGHT
* LONG LIFE ACCURACY IN TABLE AND FENCE DESIGN
* THE LARGE DUAL SLIDING FENCE GIVES MAXIMUM SUPPORT IN LARGE MATERIAL CUTS AT ANY ANGLE OR COMBINATION OF ANGLES
* LINEAR HORIZONTAL RAILS UTILISE BRONZE GUIDES TO PROVIDE MAXIMUM PRECISION WHEN CUTTING MATERIALS UP TO 345MM WIDE
* COMPACT AND LIGHTWEIGHT DESIGN CHARACTERISTICS DELIVER A SAW WITH ENORMOUS CAPACITY WHICH IS EASY TO TRANSPORT AROUND THE JOBSITE
* OUTSTANDING DUST CONTROL AND DEFLECTION AWAY FROM CUTTING AREA
* ELECTRONIC SPEED CONTROL FOR ADJUSTING CUTTING SPEED WHEN CUTTING MATERIALS OTHER THAN WOOD
* THE INNOVATIVE GROOVING STOP ALLOWS THE ADJUSTMENT OF THE CUTTING DEPTH FOR GROOVING AND REBATING APPLICATIONS
* DC MODE - JOBSITE OF THE FUTURE CORDLESS ABILITY USING 2X 54VOLTS XR FLEXVOLT BATTERY PACKS PROVIDING 108VOLTS
* AC MODE - POWERED BY 230VOLTS MAINS POWER WHEN USING IN CONJUNCTION WITH DCB500 POWER SUPPLY

SPECIFICATIONS:
POWER INPUT: 1675 WATTS
POWER OUTPUT: 960 WATTS
BLADE SPEED: 1900 - 3800 RPM
BLADE DIAMETER: 305 MM
BLADE BORE: 30 MM
BEVEL CAPACITY: 49/49°
MITRE CAPACITY [RIGHT/LEFT]: 60/50°
CUTTING CAPACITY AT 90° /45° (WIDTH X HEIGHT): 211 X 112 MM
CUTTING CAPACITY AT 90° /90° (WIDTH X HEIGHT): 303 X 110 MM
CUTTING CAPACITY AT 90° /90° (WIDTH X HEIGHT): 345 X 76 MM
CUTTING CAPACITY AT 45° /90° (WIDTH X HEIGHT): 268 X 63 MM
CUTTING CAPACITY AT 45° /90° (WIDTH X HEIGHT): 345 X 44 MM
CUTTING CAPACITY AT 90° /45° (WIDTH X HEIGHT): 244 X 76 MM
MAX. CUTTING CAPACITY AT 45°/45°: 212 X 76 MM
MAX. DEPTH OF CUT [SAWS]: 170 MM
DEPTH: 470 MM
LENGTH: 770 MM
HEIGHT: 396 MM
