*K*WOOD LATHE DIGITAL SPEED 2HP 462MM SW

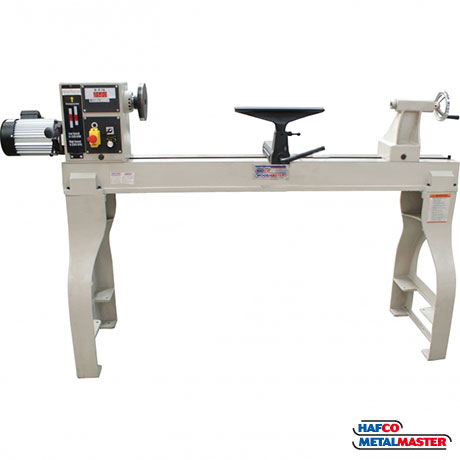

Click on image for larger photo
Product Code: WL-46A

*K*WOOD LATHE DIGITAL SPEED 2 HP 1194MM
CENTRE DUST PROOF MAGNETIC SWITCH.
HEAVY CAST IRON LEGS.& BASE 462MM SWING
Border Image Border Image
Shop Price: $2,849.00
Web Price: $2,849.00  inc tax

Availability: Out of stock
Quantity:
Weight: 275 KG
Border Image Border Image
SWING OVER BED: 462MM
BETWEEN CENTRES: 1194MM
SPINDLE NOSE THREAD: 30 X 3.5MM
SPINDLE NOSE TAPER: 2MT
SPINDLE SPEEDS: VARIABLE 100 - 3200RPM
MOTOR POWER: 1.5KW / 2HP
VOLTAGE: 240VOLTS
DIMENSIONS: 185 X 70 X 133CM

THE WL-46A IS BUILT TO A HIGH STANDARD AND CAPABLE OF TAKING A 462MM DIAMETER BOWL AND A BED LONG ENOUGH TO TURN A 1194MM LONG SPINDLE. ALL THE MAJOR CASTINGS ARE THICK SECTION CAST IRON WHICH GIVES A VERY SOLID FEEL TO THE LATHE AND SHOULD GUARANTEE VIBRATION-FREE RUNNING. POWER IS PROVIDED BY A 1.5KW / 2HP MOTOR DRIVING THE SPINDLE THROUGH A CHOICE OF TWO PAIRS OF PULLEYS AND CONTROLLED BY A VARIABLE SPEED CONTROL SITUATED AT FRONT OF THE HEADSTOCK. THE LOW SPEED RANGE GIVES PLENTY OF TORQUE FOR THE BIG TURNING JOBS WHILST THE HIGH SPEED RANGE GIVES THE SPEED NECESSARY FOR SMALLER COMPONENTS AND FOR FINISHING. THE FRONT PANEL OF THE HEADSTOCK, AS WELL AS HOUSING THE SPEED CONTROL KNOB, HAS A DIGITAL RPM INDICATOR, A SAFETY ON/OFF SWITCH, A REVERSING SWITCH AND THE ACCESS PANEL FOR CHANGING THE BELT POSITION. COMES COMPLETE WITH FOUR PRONG DRIVE CENTRE, REVOLVING TAIL CENTRE, TOOLREST & FACEPLATE.

FEATURES:
- CAST IRON CONSTRUCTION, BED, HEAD AND TAILSTOCK
- ELECTRONIC VARIABLE SPEED (100-3200RPM) WITH A DIGITAL SCREEN
- HEADSTOCK IS FREE TO SLIDE ALONG THE LENGTH OF THE BED
- 1.5KW / 2HP 240VOLTS MOTOR

INCLUDES:
- STAND
- DRIVE CENTRE
- LIVE CENTRE
- 150MM FACEPLATE
- 355MM TOOLREST
- TAILSTOCK


INSERT TO W370 SCROLL CHUCK FOR THIS LATHE IS PART NO (W366)
