WOOD CHIPPER PTO HYDRAULIC DRIVE 150MM

 New and improved website Freight Free

Enquiry

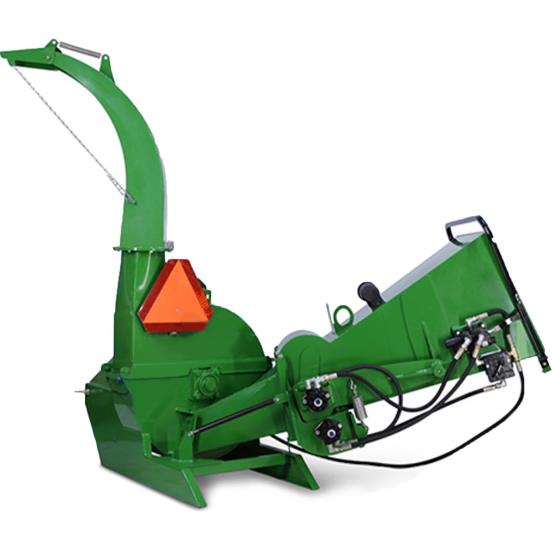

WOOD CHIPPER PTO HYDRAULIC DRIVE 150MM
Click on image for larger photo
Product Code: BX62R

WOOD CHIPPER PTO HYDRAULIC DRIVE 150MM
HYDRAULIC FEED,635 X635MM HOPPER OPENING
3 POINT HITCH, 540RPM.60 TO 80HP TRACTOR
Border Image Border Image
Shop Price: $6,899.00
Web Price: $6,899.00  inc tax

Availability: In Stock
Quantity:
Weight: 500 KG
Border Image Border Image
PTO HYDRAULIC FEEDING WOOD CHIPPER - ONE OF THE BEST CHIPPERS AVAILABLE IN THE AFFORDABLE RANGE BUT STILL GOOD QUALITY.

IDEAL HORSEPOWER REQUIRED - 60 TO 80HP, 540 RPM
3 POINT LINKAGE MOUNT IS SERIES 2 WITH POWER TAKE OFF OPERATION
IDEAL HORSEPOWER REQUIRED IS 60-80HP

NOTE: THIS UNIT IS SUPPLIED WITH A POWER TAKE OFF SHAFT FOR PTO OPERATION

- DRIVE SYSTEM: DIRECT DRIVE, PTO WITH SHEARBOLT
- HP REQUIREMENTS FOR MAXIMUM CAPACITY: 60-80HP
- CHIPPER CAPACITY: 6" DIAMETER (MAXIMUM 12" SLAB) GREEN TIMBER ONLY, NOT IRONBARK OR ROSEWOOD
- CHIPPER HOUSING OPENING: 6½" X 12"
- ROTOR SIZE: 30"
- FLYWHEEL THICKNESS: 25MM, DIAMETER: 740MM
- NUMBER OF ROTOR KNIVES: 4 BLADES MADE OF CR12 STEEL MATERIAL CUTTING BLADE
- KNIFE TYPE: HARDENED TOOL STEEL CR12 MATERIAL
- SAWDUST MEASUREMENT THICKNESS - 6MM
- ROTOR WEIGHT: 90KGS
- BLADE SIZE: 240 X 60 X 9MM THICK CR12 STEEL CUTTING BLADE REVERSIBLE
- FEEDING 3 FEED SETTINGS SYSTEM FEED: HYDRAULIC FEED FORWARD/NEUTRAL & REVERSE
- MOUNTING SYSTEM: 3 POINT HITCH SERIES 2
- HOPPER OPENING: 580 X 580MM
- DISCHARGE HOOD ROTATION: 360°
- DISCHARGE HOOD HEIGHT: 74"
- RATED RPM: 540-1000
- 4 ROTATING KNIVES HARDENED CR12 TOOL STEEL REVERSIBLE

THE BX SERIES CHIPPER IS 45 DEGREE ANGLE FEEDING
THE BX SERIES HAS HYDRAULIC FEEDING, ADJUSTABLE SPEED, STOP, FORWARD AND REVERSE FUNCTION
THE BX62R HAS AN F TYPE FLANGE HOUSING WITH COLLARED BEARING
FEEDING SYSTEM ROLLERS ARE 230MM LONG (X 2)

BEARING INFORMATION:
FLY WHEEL SHAFT BEARING UCF210 X2
ROLLER BEARING(UP) UCF210 X2
ROLLER BEARING(UNDERNEATH) UCP208 X2

SHIPPING DIMENSION- 910MM X 890MM X 1050MM
- 750MM X 1040MM X 750MM
