Product Code:
HMPRO42K1

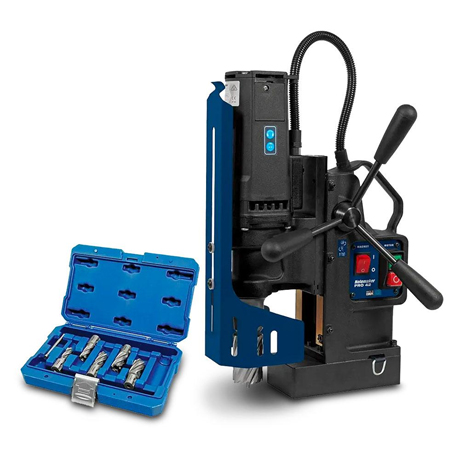

MAGNETIC DRILL BASE 42MM WITH COOLANT
CAP( DEPTH ): 52MM CAP ( DIAMETER ):40MM
CAPACITY ( TWIST DRILL ): 16MM
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
HMPRO42K1 INCLUDES SLUGGERS 14, 16, 18, 20, 22 AND PIN
HMPRO40 HOLEMAKER MAGNETIC BASE DRILL
42MM DIAMETER CUTTER CAPACITY
FEATURING A 1020WATT INDUSTRIAL MOTOR, POWERFUL DUAL COIL MAGNET AND CUTTING CAPACITY OF 40MM DIAMETER AND 52MM DEPTH USING HOLEMAKER CUTTERS.
AVAILABLE WITH THE OPTION OF A QUICK GRIP ARBOR FOR FAST TOOL-LESS CUTTER CHANGING, OR A CONVENTIONAL GRUB SCREW ARBOR. THE ABILITY TO EASILY ACCEPT TWIST DRILLS UP TO 13MM
- 19MM WELDON SHANK MOUNT FOR SLUGGER CUTTERS
- DRILL CHUCK SIZE IS 13MM KEYED TYPE
- YOU CAN NOT USE MORSE TAPER DRILLS ON THIS UNIT
- USING THE OPTIONAL CHUCK & ADAPTOR, MAKES THIS A VERSATILE MACHINE. THROUGH CUTTER COOLANT FEED, WITH AN EXTERNAL SIDE MOUNTED GRAVITY FEED COOLANT TANK ENSURES SMOOTH FAST CLEAN HOLE CUTTING. WITH ALL THE ABOVE FEATURES IN A HIGH QUALITY, COMPACT, LIGHTWEIGHT, DURABLE MACHINE, THE HOLEMAKER 40 IS EXCEPTIONAL VALUE FOR MONEY.
HOLEMAKER PRO 40 SPECS:
- (WITH GRUB SCREW ARBOR)
- MOTOR POWER: 1020WATT
- INPUT POWER: 1100WATT SINGLE PHASE 240VOLTS
- SPEED: 440RPM
- MAGNETIC DEAD LIFT: 10650N-M ON 25MM STEEL PLATE
- HEIGHT ( MIN / MAX ): 390 / 508MM
- THROUGH SPINDLE COOLANT SYSTEM
- SMART MAGNET TECHNOLOGY TO ENSURE SUFFICIENT MAGNETIC ADHESION
- SUPPLIED IN METAL CARRY CASE WITH CUTTER GUARD & SAFETY STRAP
* SIDE MOUNTED ELECTRICAL CONTROL PANEL
* DUAL COIL MAGNET
* 52MM DEPTH CUT
* 120MM STROKE
* SIDE MOUNTED COOLANT TANK
* 40MM CUTTER CAPACITY
FEATURES:
* EUROPEAN MADE MACHINE
* EXTRA LARGE 165MM STROKE ALLOWING THE USE OF AN OPTIONAL 13MM TWIST DRILL CHUCK
* THROUGH SPINDLE COOLANT SYSTEM, WITH AN EXTERNAL SIDE MOUNTED GRAVITY FEED COOLANT TANK
* THE FEED HANDLES CAN BE PLACED ON EITHER THE LEFT OR RIGHT HAND SIDE, FOR INCREASED VERSATILITY
* SMART MAGNET TECHNOLOGY TO ENSURE SUFFICIENT MAGNETIC ADHESION
* INTEGRATED CUTTER GUARD FOR INCREASED USER SAFETY
* SUPPLIED IN A BLOW MOULD PLASTIC CARRY CASE
* GRUB SCREW ARBOR SYSTEM, WHICH FASTENS POSITIVELY ONTO HOLEMAKER CUTTERS
SPECIFICATIONS:
* CAPACITY (DIAMETER): 42MM
* CAPACITY (DEPTH): 52MM
* CAPACITY (TWIST DRILLS):
* JOBBER DRILLS: 10MM (JOBBER DRILLS)
* STUB DRILLS: 13MM
* WELDON SHANK DRILLS: 16MM
* MOTOR POWER: 1020 WATT
* INPUT POWER: 1100 WATT
* SINGLE PHASE 240V
* SPEED: 440RPM
* MAGNETIC DEAD LIFT: 9,900NM ON 25MM STEEL PLATE
* STROKE: 165MM
* HEIGHT (MIN. / MAX.): 346 / 511MM
* WEIGHT: 12.5KG
|
