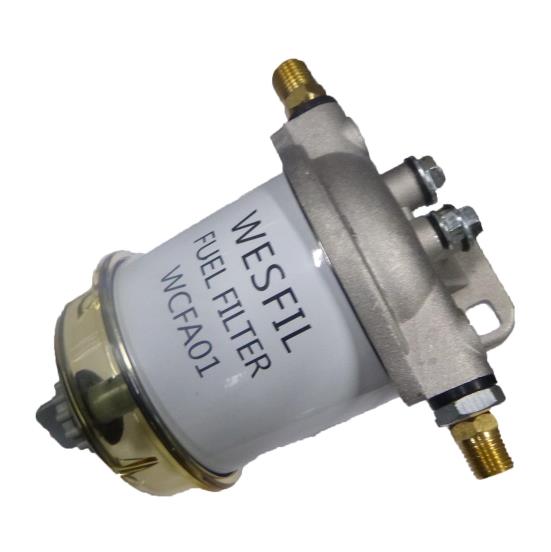

SINGLE FUEL FILTER GLASS BOWL CAV ASSY

 New and improved website Freight Free

Enquiry
SINGLE FUEL FILTER GLASS BOWL CAV ASSY
Click on image for larger photo
Product Code: WCFA01

FUEL/WATER SEPERATOR ASSEMBLY CAV TYPE
SEPERATES WATER & SEDIMENT FROM FUEL
USE FOR DIESEL, PETROL SINGLE FILTER ASS
Border Image Border Image
Shop Price: $89.00
Web Price: $86.33  inc tax

Availability: In Stock
Quantity:
Weight: 1.45 KG
Border Image Border Image
SINGLE FUEL FILTER GLASS BOWL CAV ASSY WITH 2 X CAV INLINE FUEL MALE THREADS

FITTINGS SUPPLIED ARE CAV THREAS INLET MALE OUTLET IS 14MM X 1.5MM

FILTERS TO SUIT THE UNITS WE SELL
OTHER PART NO TO SUIT CAV FILTER SINGLE & DOUBLE UNITS ARE
FLEETGUARD FF167A- RYCO R2132- BEPCO 111-3- BARECO-SPAREX S-1296


FILTER REPLACEMENT IS NORMAL CAV
WESFIL FUEL FILTERS ENSURE EFFICIENT REMOVAL OF PARTICULATE CONTAMINANTS, PROVIDING CLEAN FUEL AND MAXIMUM FLOW PERFORMANCE.

- SUITABLE FOR: DIESEL, PETROL AND PRE-MIX FUELS.
- CAN BE USED ON IN-BOARD AND OUT-BOARD ENGINES.
- CAN BE THE ONLY FILTER FITTED, OR MOUNTED DOWNSTREAM OR BEFORE EXISTING FUEL FILTER.
- WILL NOT REMOVE OIL FROM 2 STROKE MIXES WHERE CORRECT MISCIBILITY HAS BEEN ACHIEVED.

SPECIFICATIONS:
- NOMINAL FLOW RATE 40-45L/HR THROUGH ELEMENT. (NOTE: THE INTERNAL DIAMETER OF INLET AND OUTLET FITTINGS - EG BRASS FITTINGS) CAN ALTER FLOW RATES, HOWEVER MAXIMUM FLOW RATE IS DETERMINED FOR THE R2132P ELEMENT.
- R2132P - 18 NOMINAL MICRON
- FUEL LINE PRESSURE NOT TO EXCEED 206KPA/30PSI
- WATER RESISTANT SILICONE COATED FILTER PROVIDES MAXIMUM EFFICIENCY, LIE AND FLOW FOR ALL FUELS.
- CAST ALLOY HEAD ASSEMBLY.
- HEAD COMES WITH 2 BLANKING PLUGS IN ONE INLET AND OUTLET PORT. FOR A SINLY FUEL LINE, CHANGE PORT PLUGS FOR LEFT AND/OR RIGHT HAND MOUNTING.
- BLEED SCREW PROVIDED AT THE HIGHEST POINT OF HOUSING.
- SIMPLE THUMB SCREWS.
- RECOMMENDED FILTER CHANGE PERIOD IS WHEN FLOW RATE CAUSES STARVATION OR EVERY 100HRS.
