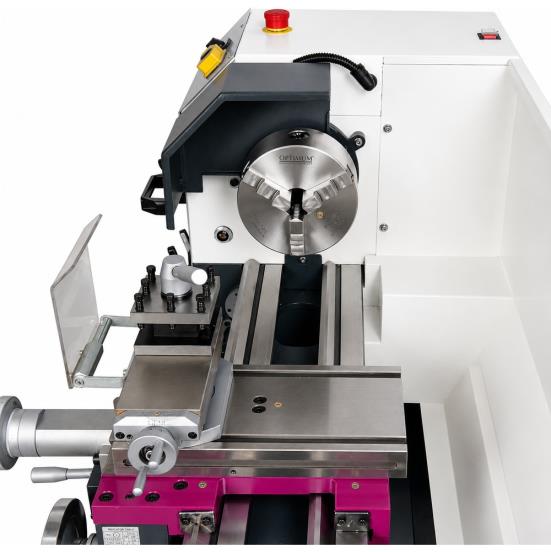

METAL LATHE 2HP 700MM BED 300 SWING
Click on image for larger photo
Product Code: L691

METAL LATHE 2HP 700MM BED 300MM SWING
38MM BORE ENCLOSED GEAR BOX HEAD 240
VOLT. 12 GEAR HEAD SPEEDS 125 TO 2400RPM
Border Image Border Image
Shop Price: $4,549.00
Web Price: $4,549.00  inc tax

Availability: In Stock
Quantity:
Weight: 320 KG
Border Image Border Image
300 X 700MM TURNING CAPACITY

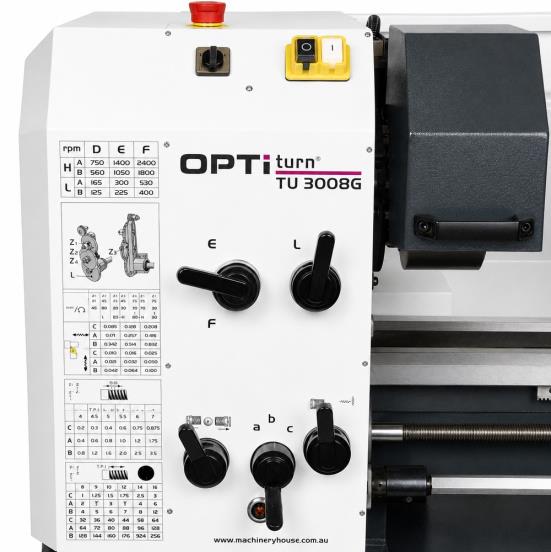

GEARED HEAD-STOCK & ENCLOSED GEARBOX

OVERVIEW:
THIS NEW TU-3008G MODEL GEARED HEAD LATHE OF VERY MODERN DESIGN HAS MANY CONVENIENT FACILITIES IDEAL FOR THE ENTHUSIASTIC MODEL ENGINEER FOR SMALL COMPONENT MANUFACTURER. A VERY RIGID 180MM CAST IRON BED WIDTH, INDUCTION HARDENED AND GROUND SLIDEWAYS GIVES A HIGH LEVEL OF PRECISION TURNING. THE LATHE CAPACITY IS 700MM BETWEEN THE CENTRES AND 300MM SWING OVER THE BED AND WITH A GENEROUS 38MM SPINDLE BORE ALLOWING LARGER STOCK TO BE PLACED THROUGH THE HEADSTOCK. THE WORKHORSE THAT DRIVES THIS LATHE HAS AN UPGRADED POWERFUL 2HP (1.5KW) MOTOR PROVIDING SMOOTH RUNNING.

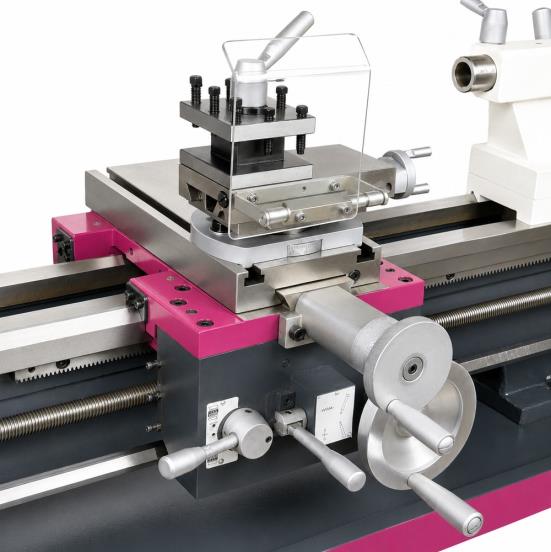

OTHER VERY USEFUL FEATURES INCLUDED ARE CROSS AND LONGITUDINAL POWER FEEDS THAT'S NOT NORMALLY FOUND OF SMALL CONVENTIONAL LATHES, QUICK LOCK TAILSTOCK AND BOTH METRIC AND IMPERIAL THREAD CUTTING, RANGING FROM 8-56 TPI OR 0.2-3.5MM PITCH. ALSO INCLUDED ARE A 4-WAY INDEXING TOOL POST WITH 16MM TOOL SHANK CAPACITY, FINE ADJUSTMENT ON THE TAILSTOCK FOR TAPER TURNING AND THE REAR SPLASH GUARD. A 160MM 3-JAW CHUCK WITH REVERSE JAWS IS ALSO SUPPLIED. THERE ARE MANY ADDITIONAL OPTIONS AVAILABLE INCLUDING A MILLING HEAD (BF-16AV) OR (BF-20AV) TO TURN THIS MACHINE INTO A VERY CAPABLE ALL ROUND MACHINING CENTRE.

FEATURES:

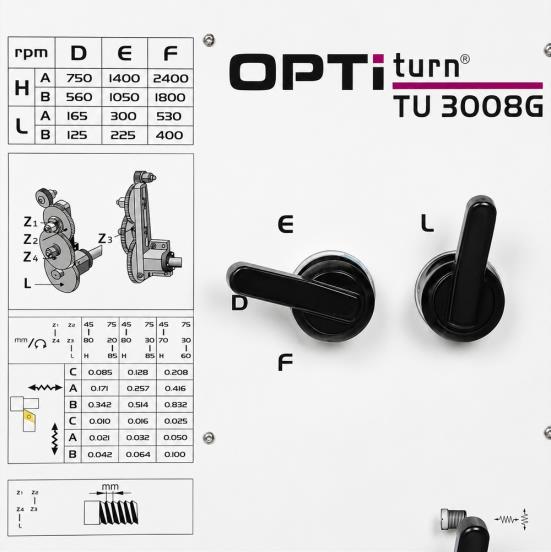

- GEARED HEADSTOCK FOR QUICK CHANGE OF 12 SPINDLE SPEEDS 125-2400RPM
- RIBBED PRISM BED MADE OF GREY CAST IRON
- INDUCTIVELY HARDENED AND GROUND BED GUIDEWAYS
- AUTOMATIC CROSS & LONGITUDINAL POWER FEEDS
- SPINDLE NOSE ACCURACY 0.009MM
- 3 JAW CHUCK RUNNING ACCURACY 0.04MM
- D1-4 CAMLOCK SPINDLE FOR QUICK CHUCK CHANGES
- FORWARD & REVERSE SPINDLE DIRECTION SWITCH
- OILS SIGHT GLASS ON HEAD-STOCK & GEARBOX
- CHANGE GEARS FOR METRIC AND IMPERIAL THREAD CUTTING
- ENCLOSED FEED AND THREADING GEARBOX
- BELT COVER WITH TAMPER PROOF SAFETY MICRO SWITCH

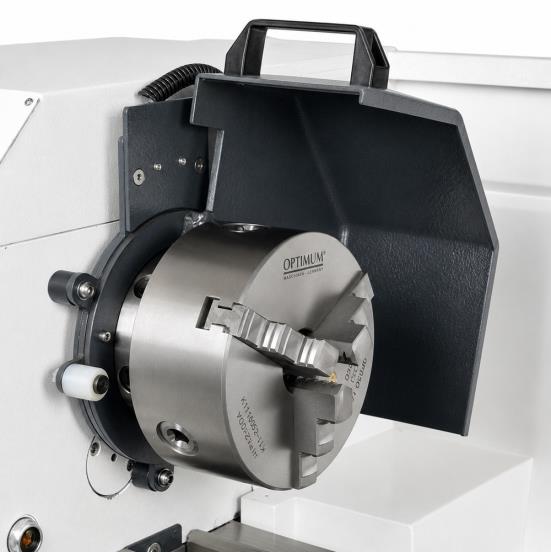

- HEAVY DUTY ROTATING SAFETY CHUCK GUARD WITH MICRO SWITCH
- SLIDING TOOL POST SAFETY GUARD
- CROSS SLIDE & BED LENGTH ARE DESIGNED TO FIT OPTIMUM DRO SCALES

INCLUDES:
- CHANGE GEARS FOR METRIC & IMPERIAL THREAD CUTTING
- CHUCK GUARD
- TOOLPOST GUARD
- 2 DEAD CENTRES
- 3-JAW CHUCK WITH REVERSIBLE JAWS
- SWARF DRIP TRAY
- REAR SPLASH GUARD

SPECIFICATIONS:
MODEL: TU-3008G
SWING OVER BED: 300MM
DISTANCE BETWEEN CENTRES: 700MM
SPINDLE BORE: 38MM
SWING OVER CROSS-SLIDE: 190MM
DIGITAL READOUT SYSTEM FITTED: OPTIONAL
QUICK CHANGE TOOLPOST FITTED: OPTIONAL
TOOL HEIGHT TO SUIT: 16MM
CENTRE HEIGHT: 150MM
SPINDLE NOSE SIZE OR TYPE: D1-4
BED WIDTH: 180MM
HEADSTOCK SPINDLE TAPER: 5
TAILSTOCK TAPER: 3METRES
CROSS SLIDE TRAVEL: 150MM
COMPOUND SLIDE TRAVEL: 65MM
LEADSCREW TYPE: METRIC
METRIC CROSS FEED (X-AXIS): 0.01 ~0.10 (MM/REV)
METRIC LONGITUDINAL FEED (Z-AXIS): 0.085 - 0.83 (MM/REV)
METRIC THREAD STEPS & PITCH: 18 (0.2 - 3.5) (NO. / MM)
IMPERIAL THREAD STEPS & TPI: 21 (8 - 56") (NO. / TPI)
3 JAW CHUCK DIAMETER: 160MM
4 JAW CHUCK DIAMETER: OPTIONAL
SPINDLE STEPS / SPEEDS: 12 (125 - 2400) (NO. / RPM)
MOTOR POWER: 240KW / 10HP

LATHE STAND TO SUIT- L690
