Product Code:
11201

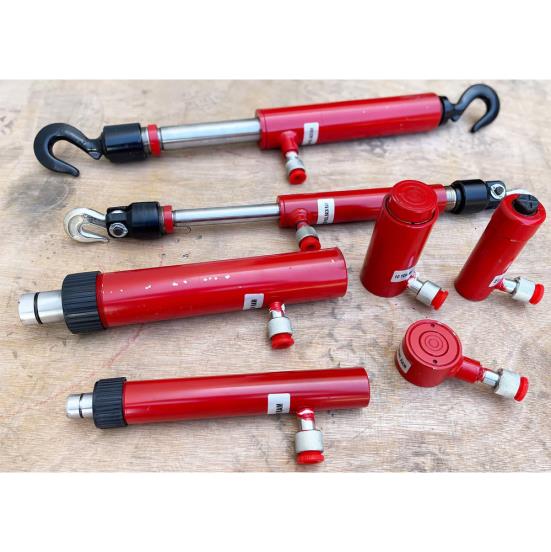

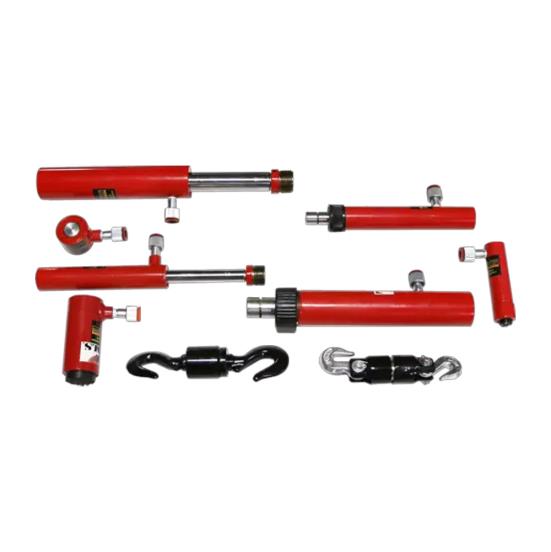

HYDRAULIC RAM KIT 13 PIECE 10 TON 7 RAMS
2X 4TON,1X 2TON,2X 10TON RAMS,2 DOUBLE
HOOK RAMS,1X 2TON,1X 5TON CAPACITY
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
WELBILT BRAND
FEATURES:
7 X MULTI-FUNCTIONAL RAMS INCLUDED (SPECIFICATIONS BELOW)
2 X HOOK ADAPTORS
4 X FORGED STEEL HOOKS BLACK
BAKED ENAMEL FINISH FOR CORROSION RESISTANCE
FOR SAFE AND NEAT STORAGE THE KIT IS PACKED IN A HEAVY DUTY RED METAL STORAGE BOX.
2 TON RAM 73MM STROKE, 139MM MINIMUM HEIGHT, 240MM MAXIMUM HEIGHT
4 TON RAM 18MM STROKE, 42MM MINIMUM HEIGHTT, 58MM MAXIMUM HEIGHT
4 TON RAM 128MM STROKE, 275MM MINIMUM HEIGHT, 405MM MAXIMUM HEIGHT
10 TON RAM 57MM STROKE,132MM MINIMUM HEIGHT,189MM MAXIMUM HEIGHT
10 TON RAM 135MM STROKE, 370MM MINIMUM HEIGHT, 505MM MAXIMUM HEIGHT
2 HOOK RAMS AS BELOW:
2 TON RAM 127MM STROKE, 422MM MINIMUM HEIGHT, 550MM MAXIMUM HEIGHT, RETURN SPRING
5 TON RAM 130MM STROKE, 520MM MINIMUM HEIGHT, 650MM MAXIMUM HEIGHT, RETURN SPRING
4 X FORGED STEEL HOOKS
RAMS WITH USA OR OTC STYLE COUPLING 10000 PSI PRESSURE THREAD 3/8NPT
NOTE: OTC USA HYDRAULIC FITTINGS FEMALE FITTING ON HYDRAULIC RAM PART NO (9796) THE OTC USA FEMALE FITTING
TO SUIT (9796) ON THE END THE HYDRAULIC HOSE IS PART NO (9798) IF MALE & FEMALE USA FITTINGS ARE
REQUIRED PART NO IS (9796/9798)
RAMS WITH ASAIN FITTINGS 10000 PSI PRESSURE THREAD 1/4 NPT
NOTE: ASAIN FITTINGS ARE SMALLER SIZE THAN THE USA STYLE AND ARE ON MOST HYDRAULICS
THAT ARE FROM CHINA.
CHINA FITTINGS: HYDRAULIC RAM END PART NO (10376) 1/4NPT HYDRAULIC HOSE END (10377) 1/4NPT
A HYDRAULIC PRESSURE BUSH TO REDUCE TO 1/4 NPT MALE THREAD USE PART NO ( T9791) OR (30-PRB-0604NSS)
FOR A MALE 3/8 NPT & 1/4 NPT FEMALE THREAD USE PART NO (T9790)
|
