Product Code:
HF-750
MAG BASE DRILL WITH FORWARD & REVERSE
TAPPING - 4 SPEED GEAR BOX MT3 TAPER -
1800 WATT MOTOR - MAG FORCE 3263KG/FT
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
FEED: MANUAL
DRILLING CAPACITY RANGE - MANUAL: 12-75MM
MAXIMUM THICKNESS: 50MM
SUITS CUTTER SHANK SIZE: 19MM
NO. OF DRILLING SPEEDS: 4
FULL LOAD DRILLING SPEEDS: 90, 120, 180, 230RPM
NO LOAD DRILLING SPEEDS: 150, 200, 300, 380RPM
MAGNETIC HOLDING POWER: 3263KG/F
MOTOR POWER: 1800WATTS
MOTOR VOLTAGE: 240VOLTS
DESCRIPTION:
MANUFACTURED IN TAIWAN
ON-SITE HOLE CUTTING IN STEEL PLATES, H-BEAMS SHAPED BARS, FRAMEWORK, SHIP BUILDING, BRIDGE CONSTRUCTION AND REPAIR, STEEL REINFORCEMENTS, AND MANY OTHER METAL WORKING AND CONSTRUCTION JOBS.
HAFCO OFFERS A FULL LINE OF ROBUST AND VERSATILE MAGNETIC DRILLING MACHINES BUILT SPECIFICALLY FOR THE HOLE MAKING NEEDS OF VARIOUS INDUSTRIES. APPLICATIONS INCLUDE FABRICATION, INDUSTRIAL AND CIVIL CONSTRUCTION, MAINTENANCE, SHIP BUILDING AND MANY OTHERS.
THIS LARGE NO. 3 MORSE TAPER FOUR SPEED MODEL DRILL, HAS THE VERSATILITY OF USING EITHER BROACH CUTTERS OR TAPER SHANK DRILLS. IT IS MANUAL FEED AND HAS FORWARD AND REVERSE TO MAKE IT SUITABLE TO BE USED AS A TAPPING MACHINE.
THIS MODEL FEATURES A PURPOSE-BUILT MAG DRILL MOTOR. THIS IS DESIGNED TO HAVE THE IDEAL TORQUE CHARACTERISTICS TO PRODUCE THE BEST PERFORMANCE AND DURABILITY FOR HEAVY-DUTY INDUSTRIAL USE.

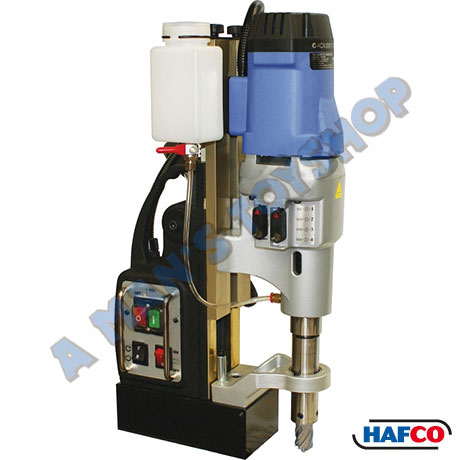

NOTE: SHOWN WITH OPTIONAL BROACH CUTTER
FEATURES:
- 3 MORSE TAPER SPINDLE TAPER
- 19MM WELDON SHANK BROACH HOLDER & BRACKET
- 4-SPEED GEARBOX
- FULL LOAD SPEEDS: 90, 120, 180, 230RPM
- 1800WATTS 240VOLTS MOTOR
- FORWARD/REVERSE FOR TAPPING
- Ø75MM DRILLING CAPACITY THROUGH 50MM PLATE
- BRONZE DOVETAIL SLIDES
- CAN BE USED WITH 3MT DRILLS UP-TO 31.5MM
- CE APPROVED
INCLUDES:
- 3MT SPINDLE TAPER
- 4 SPEED GEARBOX
- COOLANT TANK KIT
- SAFETY CHAIN
- BLOW MOULD PLASTIC CASE
|
