Product Code:
BS-0
DIVIDING HEAD & TAIL STOCK 125MM 3 JAW
STOCK WITH DIVING PLATES FOR MILLING
MACHINE-SWING 168MM-10 TO 90%-VERTICAL
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
DESCRIPTION:
THE DIVIDING HEAD IS A TOOL THAT IS USED TO DIVIDE A CIRCLE INTO EQUAL SPACERS. THE MOST COMMON USE IS IN THE ACCURATE MANUFACTURE OF SPLINES, GEARS AND KEY-WAYS THAT ARE REQUIRED TO BE AT A SPECIFIC ANGLE TO EACH OTHER.
THE SEMI UNIVERSAL DIVIDING HEAD CAN BE TILTED THROUGH A FULL 90 DEGREES FROM HORIZONTAL TO VERTICAL MAKING IT A MUST WHEN MANUFACTURING BEVEL GEARS OR KEY-WAYS IN TAPERS.
FEATURES:
- THE DIVIDING HEAD IS SUITABLE FOR DIRECT AND INDIRECT INDEXING
- HARDENED AND GROUND SPINDLE RIGIDLY HELD BETWEEN TAPER ROLLER BEARINGS
- IMPROVED DESIGN WITH SPINDLE SPIGOT NOSE FOR A MORE ACCURATE CHUCK MOUNT
- WORM IS HARDENED AND GROUND WITH RATIO BETWEEN WORM AND WORM WHEEL 40:1
- DIRECT INDEXING DESIGNED FOR QUICK DIVISIONS OF NO'S 2, 3, 4, 6, 8, 12 & 24
- THE HEAD CAN BE SWIVELLED FROM 10º BELOW HORIZONTAL TO 90º VERTICAL
- SLOTTED BASE ON DIVIDING HEAD & TAILSTOCK FOR USE WITH KEY STEEL TO ALIGN QUICKLY ON MACHINE
INCLUDES:
- BACKING PLATE SUITS 130MM FRONT MOUNT 3 JAW CHUCK
- DIVIDING PLATES
- TAILSTOCK
OPTIONAL ACCESSORIES:
- REPLACEMENT DIVIDING PLATES (D0015)
- SOLID CAST IRON CONSTRUCITON: SWING: 6-1/2"/168MM. THE DIVIDING HEAD FEATURES A RIGID MIRROR FINISH THAT IS WEAR-RESISTANT, A GOOD CHOICE FOR LONG-TERM USE. IT'S DELICATE PARTS WORK PERFECTLY, MATHEMATICALLY DIVIDING THE MATERIALS TO BE CUT

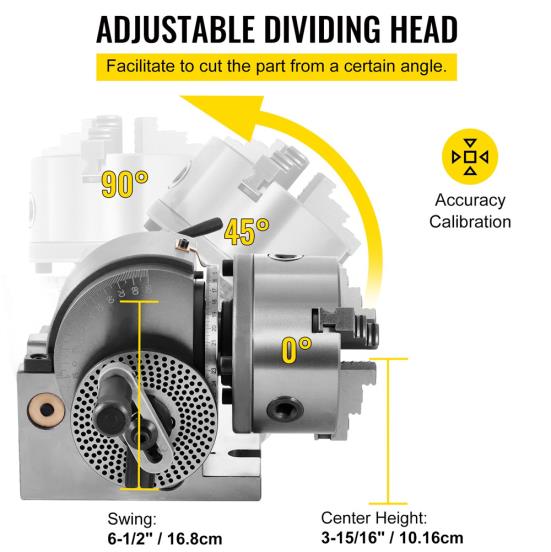

- EASY OF ADJUSTEMENT: THE HEADSTOCK OF THE DIVIDING HEAD FOR THE MILLING MACHINE CAN TILT FROM 10 DEGREES BELOW HORIZONTAL TO 90 DEGREES VERTICAL SO TAHT YOU CAN HANDLE THE STUFF OF DIFFERENT SIZES BY CHANGING IT'S ANGLE
- HIGH PRECISION INDESING PLATE: THE UNIVERSAL DIVIDING HEAD COMES WITH A DIRECT INDEXUING PLATE AND AN INTERCHANGEABLE ONE O THE HEAD AND TWO REPLACEMENT INTERCHAGEABLE ONES WITH DIFFERENT NUMBERS OF HOLES. IT'S THE DIVIDING PLATES THAT SET THE PRECISE DISTANCE BETWEEN CUTTINGS

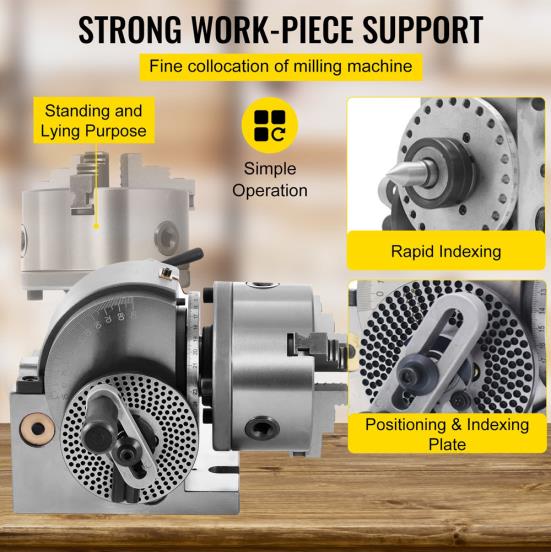

- STRONG WORKPIECE SUPPORT: THE COMING PACKAGE ALSO INCLUDES A TAILSTOCK THAT WILL GIVE STRONG SUPPORT TO THE LONG METAL STICK YOU ARE GOING TO DEAL WITH, PROVIDING A MORE STABLE WORKING CONDITION

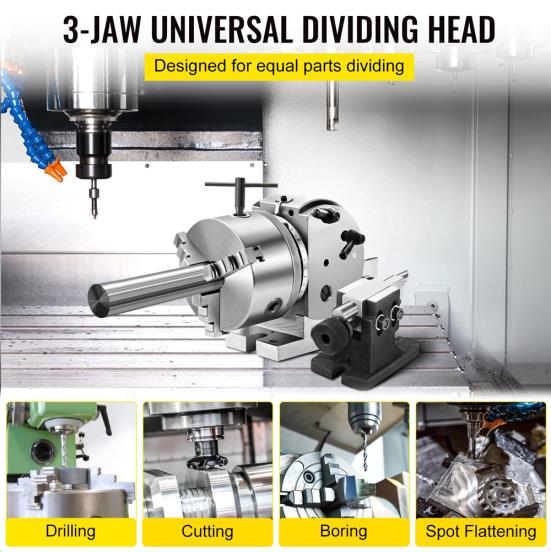

- VERSATILE APPLICATION: THE ROTARY INDEXER IS USED ON THE TABLES OF MILLING MACHINES AND OTHER MACHINE TOOLS, INCLUDING DRILL PRESSES, GRINDERS, AND BORING MACHINES
|
