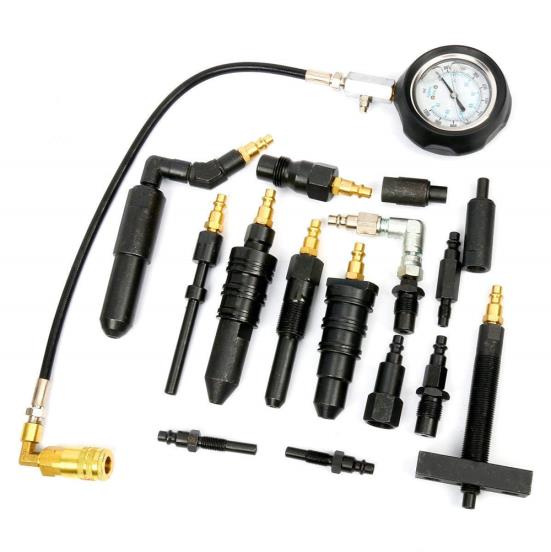

DIESEL ENGINE COMPRESSION TESTER SET
MEASURES CYLINDER PRESSURE ON DIESEL EQUIPPED CARS & TRUCKS

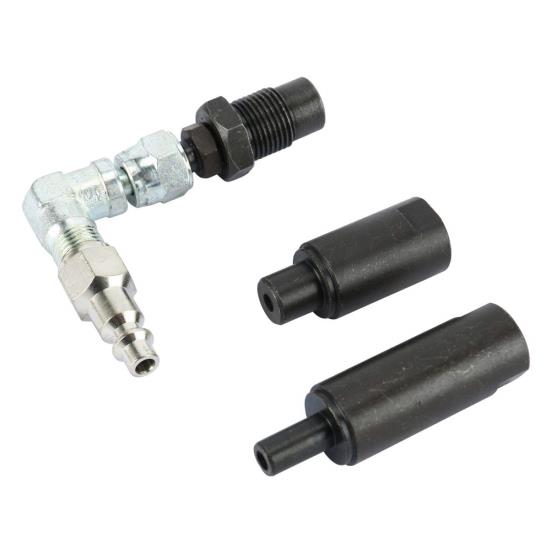

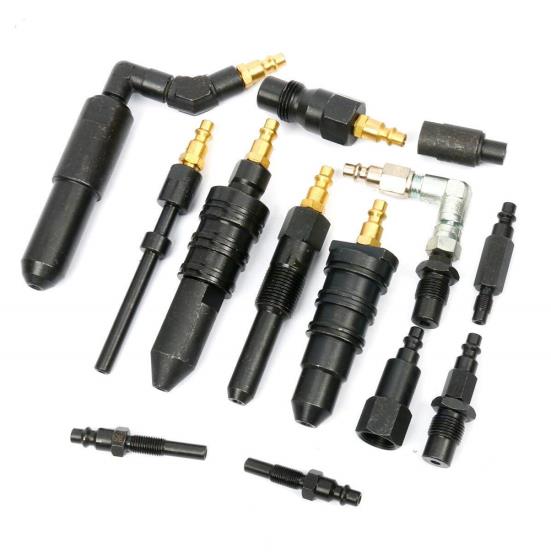

- SUPPLIED WITH ONE 60MM FACE GAUGE & ALL NECESSARY ADAPTERS

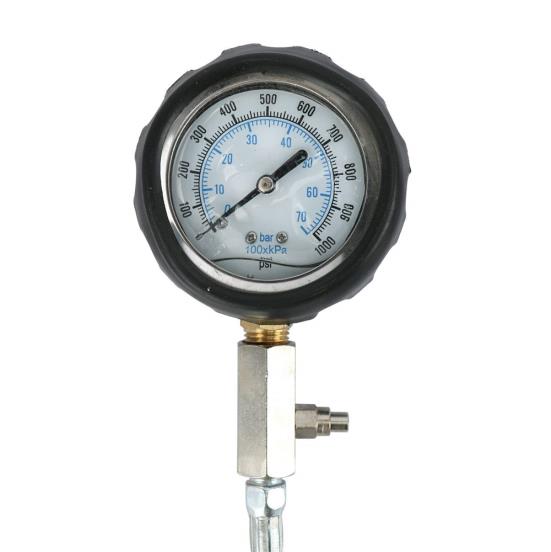

- 60MM LIQUID FILL GAUGE INCLUDES: GAUGE READING RELEASE VALVE & 368MM HOSE, DIAL READS FROM 0-1,000PSI & 0-70BAR

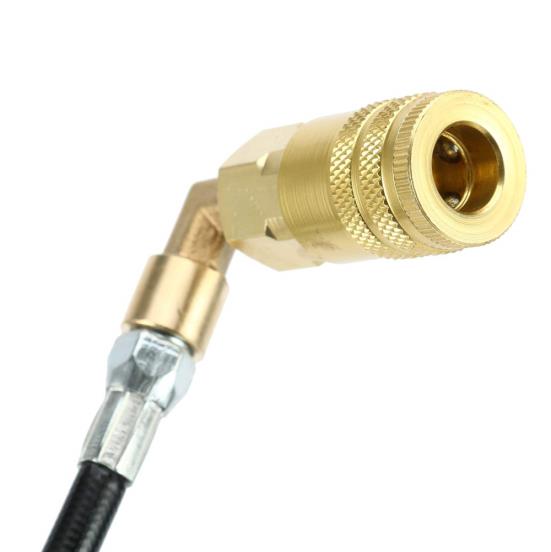

- UNIQUE SWIVEL END QUICK COUPLER ALLOWS THE OPERATOR TO CONNECT THE ADAPTERS QUICKLY & EASILY.

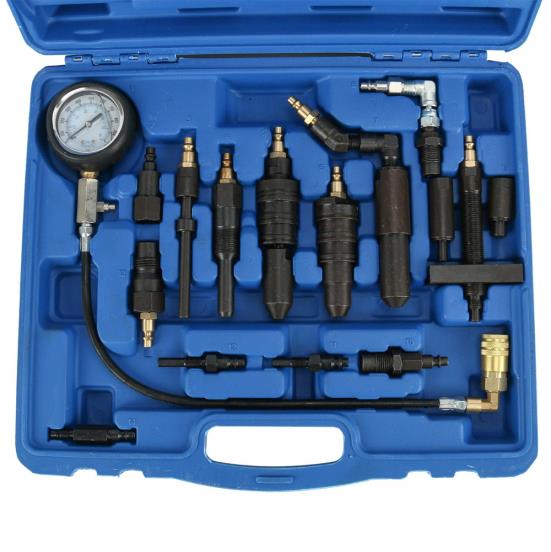

- IN HANDY PVC CASE WITH CARRY HANDLE FOR STORAGE
ITEM NO. APPLICATION ENGINE TESTING PORT THREAD
260-02 FORD/NAVISTAR 6.9 & 7.3L GLOW PORT 10MM - 1.00
GENERAL MOTORS 4.3 & 5.7L GLOW PLUG 10MM - 1.00
NAVISTAR 6.9 & 7.3L GLOW PLUG 10MM - 1.00
260-03 AUDI ALL FUEL INJECTOR 24MM - 2.00
CUMMINS 6BT, 4.02" BORE, 5.9L FUEL INJECTOR 24MM - 2.00
MERCEDES BENZ CARS & TRUCKS WITH 24MM PORTS FUEL INJECTOR 24MM - 2.00
VOLKSWAGEN ALL CARS & TRUCKS FUEL INJECTOR 24MM - 2.00
VOLVO ALL CARS & TRUCKS FUEL INJECTOR 24MM - 2.00
260.-04 CUMMINS V-185, V-210, V-225, FUEL INJECTOR
V-555, VT-255, VT-555
260-05 BACHARACH ALLOW A BACHARACH BRAND
ADAPTER TO BE USED WITH OUR
TESTER, NO. 260-01
260-06 MERCEDES BENZ 12MM IS FOR MODEL 300 & 300 TURBO GLOW PLUG 12MM - 1.25
TURBO DIESEL FROM 1978 & THE 250 AND
& 350 TURBO MODELS. 18MM -1.50
18MM IS FOR ALL REGULAR MERCEDES
BENZ ENGINES & MODEL 300 PRIOR TO 1978
260-07 ALLIS CHALMERS 6000, 7000, 10000, 11000 FUEL INJECTOR
BEDFORD 200, 220, 300, 330, 466 FUEL INJECTOR
J.I. CASE ALL MODELS NOT USINGPENCIL NOZZLE FUEL INJECTOR
JOHN DEERE 404, 466, 531, 619 FUEL INJECTOR
FIAT ALLIS 8035-02-300, 8035-12-301,
8035-02-302, 8045-02, 8045-03 FUEL INJECTOR
FORD TRACTOR ALL FUEL INJECTOR
INT'L HARVESTER D/DT 361, D/DT 429, DV 462, FUEL INJECTOR
DV/DVT 550, DT/DV/DVT 573, 361, 407
MACK TRUCK END 405, 457, 475, 510, 519, 605, 672, FUEL INJECTOR
673, 674, 711, 864, ENDT-673, 675, 676,
865, 866
ONAN DSL, MDSL FUEL INJECTOR
WAUKESHA 180DLC, 190D, 195D, 197D FUEL INJECTOR
260-08 CUMMINS THESE 5.5" BORE ENGINES: FUEL INJECTOR
NH(855 CUBIC INCHES), V-6, V-8,V-12,
& 903 V-8 CYLINDRICAL PTB
260-09 BMW 2.4L GLOW PLUG 12MM - 1.25
LINCOLN CONT.
MARK VII 1984 & 1985 CAR MODELS GLOW PLUG 12MM - 1.25
PEUGEOT FOR PEUGEOT DIESEL PASSENGER CARS GLOW PLUG 12MM - 1.25
HAVING EITHER 12MM-1.50MM GLOW AND
PLUG HOLES 18MM - 1.50
260-10 CHEVY LUV 1.8 & 2.2L GLOW PLUG 10MM - 1.25
ISUZU 1.8 & 2.2L GLOW PLUG 10MM - 1.25
TOYOTA 1.8L GLOW PLUG 10MM - 1.25
260-11 GENERAL MOTORS 4.3, 5.7, 6.2L, 6.5L TURBO GLOW PLUG 10MM - 1.00
260-12 DETROIT DIESEL 53, 71, 92, 110, 149, V53, V71 WITH FUEL INJECTOR
LOW OR HIGH CLAMP INJECTOR
HOLD DOWN
260-13 CATERPILLAR "CAPSULE" TYPE NOZZLES INCLUDING FUEL INJECTOR
MODELS D-336, 1674, 1676, 3406, 3408,
AND 3412
260-14 J.I.CASE 70 SERIES, 188 & 207 C.I.D. PENCIL NOZZLE FUEL INJECTOR
CATERPILLAR 1100 & 3208 SERIES FUEL INJECTOR
JOHN DEERE EARLY 300, 400 & 500 SERIES, 276, 404, FUEL INJECTOR
& 531 C.I.D.
WAUKESHA D155D FUEL INJECTOR
|
