Product Code:
KT20X18/7P

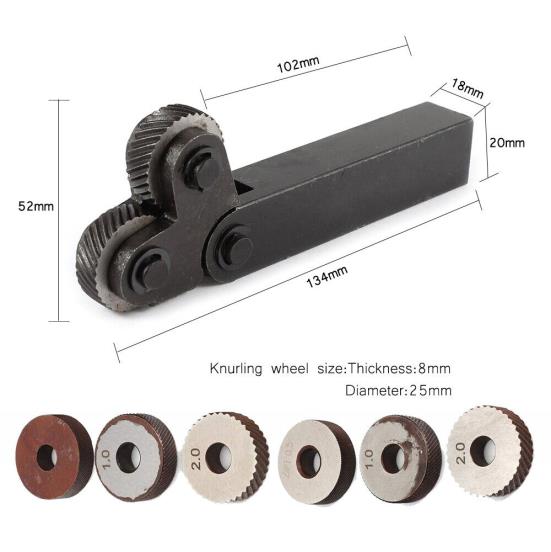

KNURLING TOOL 20MM X 18MM BODY 7 PIECE
SET LENGTH 134MM WHEEL SIZE 25MM X 8MM
WIDE 6 KNURLING WHEELS STYLES FLEX HEAD
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
FEATURES:
7PCS KNURLING WHEELS: THIS KNURLING TOOL WHEELS INCLUDES 0.5MM 1MM 2MM THREE DIFFERENT SIZES PER 2PCS RETICULATED KNURLING WHEELS AND 1PCS OF RETICULATED KNURLING KNIFE.
PRECISE MANUFACTURE: TWO ROLLERS TWILL DIRECTION,ONE IS POSITIVE AND THE OTHER ONE IS NEGATIVE,THE RETICULATED KNURLING KNIFE WITH FINE,MEDIUM,AND COARSE DIAMOND KNURLS.
NON-SLIP: THE MECHANICAL PROCESS METAL KNOB OR OTHER WORK TO PRESSURE PATTERNS DURING THE MECHANICAL PROCESS TO PREVENT SLIPPING.
PREMIUM QUALITY: THE KNURLING WHEELS TOOL IS RIGIDITY,WEAR RESISTANCE,ANTI-DEMOLITION DAMAGE STRENGTH,ANTI-RUST RESISTANT,HIGH PROCESSING EFFICIENCY.
WIDELY APPLICATED: USED FOR PROCESSING THE WORK PIECE SURFACE PATTERN,GREAT FOR REPLACING YOUR DAMAGED LINEAR KNURL WHEEL.
SPECIFICATIONS:
MATERIAL: STEEL
COLOR: BLACK (KNURLING) + BROWN (WHEEL)
KNURLING WHEEL FIGURE: APPROX 0.5MM, 1.0MM, 2.0MM
KNURLING WHEEL DIAMETER: APPROX 20MM/0.79"
0.5MM DIAGONAL LINEAR KNURLING WHEEL:
KNURLING PITCH: 0.5MM
NET PULLEY DIAMETER: APPROX 26MM/1.02"
HOLE DIAMETER: APPROX. 10MM/0.39"
HANAWA THICKNESS: APPROX. 8MM/0.31"
1MM DIAGONAL LINEAR KNURLING WHEEL:
KNURLING PITCH: 1.0MM
KNURLED WHEEL OUTER DIAMETER: APPROX 26MM/1.02"
HOLE DIAMETER: APPROX 10MM/0.39"
KNURLED WHEEL THICKNESS: APPROX 8MM/0.31"
2MM DIAGONAL LINEAR KNURLING WHEEL:
KNURLING PITCH: 2.0MM
KNURLED WHEEL OUTER DIAMETER: APPROX 26MM/1.02"
HOLE DIAMETER: APPROX 10MM/0.39"
KNURLED WHEEL THICKNESS: APPROX 8MM/0.31"
TOTAL SIZE: 25*8MM/0.98*0.31" (OUTER DIAMETER * THICKNESS)
ITEM WEIGHT: 500G / 17.6OZ
PACKAGE WEIGHT: 520G / 18.3OZ
PACKAGE SIZE: 110*40*20MM / 4.3*1.6*0.8"
PACKAGE LIST: E8476
1 * KNURLING TOOL
6 * KNURLING WHEELS
|
