Product Code:
XH-SBC990
GLASSBEAD BLASTING CABINET 240VFOOTVALVE
BRASS FLOW VALVE, AIR REGULATOR GAUGE
PANEL. 680 LITRE IND UNIT PISTOL GUN
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

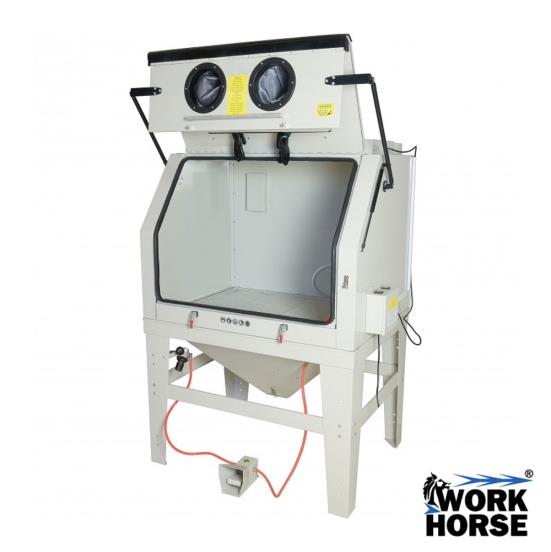

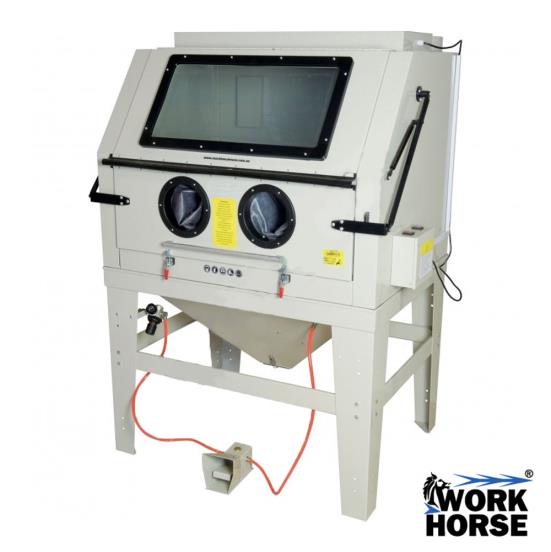

FREE STANDING GLASS BEAD BLASTER CABINET 240VOLTS FOOT VALVE ASSY
SPECIFICATION:
- NATURAL RUBBER/VINYL BLAST GLOVES 600MM LONG GAUNTLET GLOVES FITTED
- PERFORATED STEEL FLOORING-ABRASIVE LARGE PARTICLE-SEPARATING SCREEN AND CLEAN-OUT DOOR.
- POWDER COATED INSIDE AND OUT.
- EXTRA LARGE 680 LITRE INDUSTRIAL UNIT FOR THE BIG JOBS WITH A LARGE FRONT FOLDING DOOR WITH GAS STRUTS
- PISTOL GRIP BLASTING GUN
- LOCKING CLIPS ON FRONT DOOR
- EASY LOADING & UNLOADING AS IT IS SUCH A LARGE WORKING AREA 1175MM WIDE X 865MM DEEP X 850MM HIGH

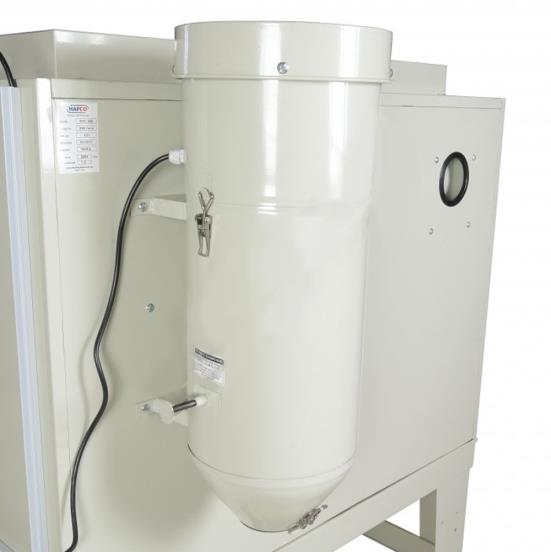

- VERY POWERFUL VACUUM SYSTEM WITH A FILTER CLEANING PUMP WITH DUST EVACUATION HATCH
EXTRA-RUGGED,HEAVY-DUTY PRODUCTION FOOT VALVE ASSEMBLY.BUILT TO BIG JOBS WITH A HEAVY STEEL HOUSING AND HIGH-PRODUCTION BRASS FLOW VALVE.

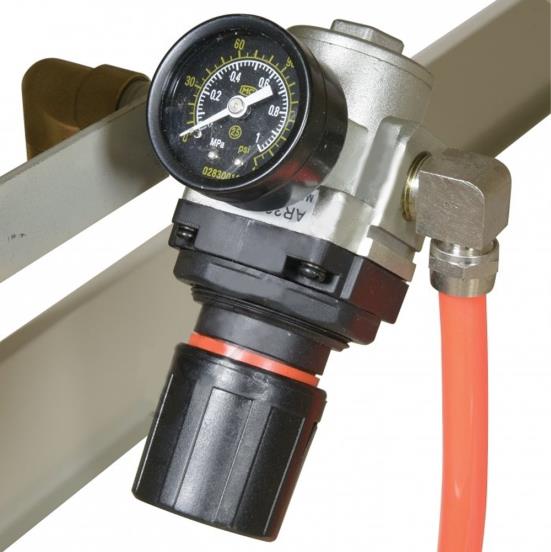

FITTED WITH A AIR REGULATOR & PRESSURE GAUGE ON TOP PANEL.
12 GAUGE STEEL LEGS (16GAUGE PANELS)
ELIMINATING TYPICAL SUCTION PICK-UP TUBES AND HOSES,MEDIA METERING VALVE
THE LOWER HOPPER STORES THE ABRASIVE FOR USE & REUSE & OPENS EASILY TO ALLOW REMOVAL OF MEDIA

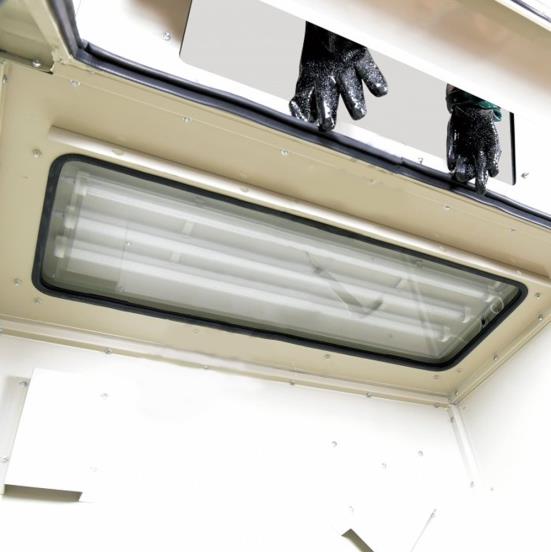

EXTERNAL EXCELLENT FLOURESCENT LIGHTING SYSTEM WITH ON/OFF SWITCH.
OVERALL DIMENSION: 133*124*177CM ?Recommended to use 3 x 25kg abrasive grit
DIMENSION: 118*96*107CM
WORK PRESSURE RANGE: 60~125PSI
THE XH-SBC990 SANDBLAST CABINET FEATURES A LARGE FRONT FOLDING DOOR FOR EASY LOADING AND UNLOADING. IT HAS EXCELLENT LIGHTING AND A VERY POWERFUL VACUUM SYSTEM. THE LOWER HOPPER STORES THE ABRASIVE MATERIAL FOR USE AND REUSE AND OPENS EASILY TO ALLOW EASY REMOVAL OF ANY MEDIA.
THE XH-SBC990 IS ALWAYS READY WHEN YOU ARE. THE CABINET CAN BE CONSTANTLY CONNECTED TO YOUR AIR SUPPLY AND IS READY FOR IMMEDIATE USE WHEN YOU STEP ON THE PEDAL. USE YOUR NEW SANDBLAST CABINET TO REMOVE SCALE OR HEAVY RUST FROM AUTOMOTIVE PARTS, CLEAN UP RUSTY TOOLS, ETCH GLASS, OR ANY OTHER SPECIAL APPLICATION.
THE XH-SBC990 INCORPORATES A POWERFUL VACUUM SYSTEM THAT KEEPS THE WORK AREA FREE OF "FLOATING" RUST AND USED GLASS BEAD SHELLS. AFTER THE GLASS BEAD 'SLAMS AGAINST' THE SURFACE TO BE CLEANED, A PORTION OF THE BEAD IS "DESTROYED" AND BECOMES ALMOST WEIGHTLESS. THE VACUUM SYSTEM REMOVES THE "FLOATING" RUST PARTICLES AND THE "USED UP" GLASS BEAD SHELL WHILE THE 'GOOD BEADS' FALL INTO THE HOPPER BELOW THE WORK SURFACE.
THE SBC990 USES A FOOT PEDAL TO CONTROL THE SPEED AND FLOW OF ABRASIVES FROM THE AIR GUN. THE FOOT PEDAL ALLOWS THE OPERATOR TO JUST 'HOLD AND POINT' THE GUN RATHER THAN THE NEED TO 'PULL THE TRIGGER' OF THE SANDBLAST GUN WHICH CAN BE VERY TIRESOME.
WE STOCK REPLACEMENT GLOVES, VACUUM MEDIA FILTERS, PEEL-OFF LENSES, BEAD BLAST GUNS AND REPLACEMENT NOZZLES ALONG WITH MANY OTHER WEARABLE SANDBLAST CABINET PARTS.
|
