AUTO FUEL NOZZLE W/ METER DIESEL,PETROL

 New and improved website Freight Free

Enquiry
AUTO FUEL NOZZLE W/ METER DIESEL,PETROL
Click on image for larger photo
Product Code: N-LLY-25S

AUTO FUEL NOZZLE W/METER 4 DIGIT READOUT
DIESEL,PETROL,KERO1-9999 LIRE FLOW RATE
5L/MIN TO 60L/MIN MAX(NOT GRAVITY TANKS)
Border Image Border Image
Shop Price: $179.00
Web Price: $173.63  inc tax

Availability: In Stock
Quantity:
Weight: 2 KG
Border Image Border Image
FAMOUS WEL-BILT BRAND

NOTE: THIS UNIT WILL NOT OPPERATE ON GRAVITY FEED TANKS

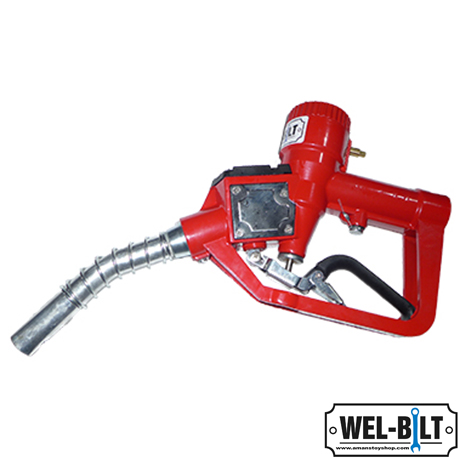

AUTOMATIC FUEL NOZZLE WITH FLOWMETER

NOTE - FRONT OF INLET PIPE MUST BE INSTALLED WITH A 100 MICRON FILTER
CAN BE USED FOR PETROL-KERO-DIESEL

LLY-S SERIES NOZZLE WITH FLOW METER IS A METER USED TO MEASURE THE VOLUME FLOW RATE OF LIQUID PASSING THROUGH THE PIPE.IT CAN OPERATE NORMALLY WITHIN THE PRESSURE FROM 0.15MPA TO 0.3MPA,AND GATHER THE MEASUREMENT FUNCTION AND AUTOMATIC FUNCTION IN ONE.

FEATURES:
HAND PIECE HAS A 1" BSP FEMALE THREAD FOR INLET HOSE

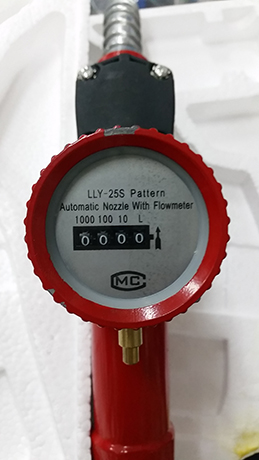

HAS ZERO BUTTON ON MECHANICAL COUNTER
INNER DIAMETER: 20MM
OUTSIDE DIAMETER: 25MM
MIN.FLOW RATE: 25LITRE/MINUTE
RATED FLOW RATE: 35LITRE/MINUTE
MAX.FLOW RATE: 60LITRE/MINUTE
ONE-TIME COUNT RANGE: 1-9999
PRECISION: ±1%
MAX.PRESSURE: FROM 0.15-0.3MPA
MECHANICAL COUNTING RANGE: 1 - 9999
APPLICABLE MEDIA KEROSENE,DIESEL AND GASOLINE.
**NOTE** IT MUST BE MANUALLY ADJUSTED WHEN THE MEDIUM LIQUID IS CHANGED.

PRODUCT ADVANTAGES:
EASY OPERATION
ERGONOMIC
DIGITAL CODE WHEEL ROLLING CLEAR AND FLEXIBLE
SURFACE IS TEMPERED GLASS
SCREW WING TYPE AUTOMATIC TRIGGER NOZZLE WITH FLOW METER

FULL INSTRUCTION NOTES ARE INCLUDED WITH FUEL NOZZLE
