TRAILER BREAKAWAY KIT 1-2 AXLE 12 VOLT

 New and improved website Freight Free

Enquiry
TRAILER BREAKAWAY KIT 1-2 AXLE 12 VOLT
Click on image for larger photo
Product Code: KVABS001A

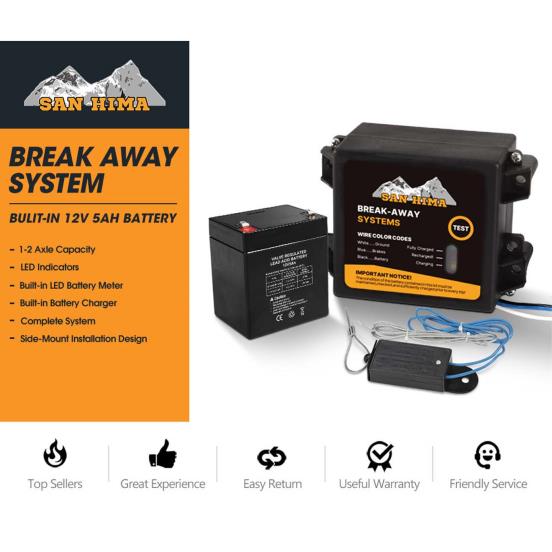

12V TRAILER BREAKAWAY KIT 1-2 AXLE
INCLUDES 12V 5AH BATTERY IN SEALED BAT
HOLDER WITH 540MM L BREAKAWAY CABLE
Border Image Border Image
Shop Price: $99.00
Web Price: $99.00  inc tax

Availability: In Stock
Quantity:
Weight: 1.2 KG
Border Image Border Image
DESCRIPTION

IF YOU ARE TOWING A TRAILER WITH ELECTRIC BRAKES THAT WEIGHS OVER 2 000KG (4 409LBS) IT?S A LEGAL REQUIREMENT TO HAVE A BREAK AWAY SYSTEM.

THE BREAKAWAY SYSTEM FOR TRAILERS MOUNTS TO THE TRAILER AND IN CASE OF UNCOUPLING THE TRAILER BREAK AWAY SYSTEM WILL ACTIVATE ELECTRIC BRAKES AND SAFELY STOP THE TRAILER.

THIS SAN HIMA BREAK AWAY SYSTEM FOR TRAILERS FOR USE ON 1 OR 2 AXLE CARAVANS AND TRAILERS EQUIPPED WITH ELECTRIC BRAKES CAN ACTIVATE TRAILER BRAKES UPON SEPARATION FROM VEHICLE.

THE TRAILER BREAKAWAY SYSTEM FEATURES A 12V 5AH BATTERY WITH BUILT IN BATTERY CHARGER THAT CAN BE CHARGED FROM TOW VEHICLE OR FROM HOUSE BATTERY OF TRAILER.

IT'S IMPORTANT FOR YOU TO NOTE THAT ANYTIME THE PIN IS REMOVED FROM THE SWITCH THE BATTERY LIFE WILL BEGIN TO DEPLETE SO ALWAYS BE SURE YOUR BATTERY IS FULLY CHARGED BEFORE EACH TOW.

THIS BREAK AWAY SYSTEM FOR TRAILERS IS DESIGNED WITH A PUSH TO TEST BUTTON SO YOU CAN EASILY KNOW THE LEVEL OF CHARGE OF THE BATTERY.




FEATURES

QUICK ACTIVATION: THIS SAN HIMA BREAK AWAY SYSTEM FOR TRAILERS ACTIVATES TRAILER BRAKES UPON SEPARATION FROM VEHICLE.

WIDE APPLICATION: THIS BREAK AWAY SYSTEM FOR TRAILERS IS FOR USE ON 1 OR 2 AXLE CARAVANS AND TRAILERS EQUIPPED WITH ELECTRIC BRAKES.

LEGAL COMPLIANCE: THIS BREAK AWAY SYSTEM MAKES YOUR TRAILER OVER 2 000KG (4 409LBS) GROSS TRAILER MASS CONFORM TO THE LEGAL REQUIREMENT IN AUSTRALIA.

CONVENIENT CHARGING: THE 12V 5AH BATTERY WITH BUILT IN BATTERY CHARGER CAN BE CHARGED FROM TOW VEHICLE OR FROM HOUSE BATTERY OF TRAILER.

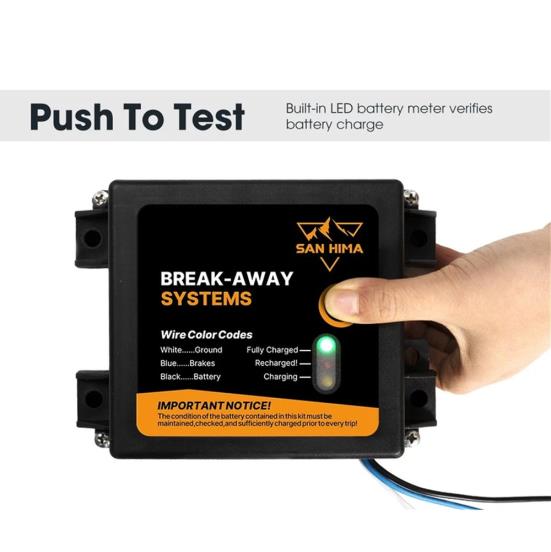

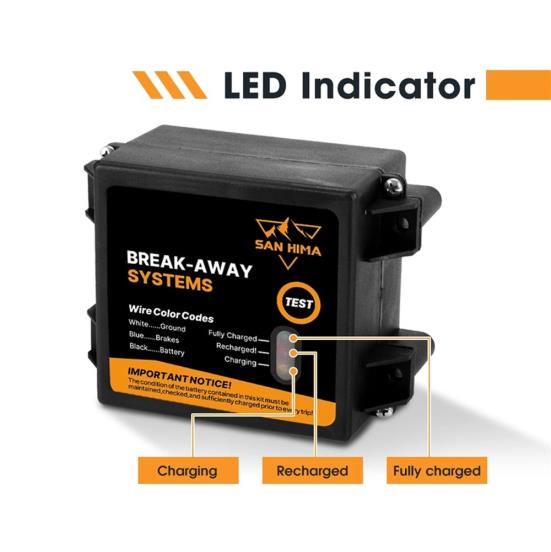

PUSH TO TEST: THE EASY TO OPERATE BUTTON IS USED TO INDICATE THE LEVEL OF CHARGE WITH LED INDICATOR.

TOUGH CONSTRUCTION: THE BREAKAWAY SYSTEM FOR TRAILERS FEATURES HEAVY-DUTY PP CASE WHICH PROTECTS BATTERY FROM MOISTURE AND DEBRIS.

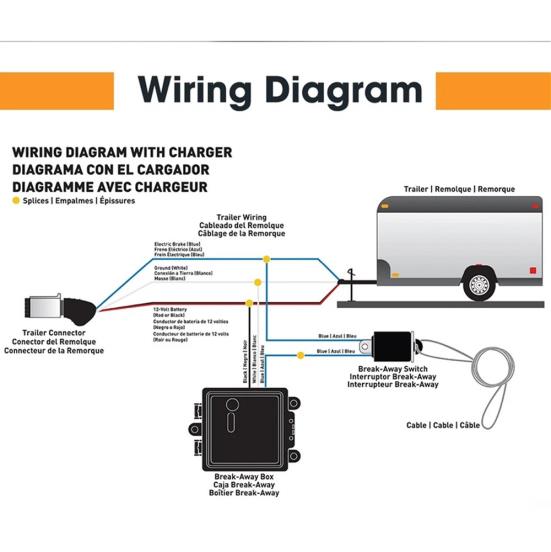

HASSLE FREE WIRING: THE TRAILER BREAK AWAY SYSTEM COMES WITH PRE-WIRED COLOUR-CODED CABLES FOR BATTERY (BLACK) BRAKES (BLUE) AND GROUND (WHITE).

EASY TO INSTALL: THE BATTERY BOX AND THE SWITCH CAN BE QUICKLY AND EASILY INSTALLED WITH SCREWS OR RIVETS.



SPECIFICATIONS

COMPATIBILITY: 1 OR 2 AXLE
INPUT (OPERATING) VOLTAGE: 12V DC

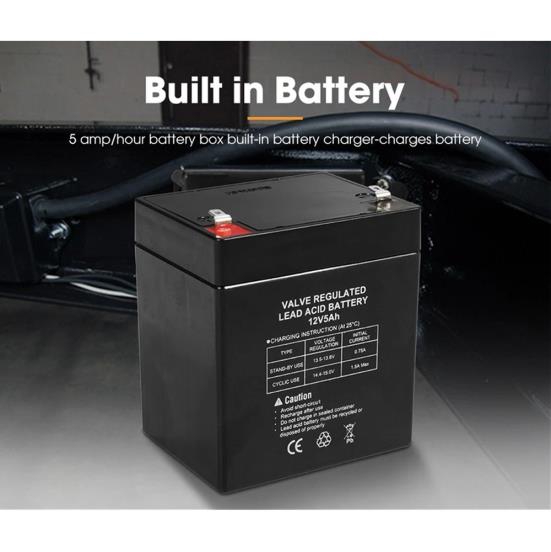

BATTERY: 12V 5AH VALVE REGULATED LEAD-ACID

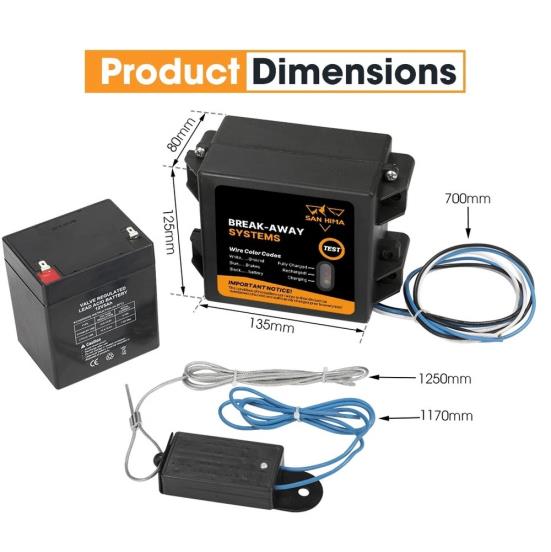

LENGTH OF CABLES ON CASE: 700MM (2.30FT)
LENGTH OF CABLES ON SWITCH: 1260MM (4.13FT)
LENGTH OF STEEL CABLE ON PIN: 540MM (1.77FT)



PACKAGE INCLUDES

1 X BREAK AWAY SYSTEM WITH BUILT IN BATTERY
1 X SWITCH WITH PIN
1 X USER MANUAL
