Product Code:
CRL190RLEDTWB

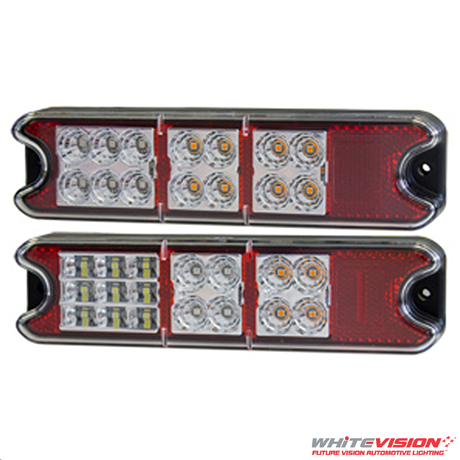

SLIMLINE COMBINATION LAMP 191X49X28MM
STOP/REAR/DIRECTION INDICATOR/REVERSE &
REFLECTOR, 9-33V DC VARIVOLT
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
CRL190 SERIES SLIMLINE COMBINATION LAMP
DESCRIPTION
FEATURING FREE FORM OPTICS IN A SMART SLIM LINE DESIGN THE CRL190LED SERIES ARE ROBUST MULTIFUNCTION LAMPS THAT CAN BE MOUNTED IN AREAS WHERE SPACE IS LIMITED. THE LAMPS USE VARIVOLT® 10-30V CIRCUIT TECHNOLOGY AND INCORPORATE STOP, TAIL, INDICATOR, REVERSE AND REFLECTOR FUNCTIONS PROVIDING AN ALL IN ONE SOLUTION. THE HIGH OUTPUT SMD LED TECHNOLOGY TOGETHER WITH THE SMART OPTIC DESIGN ENABLES THESE LAMPS TO COMPLY WITH ALL THE ABOVE FUNCTIONS WITH THEIR SLIM LINE DIMENSIONS. EXCELLENT FOR MINE BARS, TRAILER / UTE LAMPS OR COMMERCIAL / INDUSTRIAL APPLICATIONS.
FEATURES
- SLIM LINE DESIGN ? MULTIFUNCTION
- FREE FORM OPTICS
- SURFACE MOUNTING
- RETROFIT APPLICATIONS
- FULLY ADR COMPLIANT
SPECIFICATIONS
APPLICATIONS *MINEBARS *VEHICLES *FORKLIFTS *LIGHT TRUCKS *TRUCKS
FUNCTIONS STOP/REAR POSITION/DIRECTION INDICATOR/REVERSE/REFLECTOR
VOLTAGE 9-33V DC VARIVOLT®
WATTAGE REAR DIRECTION:1.5W@12V
REAR POSITION: 0.5W@12V
STOP LAMP:2.5W@12V
REVERSE:2.0W@12V
MOUNTING SURFACE MOUNT
MATERIALS POLYCARBONATE LENS ABS BODY
ENVIRONMENTAL IP67 HERMETICALLY SEALED
CABLE LENGTH 0.4M STANDARD
DIMENSIONS 191X49X28MM
ADR COMPLIANCE STOP & REAR POSITION:49/00,
REAR DIRECTION INDICATOR:6/00:CAT2A,
REAR RETRO REFLECTOR:47/00, REVERSE:1/00
|
