Product Code:
11224

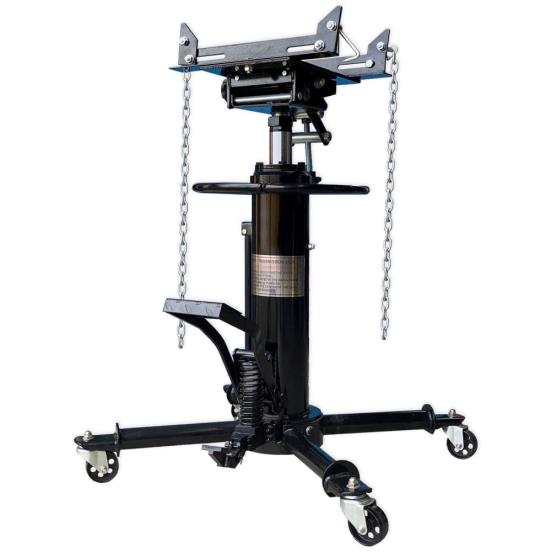

JACK TRANSMISSION 500KG DOUBLE STAGE
MIN LIFT 870MM MAX LIFT1800MM FOOT
OPPERATED & FULLY ADJUSTABLE SADDLE
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
FAMOUS WORKHORSE BRAND
- GREAT FOR GARAGES OR WORKSHOPS.
- COMPLETE WITH SAFETY CHAINS.
- 2 WAY TILT.
- BACK & FORWARD 15 DEGREES.
- SIDEWAYS 7 DEGREES.
- FOOT OPERATED PUMP.
- STEEL CASTER WHEELS 80MM X 30MM WIDE
SPECIFICATION:
- WORKING LOAD LIMIT: 500KG
- 1ST STAGE: 1000KG
- 2ND STAGE: 500KG
- MINIMUM HEIGHT: 870MM
- MAXIMUM HEIGHT: 1800MM
- DIMENSIONS: 730 X 730 X 910MM
- HYDRAULIC OIL GRADE: 64
- OIL BE FILLED: KEEP ADDING OIL UNTIL IT REACHES IT'S FULL HEIGHT
- GROUND CLEARANCE: 60MM
- WIDTH ACROSS LEGS IS 1050MM
SAFETY PRECAUTIONS -
WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.
- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTURCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
- THE JACK SHOULD BE USED ON HARD, LEVEL SURFACES
- THE WHEELS OF THE VEHICLE TO BE CHOCKED
- DO NOT PUT A PORTION OF YOUR BODY UNDER A VEHICLE SUPPORTED BY A JACK
- NO PERSON SHOULD REMAIN IN A VEHICLE THAT IS BEING JACKED
- DO NOT EXCEED THE WORKING LOAD LIMIT
OPERATING INSTRUCTIONS -
TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
BOXED DIMENSIONS: 560 X 370 X 850MM
|
