Product Code:
11298
HYDRAULIC PRESS 20 TON WITH SIDE PUMP
100MM PRESSURE GAUGE ON RAM HAS 140MM
STROKE. H FRAME STYLE. LIFT UP TABLE
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
DESCRIPTION:
SUITED TO ANY WORKSHOP OR GARAGE FOR GENERAL USE.
THE 20 TONNE GARAGE PRESS HAS A VARIETY OF USES, IDEAL FOR REMOVING AND INSTALLING BUSHES, BALL JOINTS, BEARINGS, GEARS, PULLEYS ETC. IT ALSO HAS THE ADDED FEATURE OF A SLIDING HEAD SIMPLY LOOSEN THE CLAMPING PLATE BOLTS AND THE HEAD OF THE PRESS CAN BE MOVED TO THE SIDE ALLOWING FOR THOSE OFFSET PRESSING JOBS. THE 20 TONNE HYDRAULIC RAM AND PUMP UNIT ARE ALSO EASILY REMOVED FOR USE ON OTHER PRESSING JOBS OUTSIDE YOUR WORKSHOP SUCH AS STRAIGHTENING OR BENDING. THE PRESS IS SUPPLIED WITH A PRESSURE GAUGE, TWO HEAVY DUTY PRESSING PLATES AND IS CONSTRUCTED FROM INDUSTRIAL GRADE C CHANNEL MAKING IT IDEAL FOR MECHANICS OR THE SERIOUS HOME WORKSHOP.
FEATURES:
- IDEAL FOR REMOVING AND INSTALLING - BUSHING, BALL-JOINTS, BEARINGS, GEARS, PULLEYS, ETC
- HIGH STRENGTH STEEL CONSTRUCTION
- ADJUSTABLE SLIDING HEAD UP TO 320MM TRAVEL BETWEEN THE VERTICAL POST
- H FRAME STYLE
- 20 TONNE HYDRAULIC RAM AND HAND PUMP, EASILY REMOVED FOR USE ON OTHER PRESSING JOBS

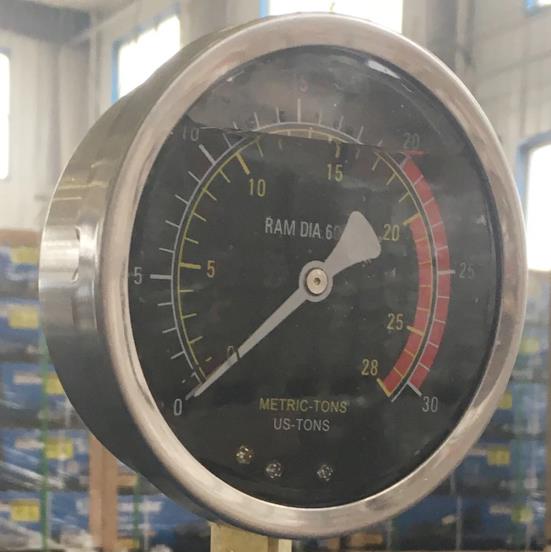

- 100MM PRESSURE GAUGE
INCLUDES:
- COMPLETE WITH BENDING PLATES
PRESSING CAPACITY: 20 TONNE
HYDRAULIC RAM OPERATION: MANUAL / HYDRAULIC
SLIDING RAM: (LEFT-RIGHT) YES
WIDTH BETWEEN FRONT POSTS: 550MM
TABLE TOP OPENING (FRONT TO BACK): 94MM
RAM TO TABLE (MAX.): 950MM
PISTON RAM STROKE: 140MM
RAM DIAMETER: Ø48MM
DIMENSIONS (LENGTH X WIDTH X HEIGHT): 830 X 690 X 1720MM
STORAGE DETAILS- 1610MM X 260MM X 110MM -60KG
700MM X 260MM X 220MM -30KG
|
