HYDRAULIC PRESS 30 TON AIR 150MM STROKE

 New and improved website Freight Free

Enquiry
HYDRAULIC PRESS 30 TON AIR 150MM STROKE
Click on image for larger photo
Product Code: 11302

HYDRAULIC PRESS 30 TON AIR & MANUAL PUMP
MAX OPENING RAM TO TABLE 940MM PRESSURE
100MM GAUGE. NITTO AIR FITTING.
Border Image Border Image
Shop Price: $999.00
Web Price: $969.03  inc tax

Availability: In Stock
Quantity:
Weight: 150 KG
Border Image Border Image
SUITED TO ANY WORKSHOP OR GARAGE FOR GENERAL USE.

FEATURES:
* IDEAL FOR REMOVING AND INSTALLING - BUSHING, BALL-JOINTS, BEARINGS, GEARS, PULLEYS, ETC

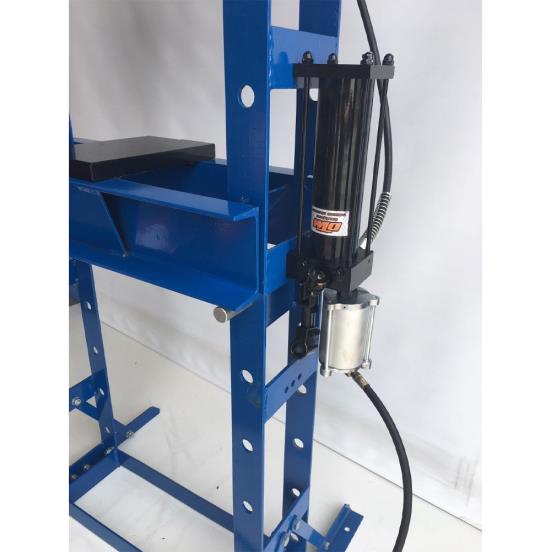

* PNEUMATIC / MANUAL HYDRAULIC OPERATION
* ADJUSTABLE SLIDING HEAD UP TO 230MM TRAVEL BETWEEN THE VERTICAL POST
* HIGH STRENGTH STEEL CONSTRUCTION
* H FRAME STYLE

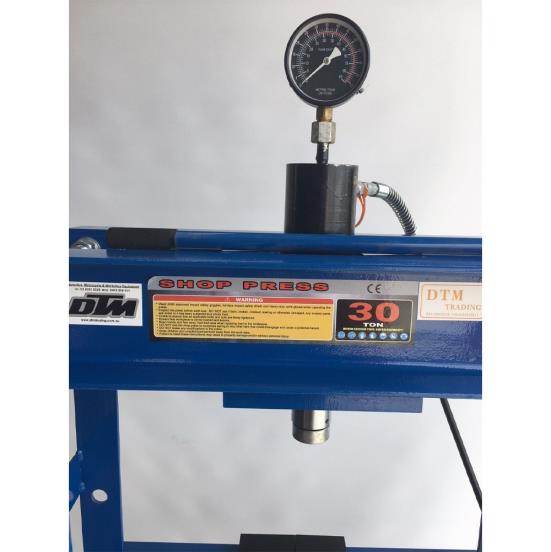

* 100MM PRESSURE GAUGE

SPECIFICATIONS:
PRESSING CAPACITY: 30TONNE
HYDRAULIC RAM OPERATION (TYPE): PNEUMATIC / HYDRAULIC OPPERATION
SLIDING RAM (LEFT-RIGHT): ( NO)
PRESSURE GAUGE ON TOP: 100MM FACE

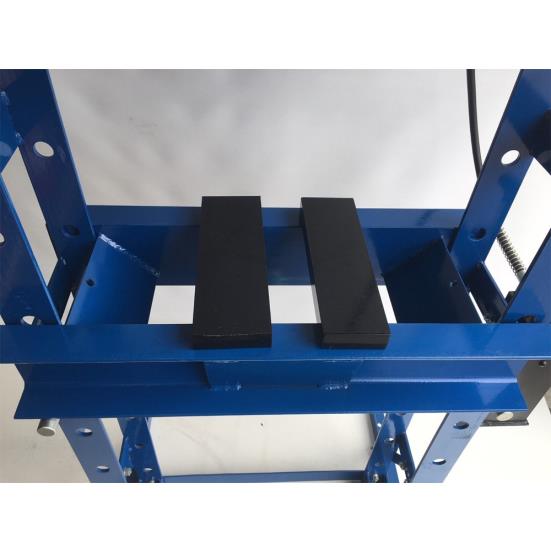

TABLE IS ADJUSTED WITH PIN SLOTS
WIDTH BETWEEN FRONT POSTS: 525MM
TABLE TOP OPENING - (FRONT TO BACK): 145MM
RAM TO TABLE (MAX.): 940MM
PISTON RAM STROKE: 150MM

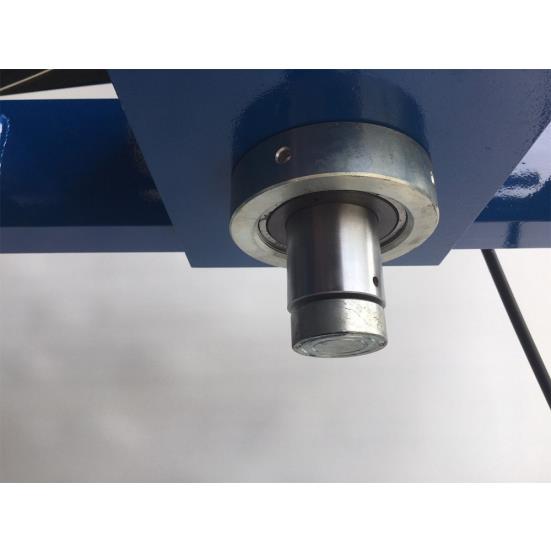

RAM DIAMETER: Ø56MM
OVERALL HEIGHT: 1800MM

STORAGE DETAILS- 1560MM X 320MM X 170MM
