Product Code:
124 SEH-40H
280L/MIN, SUCTION DEPTH-8M
400(L) X 330(W) X 450MM(H), 4 STROKE &
SINGLE CYLINDER ENGINE, MAX HEAD - 43M
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
FEATURES:

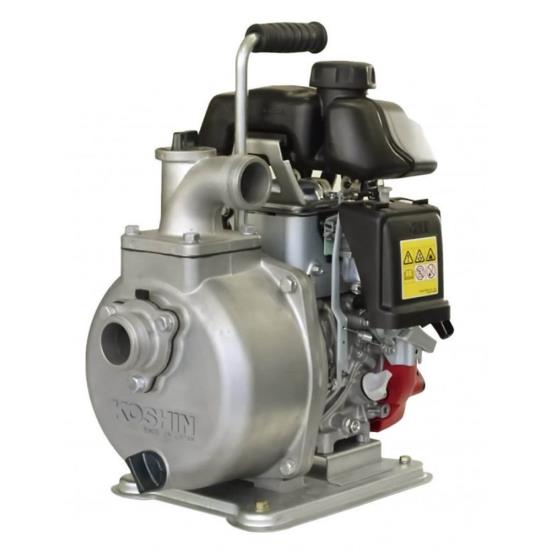

THIS JAPANESE MADE KOSHIN SEH-40H 1.5 ULTRALITE PUMP POWERED BY HONDA GXH50 FOUR STROKE PETROL ENGINE IS CAPABLE OF PRODUCING FLOWS UP TO 280 L/MIN AND A MAXIMUM HEAD OF 43 M (61 PSI). DESIGNED FOR PUMPING CLEAN WATER THE KOSHIN 1.5 ULTRALITE IS EASY TO MOVE FROM JOB TO JOB DUE TO ITS 11.5 KG ULTRALITE DESIGN. THIS PUMP IS SUITABLE FOR A WIDE VARIETY OF APPLICATIONS INCLUDING WATER TRANSFER, MOP UP FIRE FIGHTING, IRRIGATION, CAMPSITES AND HIGH PRESSURE SPRAYING.
- ENVIRONMENT FRIENDLY LOW NOISE HONDA ENGINE PRODUCES HALF THE NOISE COMPARED TO TWO-STROKE ENGINE.
- MADE IN JAPAN
- LIGHT WEIGHT WITH BUILT IN HANDLE AND BASE PLATE WITH ANTI-VIBRATION MOUNTS
SPECIFICATIONS:
- NET WEIGHT: 11.5 KG
- LIQUID CONSISTENCY: CLEAR WATER
- PRODUCT DIMENSIONS: L 400 MM X W 330 MM X H 450 MM
PUMP:
- SUCTION: 1.5" MALE BSP
- DISCHARGE: 1.5" MALE BSP
- MAX FLOW: 280 L/MIN
- MAX HEAD: 43 M
- MAX. SUCTION DEPTH: 8 M
- MATERIAL: CAST ALLOY PUMP BODY WITH CAST IRON IMPELLER AND VOLUTE
- SEALS: NBR
- MAXIMUM PARTICLE SIZE: 2 MM
ENGINE:
- TYPE: HONDA 4-STROKE & SINGLE CYLINDER
- MODEL: HONDA GXH50
- MAX. OUTPUT: 1.6 KW / 7,000 RPM
- FUEL TANK CAPACITY: 0.77 L
- ENGINE OIL CAPACITY: 0.25 L
- START: RECOIL
ACCESSORIES:
- 3 HOSE BANDS, 2 HOSE COUPLINGS, 1 STRAINER, 1 ENGINE TOOL SETS
APPLICATIONS:
- WATER TRANSFER
- IRRIGATION/ SPRAYING
|
