MINI WOOD LATHE 356MM X 470MM TURN MT2

 New and improved website Freight Free

Enquiry

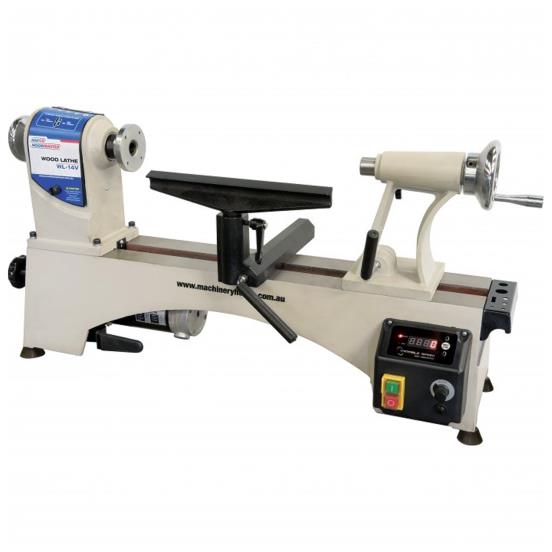

MINI WOOD LATHE 356MM X 470MM TURN MT2
Click on image for larger photo
Product Code: W385

MINI WOOD LATHE 356MM X 470MM TURN MT2
HEADSTOCK VARY SPEED 450TO 3850RPMM WITH
DIGITAL READOUT 240 VOLT 12 POSITION
Border Image Border Image
Shop Price: $629.00
Web Price: $629.00  inc tax

Availability: Out of stock
Quantity:
Weight: 34 KG
Border Image Border Image
THE WL-14V WOOD LATHE IS PERFECT FOR THE SEASONED PEN TURNER OR ENTHUSED HOBBYIST LOOKING FOR A RELIABLE & STURDY MINI LATHE; BUT IT DOES NOT STOP HERE. THE POWERFUL 0.55KW/0.75HP MOTOR IS CONTROLLED VIA AN ELECTRONIC VARIABLE SPEED DIAL THAT CERTAINLY MAKES THIS LATHE THE PERFECT OPTION FOR THE PROFESSIONAL TURNER AS WELL. THE LATHE IS ALSO CAPABLE OF REVERSING THE ROTATION, WHICH IN TURN IS IDEAL FOR SANDING AND FINISHING.

SOLID CONSTRUCTION
WELL PROVEN DESIGN. THE CRITICAL COMPONENTS OF THE WL-14V VARIABLE SPEED WOOD LATHE ARE MADE FROM CAST-IRON FOR STRENGTH, RIGIDITY AND VIBRATION REDUCTION.

SPEED RANGE
FITTED WITH A 2-STEP ELECTRONIC VARIABLE SPEED MOTOR WITH A LOW RANGE FOR SLOWER SPEEDS FROM 450RPM UP TO 1800RPM. THE HIGH SPEED RANGE FROM 900RPM UP TO 3850RPM IDEAL FOR MINIATURE TURNING WORK. THE ELECTRONIC VARIABLE SPEED ALLOWS FOR QUICK DIAL-IN OF THE CORRECT SPEED REQUIRED FOR YOUR JOB.

REVERSE OPTION
THE WL-14V HAS THE CAPABILITY, AT THE FLICK OF A SWITCH, TO CHANGE DIRECTION FROM FORWARD TO REVERSE. THIS FEATURE ENABLES THE TURNER TO SAND WITH THE LATHE IN REVERSE, ELIMINATING PROBLEM AREAS WHICH CANNOT NORMALLY BE SANDED SMOOTH IN THE FORWARD DIRECTION.

OPTIONAL BED EXTENSION SYSTEM
AN OPTIONAL 650MM BED EXTENSION CAN BE ADDED TO EXPAND THE TURNING LENGTH UP TO 1120MM. (WL-14X - W385X).

OPTIONAL LATHE STAND
OPTIONAL STAND CAN BE ADDED TO RAISE THE LATHE AT A SAFE WORKING HEIGHT AND FREEING UP VALUABLE WORK BENCH SPACE (WLS-1824 - W379).

PLEASE NOTE:
IF ADDING OPTIONAL BED EXTENSION (WL-14X - W385X) TO YOUR WOOD LATHE, YOU WILL ALSO NEED THE OPTIONAL STAND EXTENSION (WLS-1824X - W379X) TO SUIT STAND (WLS-1824 - W379)

FEATURES:
- CAST IRON CONSTRUCTION, BED, HEAD AND TAILSTOCK
- ELECTRONIC VARIABLE SPEED DIAL (450-3850RPM)
- DIGITAL READOUT SPEED DISPLAY
- 12 POSITION SPINDLE INDEXING LOCK
- DUST PROOF MAGNETIC SAFETY SWITCH
- 2 SPEED BELT CHANGE SYSTEM FOR MAXIMUM TORQUE
- 300MM & 150MM TOOL RESTS FOR THOSE SMALLER AND LARGER JOBS
- TOOL STORAGE TRAY FOR QUICK & EASY ACCESS

INCLUDES:
- 2MT LIVE CENTRE
- 2MT SPUR DRIVE CENTRE
- 150MM TOOL REST
- 300MM TOOL REST
- 80MM FACEPLATE
- DRAWBAR
- SPANNER
- HEX KEYS
- POWER LEAD
