WOOD CHIPPER PTO HYDRAULIC DRIVE 250MM

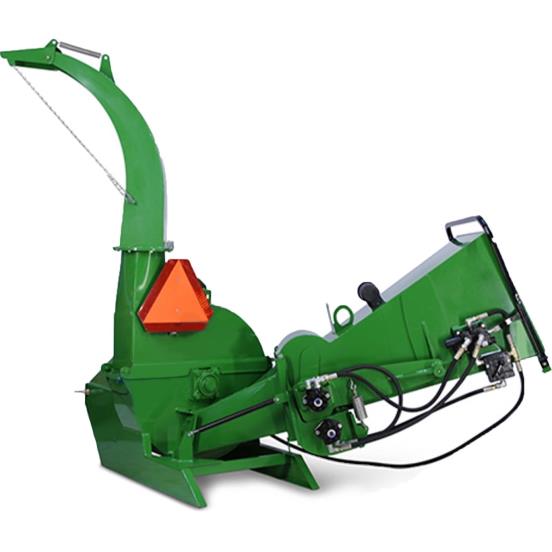

Click on image for larger photo
Product Code: BX92R

WOOD CHIPPER PTO HYDRAULIC DRIVE 250MM
9" 230MM CAPACITY. PTO DRIVEN. CHIP SIZE
6MM. TRACTOR HP REQUIRED IS 75 TO 150HP
Border Image Border Image
Shop Price: $6,699.00
Web Price: $6,699.00  inc tax

Availability: In Stock
Quantity:
Weight: 725 KG
Border Image Border Image
WOOD CHIPPER PTO HYDRAULIC DRIVE 250MM

PTO HYDRAULIC FEEDING WOOD CHIPPER - ONE OF THE BEST CHIPPERS AVAILABLE IN THE AFFORDABLE RANGE BUT STILL GOOD QUALITY.

IDEAL HORSEPOWER REQUIRED - 75 TO 100HP, 540 RPM
3 POINT LINKAGE MOUNT IS SERIES 2 WITH POWER TAKE OFF OPERATION

IDEAL HORSEPOWER REQUIRED - 75 - 100 HP

ASK OUR OPPOSITION THE FOLLOWING QUESTIONS:
- WHAT IS YOUR BLADE SIZE? OURS IS 320 X 100 X 16MM THICK CR12 STEEL MATERIAL CUTTING BLADE
- WHAT THICKNESS IS YOUR FLYWHEEL? OURS IS 35MM THICK & 940MM ROUND
- HOW MANY CUTTING BLADES WE HAVE 4 YES 4 REVERSIBLE

NOTE: THIS UNIT IS SUPPLIED WITH A POWER TAKE OFF SHAFT FOR PTO OPERATION

DRIVE SYSTEM: DIRECT DRIVE, PTO WITH SHEARBOLT
HP (HORSEPOWER): 75 - 100HP
CHIPPER CAPACITY: 230MM (9") DIAMETER (12'' SLAB) GREEN TIMBER ONLY
CHIPPER HOUSING OPENING: 10'' X 15''
ROTOR SIZE: 36"
FLYWHEEL THICKNESS: 35MM, DIAMETER: 940MM
NUMBER OF ROTOR KNIVES: 4 BLADES REVERSIBLE
BLADE SIZE: 320 X 100 X 16MM THICK CR12 STEEL CUTTING BLADES
SAWDUST MEASUREMENT THICKNESS - 6MM
KNIFE TYPE: HARDENED / REVERSIBLE
ROTOR WEIGHT: 127KG
HYDRAULIC FEEDING 3 FEED SETTINGS : HYDRAULIC FEED FORWARD/NEUTRAL & REVERSE
MOUNTING SYSTEM: 3 POINT HITCH CAT II
HOPPER OPENING: 620 X 620MM
DISCHARGE HOOD ROTATION : 360°
DISCHARGE HOOD HEIGHT: 90"
RATED RPM: 540-1000

THE BX SERIES CHIPPER IS 45 DEGREE ANGLE FEEDING
THE BX SERIES HAS HYDRAULIC FEEDING, ADJUSTABLE SPEED, STOP, FORWARD AND REVERSE FUNCTION
THE BX SERIES HAS A HEAVY DUTY SNR TYPE BEARING HOUSING BLOCK FOR EXTRA HEAVY WORK
FEEDING SYSTEM ROLLERS ARE 320MM LONG (X 2)

BEARING INFORMATION:
FLY WHEEL SHAFT BEARING 516-613 X2
ROLLER BEARING(UP) UCF210 X2
ROLLER BEARING(UNDERNEATH) UCP208 X2

SHIPPING DIMENSIONS- 1200MM X 1200MM X 1350MM
1250MM X 1200MM X 950MM
