Product Code:
ACX3322
12 VOLT,4 TERMINAL,200 AMP,H/DUTY SILVER
CONTACTS CONTINUOUS DUTY

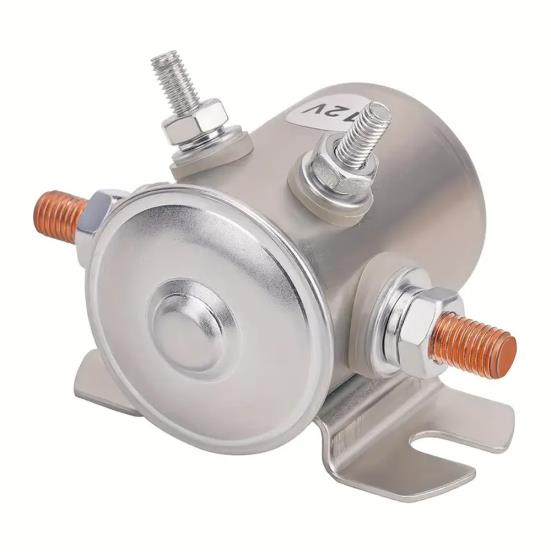

SOLENOID ISOLATOR 12VOLT 4 TERMINAL
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Item specifics
Brand: Cole Hersee
Dimensions: H 65 x D 64 x W 87
Mounting Bracket: 7mm x 10mm centre to centre 60mm
Contacts: Copper
Coil Rating: 650A make, 100A break
Coil Resistance: 17.5Ohm, 4 Studs
Amperage: 200A
Body Material: Plated Steel Housing
Earth: Insulated
Voltage: 12V
Product Description
Continuous Duty Solenoid SPST 12V 85A
4 stud, Insulated stud earth
SPST Normally open (one circuit) OFF/ON
Copper Stud terminals 5/16?-24
Insulated Coil terminals 10-32
Plated steel housing, nuts & washers Inc.
Mounting holes 8mm x 15mm, 56mm CTC
Mount with brand cap facing DOWN
Int. ratings: 10 sec ON, 30 min OFF
|
