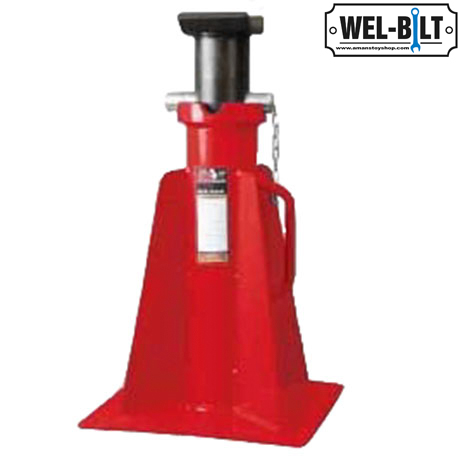

TRUCK JACK STAND 25TON TALL PIN TYPE
Click on image for larger photo
Product Code: 7001

TRUCK JACK STAND 25TONNE TALL PIN TYPE
25 TONNE. LOCKING PINWITH 45MM STAGES
MINIMUM HEIGHT:680MM, MAX HEIGHT:968MM
Border Image Border Image
Shop Price: $349.00
Web Price: $349.00  inc tax

Availability: In Stock
Quantity:
Weight: 39 KG
Border Image Border Image
25 TONNE STAND SUITABLE FOR DOZERS OR TRUCKS

NOTE: CERTIFICATION IS TO CE STANDARD !!!!

TALL TYPE WITH LOCKING PIN 45MM EACH PIN CHANGE LIFT OR DROP

WORKING HEIGHTS: LOW 680MM - HIGH 968MM

LOCKING PIN 45MM EACH PIN CHANGE LIFT OR DROP

BASE SIZE: 460MM X 460MM

AXLE MOUNT CAN BE TURNED 90 DEGREE INCREMENTS

WEIGHT IS 33KG PER STAND

- DOZERS/LOADERS, HEAVY MACHINERY
- SOLD SEPARATELY
- USED AS A PAIR WILL LIFT UP TO 50 TONNE
- HEAVY DUTY LOCKING PIN ADJUSTMENT 45MM LIFT/DROP
- HEAVY WELDED STEEL PLATE BODY
- WIDE SADDLE 80MM X 125MM
- GRAB CARRY HANDLE
- FULLY GUSSETED UPRIGHTS

IMPORTANT SAFETY INFORMATION - READ THESE SAFETY WARNINGS BEFORE OPERTION.

WARNING! FAILURE TO HEED THESE WARNINGS MAY RESULT IN LOSS OF LOAD, DAMAGE TO JACK STANDS, AND/OR JACK STAND FAILURE RESULTING IN PERSONAL INJURY OR PROPERTY DAMAGE.

WARNING! DO NOT OVERLOAD JACK STANDS BEYOND RATED CAPACITY. OVERLOADING CAN CAUSE DAMAGE TO OR FAILURE OF THE JACK STANDS.

POSITION LOAD ON CENTER OF SADDLE ONLY. ALWAYS USE STANDS IN PAIRS ON HARD LEVEL SURFACE CAPABLE OF SUSTAINING THE LOAD. USE OF STANDS ON OTHER THAN H HARD LEVEL SURFACES CAN RESULT IN STAND INSTABILITY AND POSSIBLE LOSS OF LOAD.

OPERATION:

1. REFER TO YOUR VEHICLE OWNER'S MANUAL FOR PROPER JACKING PROCEDURES. LIFE ONLY ON AREAS OF THE VEHICLES AS SPECIFIED BY VEHICLE MANUFACTURER.

2. POSITION STANDS UNDER VEHICLE AT POINTS SPECIFIED BY VEHICLE MANUFACTURER AS PROPER LOAD SUPPORT POINTS.

3. TO ADJUST STANDS: A) SCREW LOW/HIGH STAND FITTED WITH THRUST BEARING
B) REINFORCED LOW STAND WITH CONTROLLED PIN HOLES AND WITH TURNED AND OIL BLACKED SLIDING PART. REINFORCED HIGH STAND WITH HOLES WITHOUT CONTROLLED PIN.

4. CAREFULLY LOWER LOAD ONTO STANDS.

SHIPPING DIMENSIONS- 500MM X 520MM X 710MM
