Product Code:
S3213

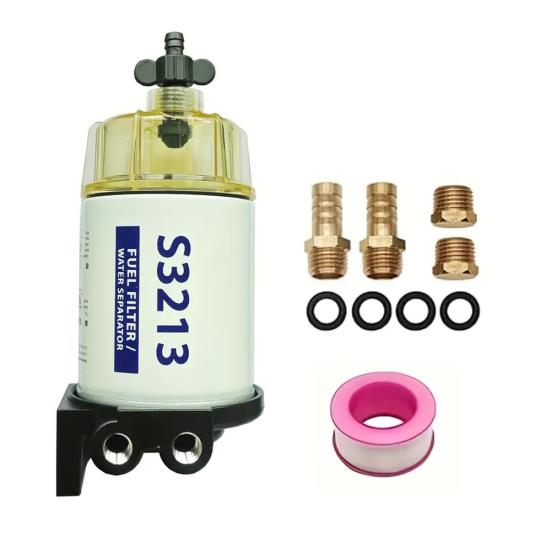

MARINE FUEL FILTER DIESELWATER SEPARATOR
FILTER WILL SUIT OUTBOARD & INBOARD BOAT
& TRUCK,TRACTOR ENGINES RACOR FILTER
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Racor - B32013 - Spin On Fuel Filter Element - With Clear Bowl - 10 Micron
10 Micron Aquabloc® Element and Bowl combination with 11/16"-16 Center Thread. Marine Gasoline FF/WS, 60 gph Flow Rate. Clear Bowl. Replaces Mercury, Mercruiser, Quicksilver, Yamaha, Suzuki, SMI, Volvo Penta, Sierra, AquaPower, Honda, Tohatsu etc.
Spin-on Series Marine Replacement Cartridge Filter Elements are compatible with Racor?s line of Marine Spin-on Series fuel filter / water separator assemblies. The elements exhibit exceptional removal efficiency of both bulk and emulsified water, low restriction of fuel flow, and high dirt-holding capacity. Their unique design makes them capable of performing in modern marine diesel and gasoline applications, where harsh conditions can cause tiny particles of dirt and water to score and erode precision components, leading to engine damage and increased downtime.
The filter body is protected with a durable electrostatically-applied powder coating for superior corrosion resistance. The spin-on filter design is simple to service and features a reusable clear engineering plastic or metal contaminant collection bowl with a self-venting drain for draining out collected contaminants and water.
All Spin-on Series marine replacement cartridge filter elements utilize Racor?s high-efficiency Aquabloc® engineered media. Aquabloc® is a blend of high-grade cellulose compounded with resins and a special chemical treatment. It incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rustproof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel, which causes the water to gather into large droplets that then fall into the fuel filter?s collection bowl.
Aquabloc® elements repel water and remove solid contaminants from fuel at 98% efficiency of their micron rating. To meet the unique requirements of customers? engines, three different micron rating cartridges are available for purchase, including:
30 micron ? Ideally suited as a pre-filter to protect downstream filters from excessive contamination. Extends the life of on-engine filters.
10 micron - Captures more contaminants than 30 micron elements, and is more effective at stopping water. Extends the life of the entire fuel system.
2 micron ? Provides maximum water removal and filtration and is capable of protecting all modern injection systems, while greatly extending the life of difficult-to-service on-engine filters.
Technical Specifications
Series: B32013 OEM Spin-On
UL Certification: No
Micron Rating: 98% @ 10 Micron
Outside Diameter: 3.8 in / 97 mm
Height: 7.1 in / 180 mm
Product Series: Marine Gasoline Spin-on FF/WS
Brand: Racor
Filter Element Type: 10 Micron Aquabloc® Spin-on with clear bowl
Connection Type: 11/16?-16, 3.125" Female Bottom Threads
Flow Direction: Outside In
Related Parts: S3213 Replacement Element
|
