Product Code:
NITTO25KIT

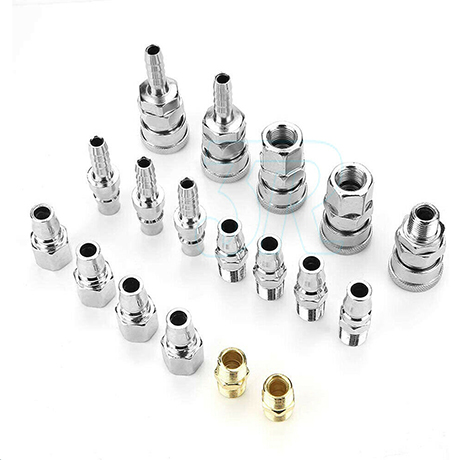

AIR FITTING ASSORTMENT 25 PIECE NITTO
EQUIVLENT 1/4 THREAD & HOSE 9 COUPLINGS
12 TAILS & 4 BRASS 1/8 MALE THREADS
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
- 4 X BSP FEMALE CONNECTOR
- 4 X BSP BARBED FITTINGS
- 1 X BSP MALE
- 4 X BSP MALE CONNECTOR
- 4 X BSP FEMALE CONNECTOR
- 4 X8MM BSP BARB CONNECTOR
- 4 X 8MM BSP MAIL PLUG
BRAND NEW, TOP QUALITY PRODUCT
25PCS AIR HOSE FITTINGS BLACK
SPECIFICATION:
- TYPE: AIR HOSE FITTINGS
- SUB-TYPE: QUICK COUPLING
- MALE INTERNAL THREAD QUICK CONNECTOR: LENGTH 39.3MM
- FEMALE FEMALE QUICK CONNECTOR: LENGTH 45.29MM
- MALE EXTERNAL THREAD: LENGTH 40.97MM
- AIR COUPLER MATERIAL: STAINLESS STEEL
- MAIL PLUG MATERIAL: COPPER
- TEMPERATURE RESISTANCE: 0-60 (C°)
- PRESSURE RESISTANCE: (1MPA)
- COLOR: METAL
- USING FLUID: AIR
- MODEL: 20PCS AIR HOSE CONNECTOR
- PRODUCT MODEL: SH+PH/SM+PM/SF+PF
- SUITABLE HOSE: PU PIPE, NYLON PIPE
FEATURE:
- PNEUMATIC QUICK JOINT FITTINGS ARE FAST JOINTS MAINLY USED FOR AIR PIPING AND PNEUMATIC TOOLS, CAN CONNECT OR DISCONNECT PIPELINES WITHOUT TOOLS.
- WITH HIGH PERFORMANCE AND RELIABILITY. FAST AND EASY TO INSTALL, YOU DON'T NEED OTHER TOOLS.
- AIR FITTING KIT FITS AIR TOOLS, AIR COMPRESSOR, AIR NAILER, AIR BLOW GUN, PRESSURE WASHER, AIR HOSE.
- THESE REPLACEMENT COUPLERS PROVIDE SECURE AND QUICK FITTINGS, EASY TO CONNECT AND DISCONNECT.
- PREVENT AIR FROM ESCAPING WHEN CHANGING BETWEEN TOO
|
