Product Code:
CRPLUS
CODE DIAGNOSTIC SCANNER LCD EOBD/OBD11
READ DTCS, CLEAR DTCS & ENGINE-TRANS-ABS
AIRBAG-OIL RESET-DPF BLOCK FREE UPDATES
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
CODE DIAGNOSTIC READER 4" TFT LCD SCREEN
CODE DIAGNOSTIC SCANNER LCD EOBD/OBD11

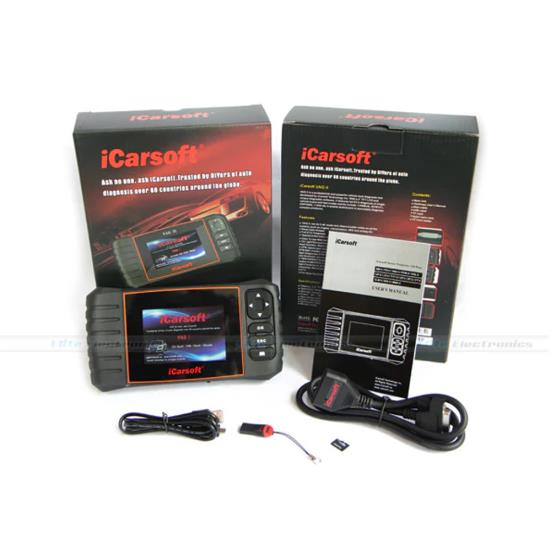

CONTENTS:
MAIN UNIT
HARDCOPY USER?S MANUAL
MAIN CABLE
USB CABLE
TF CARD
NYLON CARRY CASE
TF CARD READER
FEATURES & BENEFITS:
OBDII DIAGNOSTIC FULL FUNCTION
MULTIPLE CAR MODELS (COVERING OVER 40 PREVAILING MODELS FROM ASIA, AMERICA AND EUROPE).
SUPPORT 4 SYSTEMS: ENGINE, TRANSMISSION, ABS, AND AIRBAG.
BASIC DIAGNOSTIC FUNCTIONS: READ DTCS, CLEAR DTCS, AND READ DATA STREAM
SUPPORT DTCS HELP, DATA STREAM WAVE DISPLAY, HISTORY DATA RECORD AND REPLAY
ONLINE UPGRADE, YOU CAN DOWNLOAD THE LATEST VERSION ANYTIME ANYWHERE.
AUTO MODULE SEARCH
ENHANCED OBDII MODE 6
SUPPORTS VEHICLES 1996 & NEWER ( OBDII & CAN )
RETRIEVES GENERIC P0, P2, P3 & U0 CODES,
ALONG WITH MANUFACTURER SPECIFIC P1, P3 & U1 CODES BOTH PERMANENT & PENDING
READ & CLEAR CHECK ENGINE LIGHTS
TURN OFF MIL & RESET MONITORS
DISPLAYS DTC DEFINITIONS RIGHT ON THE SCREEN
VIEW FREEZE FRAME DATA & I/M READINESS MONITOR STATUS
DISPLAY LIVE PCM DATA STREAM & O2 SENSOR TEST DATA
GRAPH, RECORD & REPLAY DATA IN FULL COLOR
RESETS OIL SERVICE LIGHT
BRAKE PADS RESET
STEERING ANGLE SENSOR CALIBRATION
CODE CAUSE / SOLUTION TIPS GUIDE USERS TO THE ROOT CAUSE OF TROUBLE CODES FASTER, SAVING DIAGNOSIS AND REPAIR TIME
RETRIEVES VEHICLE INFORMATION ( VIN, CIN AND CVN )
TWELVE SUPER ADVANTAGES:
1. READ & CLEAR DTCS
2. READ DATA STREAM
3. FULL ECU DIAGNOSIS
4. DIAGNOSE MULTI-BRAND MODELS EQUIPPED WITH OBDII-16 DLC
5. EASY TO USE WITH METAL DOME KEYS
6. OIL LIGHT/SERVICE RESET
7.BRAKE PADS RESET
8.STEERING ANGLE SENSOR CALIBRATION
9. 4.0" TFT LCD WITH 480 * 320 PIXELS
10. USB 2.0 HIGH SPEED UPGRADE
11. UPGRADE VIA TF CARD
12. SUPPORT MULTI-LANGUAGE
AND FOR MORE, REFER TO USER'S MANUAL.
SPECIFICATIONS:
DISPLAY: 4.0" TFT LCD , WITH 480 * 320 PIXELS
OPERATION TEMPERATURE: 0C -- 50C
STORAGE TEMPERATURE: -20C -- 70C
POWER: 9V -- 18V
OPERATING CURRENT:150MA@12V (TYPICAL)
POWER CONSUMPTION:1.8W (TYPICAL)
DIMENSION: 205MM*110MM*31MM (LXWXH)
OBDII FUNCTION:
1. READ CODES
2. ERASE CODES
3. I/M READINESS -- I/M READINESS INDICATES WHETHER OR NOT THE VARIOUS EMISSIONS-RELATED SYSTEMS ON THE VEHICLE ARE OPERATING PROPERLY AND ARE READY FOR INSPECTION AND MAINTENANCE TESTING.
4. DATA STREAM
5. FREEZE FRAME -- WHEN AN EMISSION-RELATED FAULT OCCURS, CERTAIN VEHICLE CONDITIONS ARE RECORDED BY
THE ON-BOARD COMPUTER. THIS INFORMATION IS REFERRED TO AS FREEZE FRAME DATA. FREEZE DATA IS A SNAPSHOT OF
THE OPERATING CONDITIONS AT THE TIME OF AN EMISSION-RELATED FAULT.
6. O2 SENSOR TEST -- THIS OPTION ALLOWS RETRIEVAL AND VIEWING OF O2 SENSOR TEST RESULTS FOR MOST RECENTLY
PERFORMED TESTS FROM THE VEHICLE?S ON-BOARD COMPUTER.
7. ON-BOARD MONITORING -- THIS FUNCTION CAN BE UTILIZED TO READ THE RESULTS OF ON-BOARD DIAGNOSTIC MONITORING
TESTS FOR SPECIFIC COMPONENTS/SYSTEMS.
8. EVAP SYSTEM TEST -- THE EVAP TEST FUNCTION LETS YOU INITIATE A LEAK TEST FOR THE VEHICLE'S EVAP SYSTEM.
BEFORE USING THE SYSTEM TEST FUNCTION, REFER TO THE VEHICLE?S SERVICE REPAIR MANUAL TO DETERMINE THE PROCEDURES
NECESSARY TO STOP THE TEST.
9. VEHICLE INFORMATION -- THE OPTION DISPLAYS THE VEHICLE IDENTIFICATION NUMBER (VIN), THE CALIBRATION VERIFICATION
NUMBER (CVN), AND OTHER INFORMATION OF THE TEST VEHICLE.
|
