SANDBLASTER DUAL STATION CABINET 2 PEDAL
Click on image for larger photo
Product Code: XH-SBC1200

SANDBLASTER DUAL STATION CABINET 2 PEDAL
BIG 1200 LITRES STEEL HOUSING. 32 LITRES
CAPACITY. 60-125PSI. 2 FOOT PEDALS
Border Image Border Image
Shop Price: $3,699.00
Web Price: $3,699.00  inc tax

Availability: In Stock
Quantity:
Weight: 250 KG
Border Image Border Image
WELBILT BRAND BIG 1200 LITRE CAPACITY INDUSTRIAL STANDARD SAND BLASTER CABINET

THIS SANDBLASTER UNIT IS THE LARGEST CABINET TYPE UNIT AVAILABLE. THIS UNIT HAS 2 FOOT OPERATING PEDALS THAT ALLOWS 2 PEOPLE TO BLAST AT THE SAME TIME, HAVING 2 SEPARATE DOORS WITH GAS STRUT SUPPORTS ALLOWS LARGER ITEMS TO BE WORKED ON WITHOUT HAVING TO BE MOVED AROUND.
THE PHYSICAL SIZE OF THIS UNIT OVERALL IS 1800MM WIDE(WITH DUST COLLECTORS) 1390MM DEEP X 1836MM HIGH X 2080MM MAX HEIGHT WITH THE DOORS OPEN.

- 1200 LITRES
- 6 MONTHS WARRANTY
- 2 HAND HELD SIPHON BLAST GUNS NOZZLES ARE 6MM & 7MM
- NATURAL RUBBER/VYNIL BLAST GLOVES 600MM LONG 2 PAIRS
- HEAVY PERFORATED STEEL FLOORING FOR SEPARATING LARGE PARTICLES
- POWDER COATED INSIDE AND OUT
- EXTRA RUGGED HEAVY DUTY PRODUCTION TYPE FOOT VALVE ASSEMBLIES (2 UNITS - ONE EACH SIDE)
- BUILT TO LAST HEAVY STEEL HOUSING
- HIGH PRODUCTION BRASS FLOW VALVE
- 2 AIR PRESSURE REGULATORS & GAUGE PANEL FOR INDEPENDENT CONTROL
- MEDIA METERING VALVE ELIMINATES TYPICAL SUCTION PICK UP
- EXTRA BRIGHT EXTERNAL FLUORESCENT LIGHTING SYSTEM

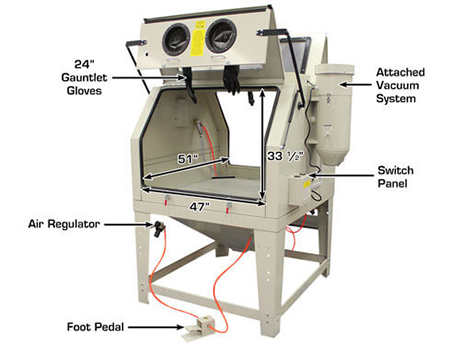

- WORKING SPACE: 1300 X 1180 X 850MM
- AIR PSI REQUIREMENT: 60 - 110PSI
- AIR REQUIREMENTS SINGLE OPPERATOR 15 TO 20CFM DUAL OPERATOR 30 TO 40CFM
- SAND LOADING CAPACITY: 32 LITRES
- WINDOW SIZE 698MM X 320MM
- GAS STRUTS ON EACH DOOR FOR EASY OPENING
- HEAVY GRATE ALLOWS BLASTING OF HEAVY ITEMS UP TO 220KG

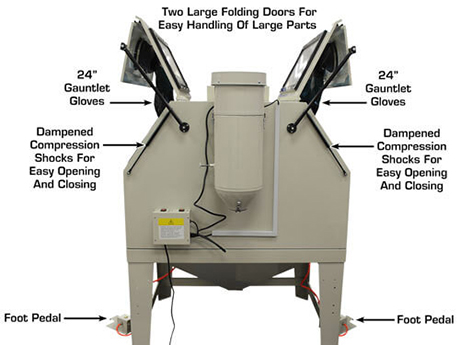

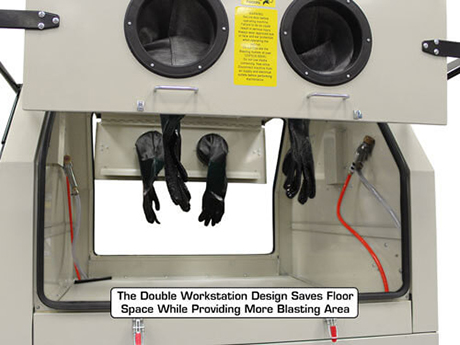

THE XH-SBC1200 SANDBLAST CABINET FEATURES TWO LARGE FOLDING DOORS (ONE IN THE FRONT AND ONE IN THE BACK) FOR EASY LOADING AND UNLOADING OF LARGE PARTS. THE XH-SBC 1200 HAS TWO FOOT OPERATED BLASTING GUNS LOCATED ON EACH SIDE OF THE BLAST CABINET. MOST SANDBLAST CABINETS THAT CAN BE OPERATED BY TWO PEOPLE ARE LONG AND NARROW WITH THE ACCESS PORTS NEXT TO EACH OTHER ON THE FRONT SIDE. THE XH-SBC1200 IS EXTRA WIDE SO THAT TWO OPERATORS CAN BLAST FROM EITHER SIDE. THIS DESIGN SAVES VALUABLE FLOOR SPACE AND ALLOWS THE OPERATOR TO BLAST ALL PARTS OF A LARGE HEAVY ITEM WITHOUT MOVING IT AROUND INSIDE THE BLAST CABINET.

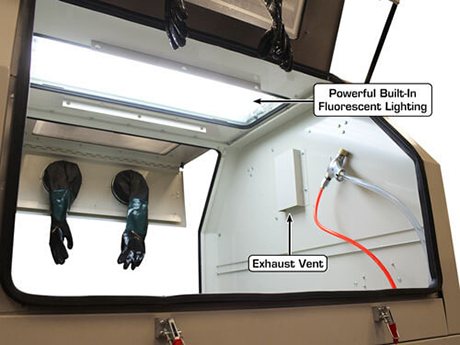

THE XH-SBC 1200 HAS EXCELLENT LIGHTING AND A VERY POWERFUL VACUUM SYSTEM. THE LOWER HOPPER STORES THE ABRASIVE MATERIAL FOR USE AND REUSE AND OPENS EASILY TO ALLOW EASY REMOVAL OF ANY MEDIA.

THE XH-SBC1200 IS ALWAYS READY WHEN YOU ARE. THE CABINET STAYS CONNECTED TO YOUR AIR SUPPLY AND IS READY FOR IMMEDIATE USE WHEN YOU STEP ON THE PEDAL. USE YOUR NEW SANDBLAST CABINET TO REMOVE SCALE OR HEAVY RUST FROM AUTOMOTIVE PARTS, CLEAN UP RUSTY TOOLS, ETCH GLASS, OR ANY OTHER SPECIAL APPLICATION.

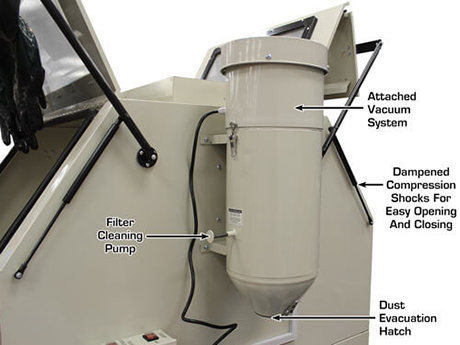

THE XH-SBC1200 INCORPORATES A POWERFUL VACUUM SYSTEM THAT KEEPS THE WORK AREA FREE OF "FLOATING" RUST AND USED GLASS BEAD SHELLS. AFTER THE GLASS BEAD ,SLAMS AGAINST THE SURFACE TO BE CLEANED, A PORTION OF THE BEAD IS "DESTROYED" AND BECOMES ALMOST WEIGHTLESS. THE VACUUM SYSTEM REMOVES THE "FLOATING" RUST PARTICLES AND THE "USED UP" GLASS BEAD SHELL WHILE THE GOOD BEADS FALL INTO THE HOPPER BELOW THE WORK SURFACE.

THE XH-SBC1200 USES A FOOT PEDAL TO CONTROL THE SPEED AND FLOW OF ABRASIVES FROM THE AIR GUN. THE FOOT PEDAL ALLOWS THE OPERATOR TO JUST HOLD AND POINT THE GUN RATHER THAN THE NEED TO PULL THE TRIGGER OF THE SANDBLAST GUN WHICH CAN BE VERY TIRESOME.

A FULL LINE OF PARTS AND ACCESSORIES FOR OUR SANDBLAST CABINETS. WE STOCK REPLACEMENT GLOVES, VACUUM MEDIA FILTERS, PEEL-OFF LENSES, BEAD BLAST GUNS AND REPLACEMENT NOZZLES ALONG WITH MANY OTHER WEARABLE SANDBLAST CABINET PARTS.

RECOMMENDED ABRASIVES:

ALUMINIUM OXIDE
GLASS BEAD
STEEL GRIT
GARNET
PLASTIC GRIT
MOST OTHER DRY ABRASIVES
