Product Code:
44505

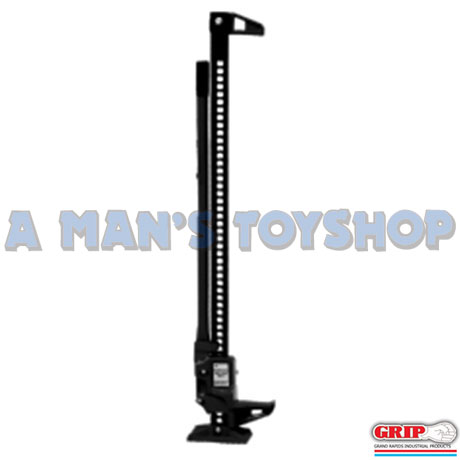

JACK HIGH LIFT JACKALL 1750KG 90MM TO
1085MM LIFTING VEHICLES, 4WDS ETC.16KG
WORKING LOAD 1750KG LIFT 1200MM HIGH
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
SPECIFICATIONS:
WORKING LOAD LIMIT -1750KGS.
MINIMUM LOAD LIMIT -750KGS.
MINIMUM HEIGHT -154MM.
MAXIMUM HEIGHT-1071MM.
COMPLIES WITH AUSTRALIAN STANDARD.
SAFETY PRECAUTIONS
1. BE SURE BASE OF JACK IS ON FIRM AND LEVEL GROUND.
2. BE SURE JACK WILL NOT SLIP AFTER LOAD IS APPLIED.
3. BE SURE LIFTIING ARM IS FULLY UNDER LOAD IS APPLIED.
4. BE SURE THE LOAD IS STABILIZED BEFORE LIFTING SO THAT IT WILL NOT SHIFT WHEN LIFTING OR LOWERING.
5. DO NOT WORK UNDER VEHICLE AFTER LIFTING UNLESS YOU HAVE JACKSTANDS SUPPORTING THE VEHICLE.
6. DO NOT PUSH LOAD OF THE JACK; LOWER CAREFULLY.
7. DO NOT USE HANDLE EXTENSIONS.
8. DO NOT CARRY JACK BY HANDLE.
OPERATIONS INSTRUCTIONS
A) TO RAISE A LOAD
1. FOLLOWING ALL SAFETY PRECAUTIONS, PLACE THE FOOT OF THE JACK BENEATH THE LOAD. LIFT THE REVERSING LATCH (20) TO IT'S "UP" POSITION AND ENSURE IT IS LOCKED IN PLACE, WITH THE INDENTATION IN THE LATCH, FIRMLY ENGAGED IN THE NOTCH ON THE REVERSING SWITCH (18) - REFER TO FIG. 1. JACK UP THE NOSE UNTIL IT COMES INTO CONTACT WITH THE LOAD AT THE DESIRED POINT OF LIFT. PAUSE AT THIS STAGE AND CHECK TO ENSURE THERE ARE NO OBSTACLES TO A CLEAN LIFT.
2. PULL DOWN FIRMLY AND EVENLY ON THE HANDLE AND OBSERVE THE LOAD RISING. AS THE HANDLE IS PULLED DOWN, YOU WILL HEAR THE CLIMBING PIN (15) CLICK INTO PLACE AS IT LOCATES IN A HOLE IN THE STEEL BAR (3). AT THIS POINT, RELAX THE HANDLE ALLOWING THE PIN (15) TO TAKE THE LOAD, RAISE THE HANDLE TO THE TOP OF ITS STROKE TO TAKE A FRESH PURCHASE, AND PUMP THE HANDLE ONCE AGAIN.
IMPORTANT:
1. DO NOT USE EXTENSIONS ON THE HANDLE.
2. ALWAYS KEEP FIRM HOLD ON THE HANDLE.
B) TO LOWER THE LOAD
IMPORTANT: THE JACK MUST BE LOADED WITH A MINIMUM OF 50KG (110LBS) TO LOWER STEP BY STEP, OTHERWISE THE LIFTING NOSE WILL DROP.
TAKING ALL NECESSARY PRECAUTIONS, TAKE THE LOAD WITH THE JACK, (I.E. JACK THE LOAD UP SLIGHTLY), AND ENSURING THE HANDLE IS IN THE FULL UPRIGHT POSTITION, TRIP THE REVERSING LATCH (20), SO THAT IT IS IN THE "DOWN" POSITION, I.E. THE INDENTATION ON THE LATCH, BECOMES DISENGAGED FROM THE NOCHT ON H\THE REVERSING SWITCH (SEE FIG.2). KEEPING A FIRM GRIP ON THE HANDLE, PUMP IT AS YOU WOULD FOR 'RAISING A LOAD'.
|
